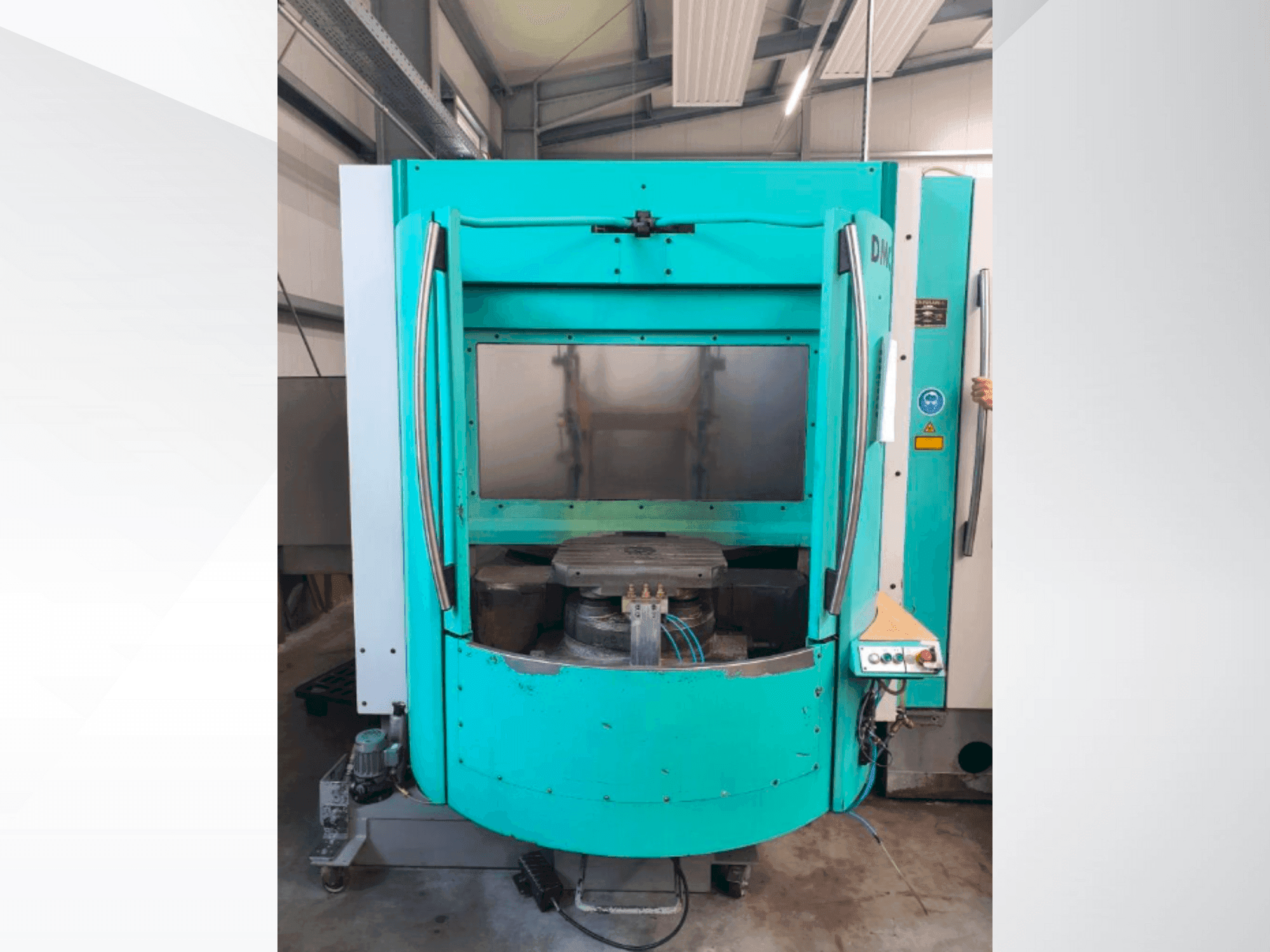

Front view of DECKEL MAHO DMC 60H hi-dyn  machine

DECKEL MAHO - DMC 60H hi-dynDE-MIL-DEC-2000-00005

35,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis DECKEL MAHO DMC 60H hi-dyn was manufactured in 2000. It features a Siemens Sinumerik 840D control, a spindle speed up to 8000 rpm, and a 90-position tool magazine. The machine includes a pallet changer with 4 storage locations and a rapid traverse rate of 60 m/min. Ideal for high precision horizontal machining. Contact us for more information about this machine.

Overview

  • brand: DECKEL MAHO
  • year: 2000
  • MODEL: DMC 60H hi-dyn
  • production hours: 48804
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Immedately
  • control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 60H hi-dyn

General Data

  • Measurements width: 7000 MM
  • Measurements depth: 5000 MM
  • Machine weight: 3400 KG

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik 840D

Main drive

  • Spindle speed range: 8000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 600 MM
  • X-AXIS Working Feed: 60000 mm/min
  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Movement: 560 MM
  • Y-AXIS Working Feed: 60000 mm/min
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Movement: 560 MM
  • Z-AXIS Working Feed: 60000 mm/min
  • Z-AXIS Rapid traverse: 60 m/min

Table

  • Table load: 350 kg

Tools

  • Slots in storage: 90
  • Max weight: 10 kg
  • Max tool diameter: 80 mm
  • Max tool length: 350 mm
  • Type of tool holder: DIN 69871-SK40

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Coolant Type/Content: Emulsion (internal & external) / approx. 1100L
    • - Coolant Unit: Knoll with drum filter 30, 40, 50 bar via M-command
    • - Machine Accuracy: VDI / DGQ 3441
    • - Renishaw Measuring Probe
    • - Tool Breakage Detection
    • - Drum filter
    • - Pallet Sequential Operation
    • - Enclosed Work Area Enclosure
    • - Network Connection
    • - Technical Documents and Layout Plan available

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Torque 100% / 40% duty cycle: 124 nm
        • - Motor power 100% / 40% duty cycle: 13 kw
        • - B-axis (360 x 0. 001°) 60 rpm
        • - Table/pallet size (lxw): 6 pallets 500x400 mm
        • - Table/pallet type: t-slots according to din 55201
        • - Pallet changer / setup station / storage location: yes / yes / yes (4 storage locations)
        • - Pallet change / tool change time: 6 seconds / 5 seconds
        • - Tool magazine type: chain magazine
        • - Total power requirement: 20 kw
        • - Hydraulic system motor and pump replaced
      • Qualitative Machine Benefits:
        • - Some hydraulic and pneumatic hoses replaced
        • - Lt module replaced in the control cabinet
        • - Drum on the knoll system replaced
        • - Regular maintenance performed
        • - High operational efficiency with rapid pallet and tool change times
        • - Comprehensive maintenance records ensuring reliability and accuracy
        • - Equipped with a pallet storage space (4 spaces)
        • - Enhanced safety features with accident prevention regulations compliance

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
