Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DECKEL MAHO - DMC 64 V linearES-MIL-DEC-2004-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools

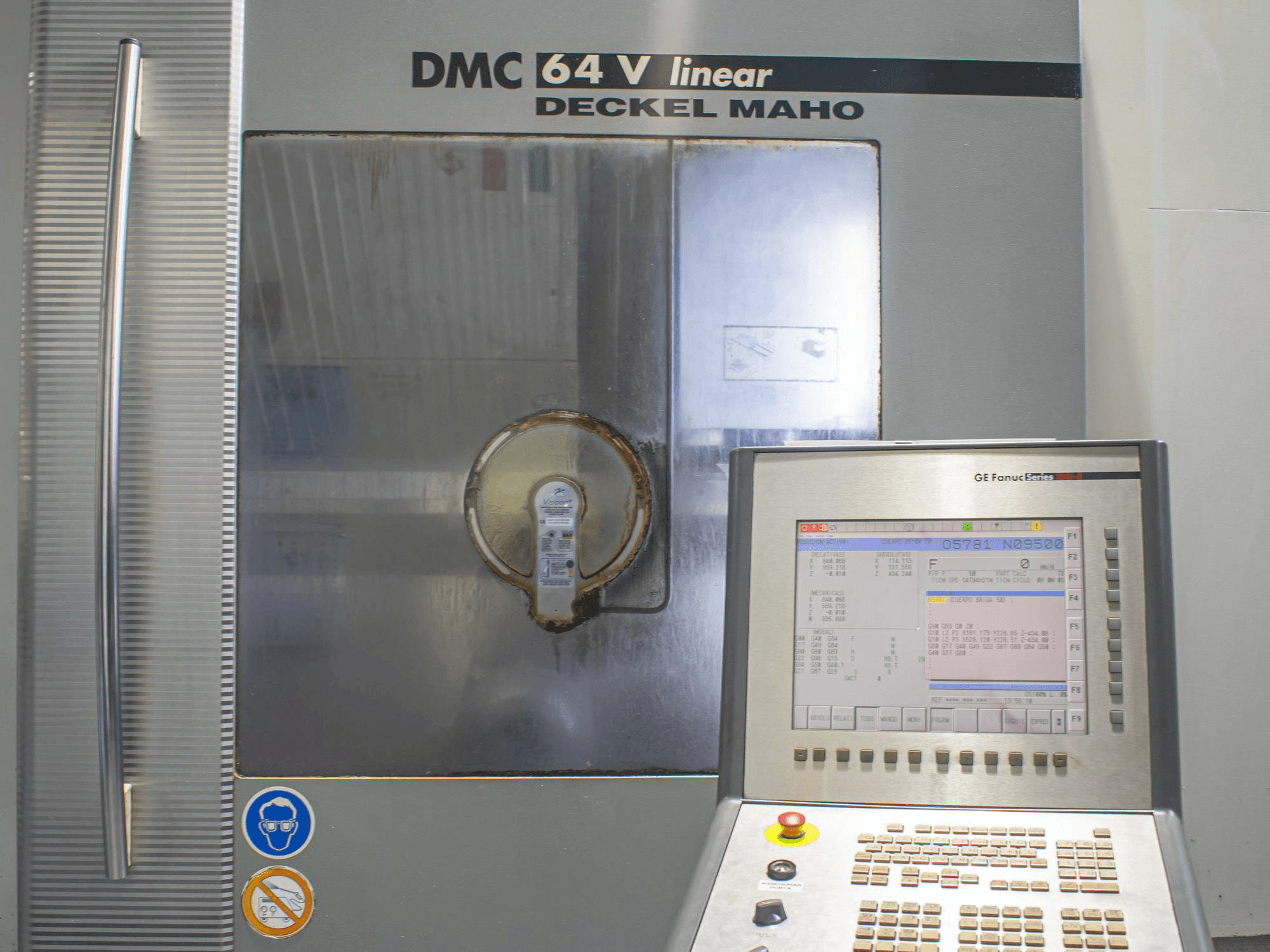

- DECKEL MAHO DMC 64 V linear Vertical Machining Center
This DECKEL MAHO DMC 64 V linear Vertical Machining Center, produced in Germany in the year 2004. It is equipped with a Fanuc Series 180i-B control unit. This machine can work with a spindle speed range up to 12000 rpm. It includes 2 fourth axes TSUDAKOMA brand, a bloom brand laser tool meter, and an internal cooling with 20bar and additional 700l refrigerant tank. It presents good conditions.
Overview
- brand: DECKEL MAHO
- year: 2004
- MODEL: DMC 64 V linear
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DECKEL MAHO DMC 64 V linear
Control Unit
- Model: Series 180i-B
- CNC main language: Spain
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
Movement
- X-AXIS Movement: 640 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 500 mm
Workpiece
- Workpiece weight: 600 kg
Table
- Outer length: 850 mm
- Outer width: 630 mm
- TSlots size: 5
Tools
- Slots in storage: 30
- Max weight: 7 kg
- Max tool diameter: 140 mm
- Max tool length: 300 mm
- Type of tool holder: BT40
Additional Information
- Qualitative Machine Benefits:
- - Good status
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
