DECKEL MAHO DMU 50 M

Photo Gallery

DECKEL MAHO - DMU 50 MDE-MIL-DEC-2003-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMU 50 M For Sale | gindumac.com

Show in original language

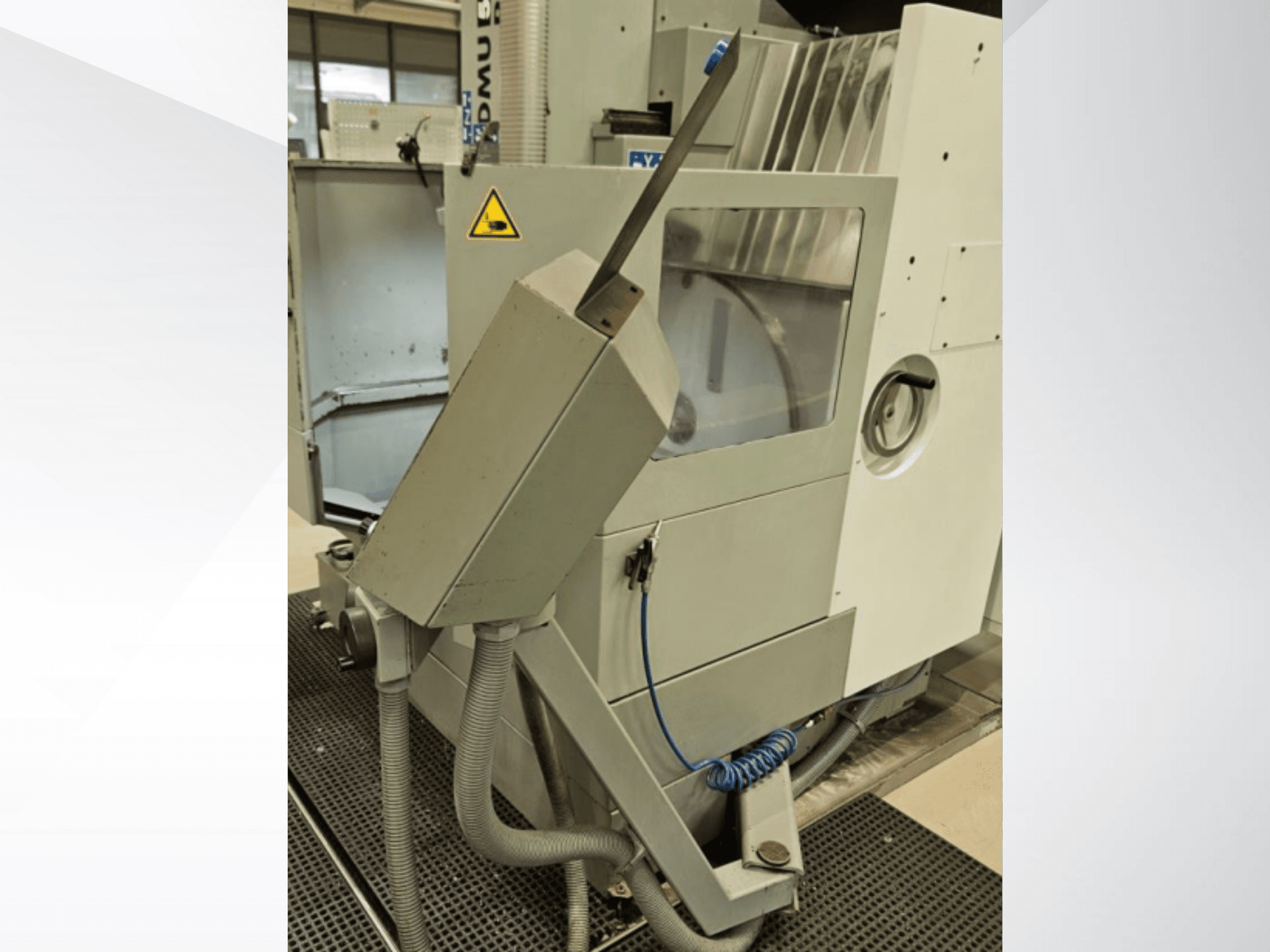

This 3-axis DECKEL MAHO DMU 50 M was manufactured in 2003. It features a Heidenhain TNC 310 control, electronic handwheel HR 150, and a main drive speed of 4,500 min-1. The machine offers a rapid traverse of 5 m/min and a working range of 500 x 400 x 400 mm. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMU 50 M machine we have for sale. Contact us for more information.

Overview

brand: DECKEL MAHO
year: 2003
MODEL: DMU 50 M
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50 M

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 310

Dimensions

Machine Height: 2540 mm
Machine Weight: 2800 kg
Table Load: 200 kg

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Speed: 4500 RPM
Taper Size: SK 40

Additional Information

Electronic handwheel: HR 150
Feed drive (X/Y/Z): infinitely variable up to 5,000 mm/min
Rapid traverse: 5 m/min
Travel measuring system: X/Y/Z resolution 0.001 mm
Positioning tolerance: 0.010 mm
Work table: rotary table, clamping surface 700 x 500 mm
T-slots: pitch 63 mm / size 14 H7
Centering hole: diameter 30 mm H6
Table swivel range: +95° / -10°
Quantity available: 4 units

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
