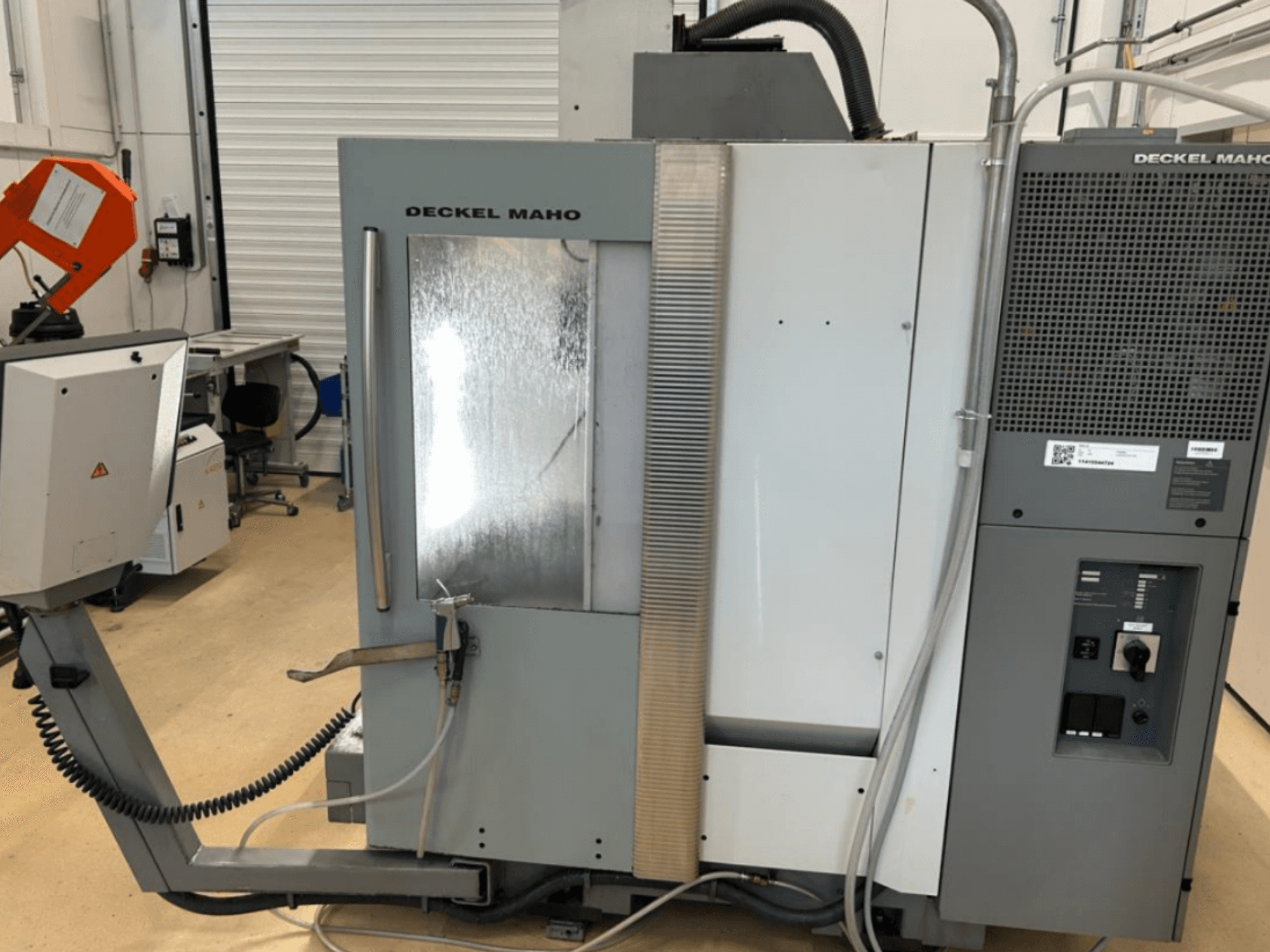

DECKEL MAHO - DMU 50DE-MIL-DEC-2005-00007

- Table Type: Digital swivel rotary table

- Table Dimensions: Diameter 630 mm x 500 mm

- Max. Table Load: 200 kg

- Swivel Range: 115 degrees (-5 / +110)

- Table Features: Digital drives, hydraulic clamping (positioning mode only), electronic angle display, plane transformation

- Spindle Speed Range: 20 - 10,000 rpm (steplessly variable)

- Drive Power (100% / 40% duty cycle): 9 kW / 13 kW

- Torque (40% duty cycle): 82 Nm

- Measuring System: Direct linear measurement system X/Y/Z

- Input Resolution X/Y/Z: 0.01 mm

- Position Tolerance X/Y/Z: 0.010 mm

- Rapid Traverse X/Y/Z: 24 m/min

- Feed Rate: 20 m/min

- Tool Changer Type: Chain magazine with double gripper

- Tool Magazine Capacity: 30 tool positions SK40 (DIN 69871)

- Max. Tool Diameter: D80 to D130 mm (speed-dependent)

- Max. Tool Length: 290 mm

- Max. Tool Weight: 6 kg

- Coolant Unit Capacity: 80 l

- Electrical Connection / Power Load: 17 kVA

- Max. Current (Jn max): 28 A

- Fuse / Supply Protection: 35 A

- Voltage: 400 V / 230 V / 24 V

- Frequency: 50 Hz

- Footprint Dimensions (L x W x H): 4,860 mm x 4,350 mm x 2,424 mm

- Transport Dimensions (L x W x H): 2,210 mm x 2,120 mm x 2,150 mm

- Transport Weight: 4.05 t (4,050 kg)

Additional Equipment:

Right cabin door, Operating Mode 4, Coolant/blow-air switchover, Spray gun, Heidenhain TS641 Infrared touch probe, Electronic handwheel, Extra V24 RS232 interface in/on cabinet, MDE interface (machine on, machine running, part counter), Oil pan drawing, German documentation, 3D machine model for kinematic simulation (IGES, STEP format), Large quantity of SK40 (DIN 69871) tool holders included
