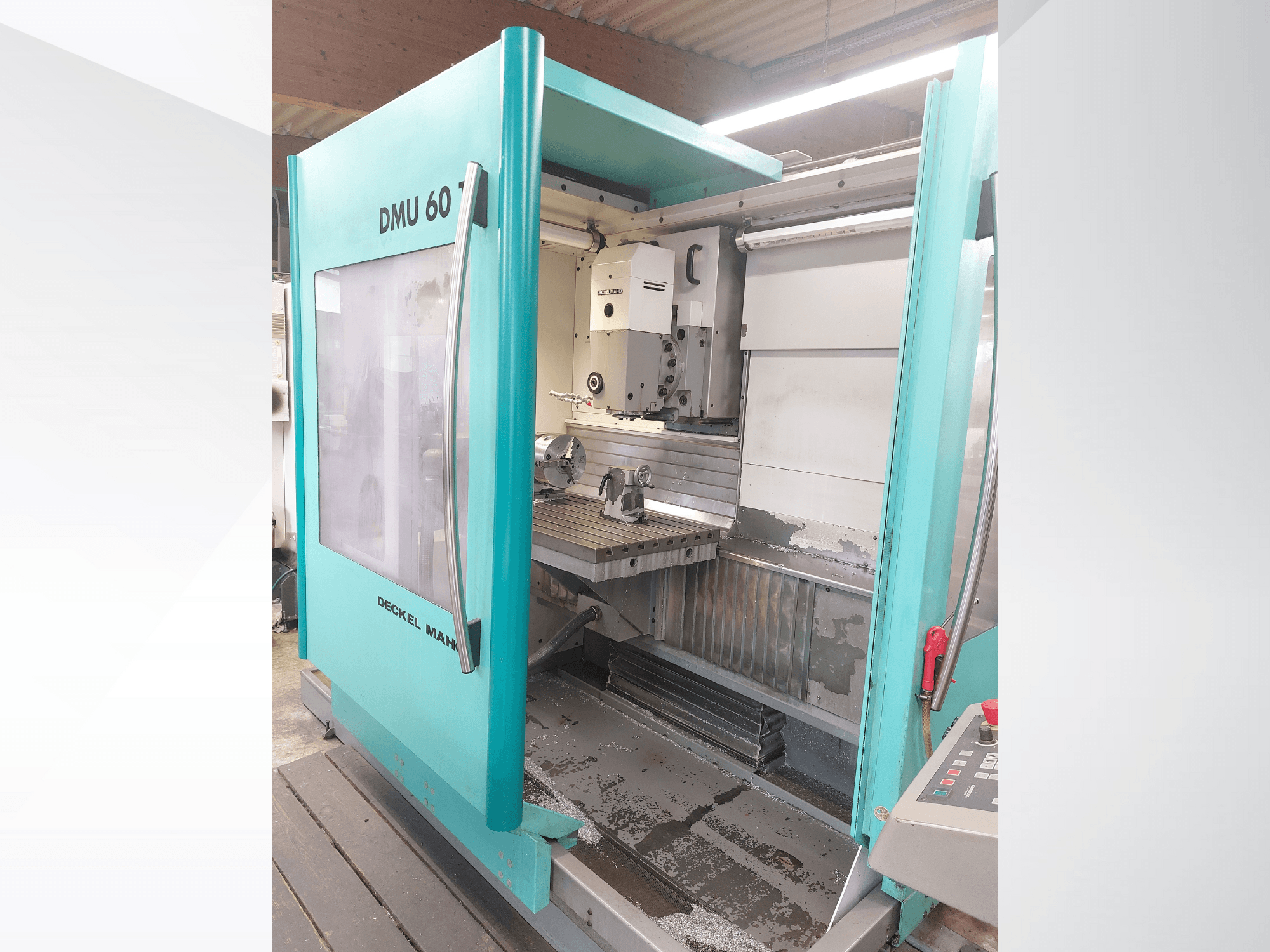

This 3-axis DECKEL MAHO DMU 60T was manufactured in 1996. It features a 24-position tool changer, an NC rotary table, and a spindle speed up to 6300 rpm. The working areas are 600 mm in length, 525 mm in width, and 500 mm in height. It includes a coolant system with a 150-liter capacity. Consider the opportunity to buy this DECKEL MAHO DMU 60T vertical machining centre. Contact us for more information about this machine.
Overview
- brand: DECKEL MAHO
- year: 1996
- MODEL: DMU 60T
- production hours: 23198
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - DECKEL MAHO DMU 60T
Control Unit
- Control Model: Millplus V400
Movement
- Number of Axes: 3
Additional Information
Control & Electrical
Control: Millplus V400
Screen: Color, text in German/English
Operating Voltage: 400 V, 50 Hz
Control Voltage: 24 V
Drive: Digital with overload protection
Spindle & Tooling
Spindle: With quill
Maximum Spindle Speed: 6,300 rpm (speed range with gearbox: 20–6,300 rpm)
Tool Holder: ISO 40 – DIN 69871
Pull Stud: DIN 69872 Form A
Tool Changer: 24–25 tool positions
Working Area & Movement
Longitudinal (X) Travel: 600 mm
Cross (Y) Travel: 525 mm
Vertical (Z) Travel: 500 mm
Rapid Traverse X/Y/Z: 18 m/min
Feed Rate: Up to 10,000 mm/min
NC Rotary Table: 3-axis on fixed table
Cooling & Accessories
Coolant System Capacity: 150 L
Full Enclosure: Yes
Paint: Gray / Green (NCS)
Documentation
2 sets, German
The machine has a 4-axis C-axis (dividing head)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
