DECKEL MAHO DMU 60T

Name: DECKEL MAHO DMU 60T
Brand: DECKEL MAHO
SKU: GR-MIL-DEC-2001-00001
Price: 24000 EUR
Availability: InStock

Photo Gallery

24,000 €

gindumac price

(Ex works)

Get an official quote

DECKEL MAHO - DMU 60T

2001

24,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

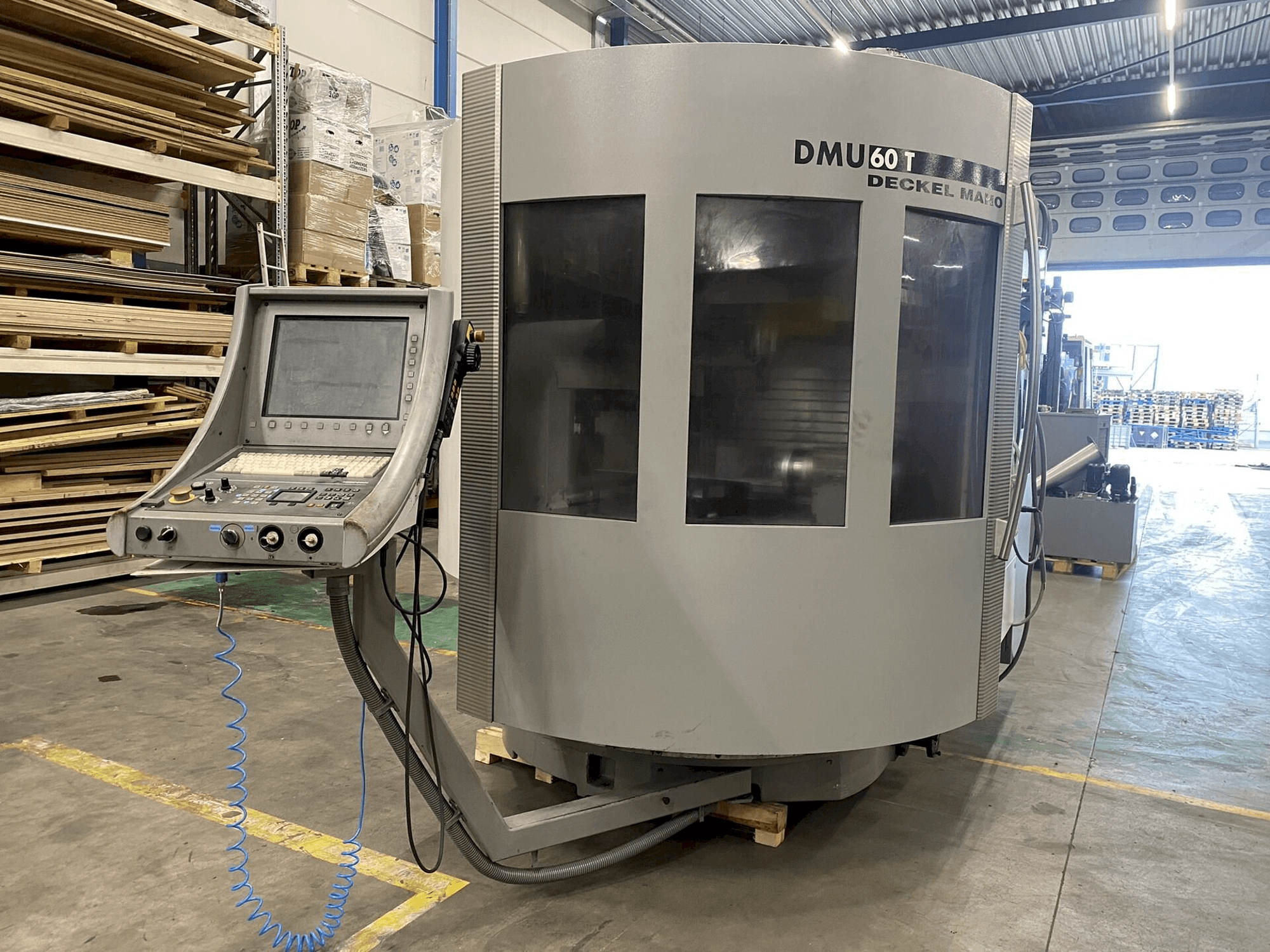

DECKEL MAHO DMU60T Vertical Machining center

Show in original language

This DECKEL MAHO DMU60T Vertical Machining center was manufactured in the year 2001. It is equipped with a HEIDENHAIN control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU 60T
production hours: 22000
application type: Milling
Location: Greece
machine type: Machining centers (vertical)
availability: Immediatly
control unit brand: HEIDENHAIN
GINDUMAC ID: GR-MIL-DEC-2001-00001

Technical Information

General Data

Measurements width: 2200 MM
Measurements depth: 3500 MM
Measurements height: 2300 MM
Machine weight: 6700 KG

Control Unit

Brand: HEIDENHAIN
Model: TNC 430

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 630 MM
Y-AXIS Movement: 560 MM
Z-AXIS Movement: 560 MM

Additional Equipment

- Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference)
- Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009
- Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis: hofmann rwnc-160 5th axis: rotary swivel spindle head 115 degrees
- - Cooling unit: schimpke dk25-v/s0
- - Max. Workpiece weight 400 kg
- - Table surface area l x w 1000x600 mm
- - Taper sk40
- - Toolchanger positions 20
- - Feed range 20-10000 mm/min rapid motion 20 m/min
- - Total power requirement 28 kw / 49kva
Qualitative Machine Benefits:
- - Max. Tool diameter: 160 mm
- - Max. Tool length: 315 mm
- - Max. Tool weight: 8 kg
- - Max. Weight in magazin: 100 kg

Extra information

- Max. tool diameter: 160 mm Max. tool length: 315 mm Max. tool weight: 8 kg Max. weight in magazin: 100 kg 4th axis: HOFMANN RWNC-160 5th axis: Rotary swivel spindle head 115 degrees Cooling unit: SCHIMPKE DK25-V/S0 Z- 560 mm X- 630 mm Y-560 mm max. workpiece weight 400 kg Control Heidenhain TNC 430 Table surface area l x w 1000x600 mm Taper SK40 Toolchanger positions 20 Turning speed range 18000 rpm Feed range 20-10000 mm/min Rapid motion 20 m/min Total power requirement 28 kW / 49kVA Weight approx. 6700 kg Dimensions (l x w x h) approx. 3500x2200x2300 mm It is has a 4th axis rotary and a positional 5th axis Cooling unit Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference) Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009 Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
