- ➤ Used DECKEL MAHO DMU 80P hi-dyn For Sale | gindumac.com

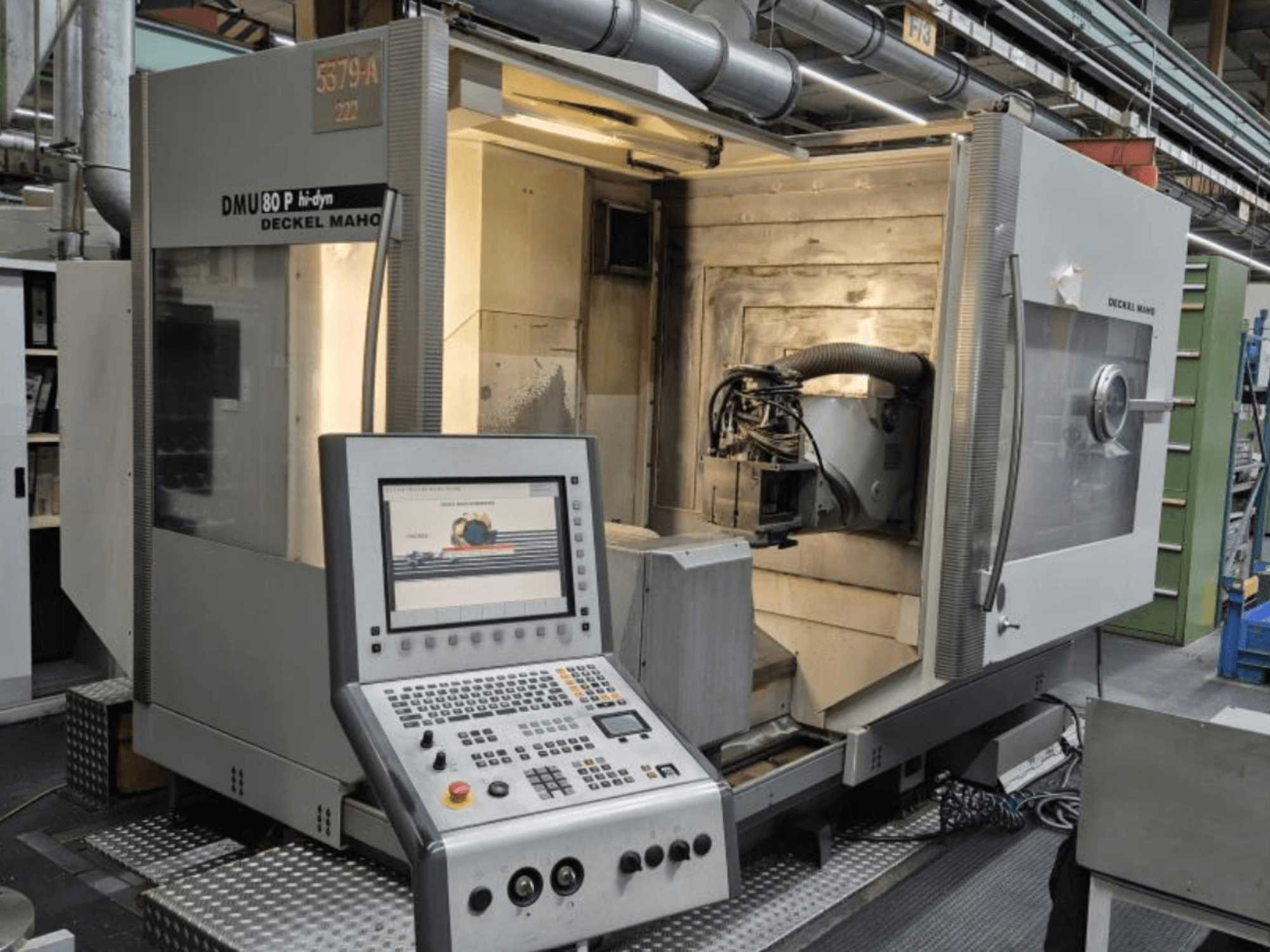

This 5-axis DECKEL MAHO DMU 80P hi-dyn was manufactured in 2005. It features impressive travels of 800 mm in X, 700 mm in Y, and 600 mm in Z. The machine is equipped with a Heidenhain iTNC 530 control and a maximum spindle speed of 6,300 rpm. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMU 80P hi-dyn universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2005
- MODEL: DMU 80P hi-dyn
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMU 80P hi-dyn
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 2750 mm
- Machine Length: 6600 mm
- Machine Weight: 10200 kg
- Table Load: 600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Power: 16 kW
- Spindle Speed: 6300 RPM
- Taper Size: SK 40
Additional Information
Spindle torque: 475 Nm (40% DC)
Tool changer: 60 positions (chain magazine)
Rapid traverse (X/Y/Z): 50 m/min
Feed rate (X/Y/Z): 50,000 mm/min
Table: NC swivel rotary table (d 630 mm)
Swivel range: -45° to +30°
Cooling: 40 bar internal coolant supply (IKZ) through spindle center
Power consumption: 50 kVA
Defect: Transmission damage
Additional equipment
Chip conveyor: Scraper belt type, discharge height 956 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
