DECKEL MAHO MH 800 C
DECKEL MAHO - MH 800 C
1996
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DECKEL MAHO MH 800 C Universal Machining Center

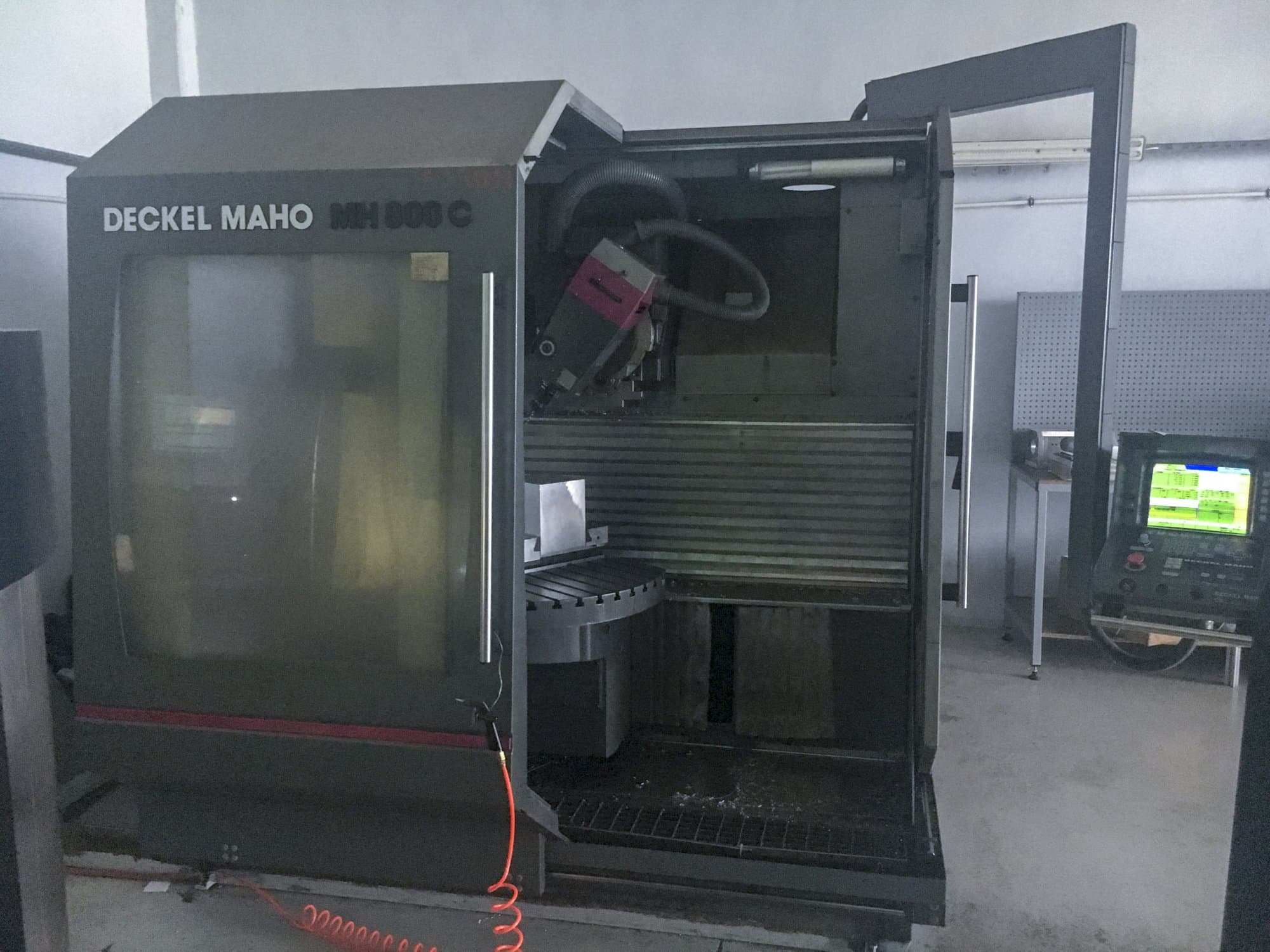

This DECKEL MAHO MH 800 C Universal Machining Center was manufactured in 1996 in Germany and counts a total of 29950 production hours. Operated through a DECKEL MAHO CNC 532 Control unit, this model stands out for its ability of 5 axis simultaneous operation and is very suitable for complex tool and die machining. During the past, this machine has mainly worked with steel and aluminium and comes with an additional chip conveyer.
Overview
- brand: DECKEL MAHO
- year: 1996
- MODEL: MH 800 C
- production hours: 29950
- application type: Milling
- Location: Turkey
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: DECKEL MAHO
- GINDUMAC ID: TR-MIL-DEC-1996-00001
Technical Information
General Data
- Measurements width: 3400 mm
- Measurements depth: 3400 mm
- Measurements height: 2589 mm
- Machine weight: 6200 kg
Control Unit
- Brand: DECKEL MAHO
- Model: CNC 532
Main drive
- Number of spindles: 1
- Spindle speed range: 6300 1/min
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 600 mm
- B-AXIS Movement: 360° mm
- C-AXIS Movement: +/-60° mm
Workpiece
- Workpiece weight: 700 kg
Table
- Outer length: 600 mm
- Outer width: 900 mm
Tools
- Max weight: 10 kg
- Max tool diameter: 80-130 mm
- Max tool length: 315 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 38 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Chip Conveyer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
