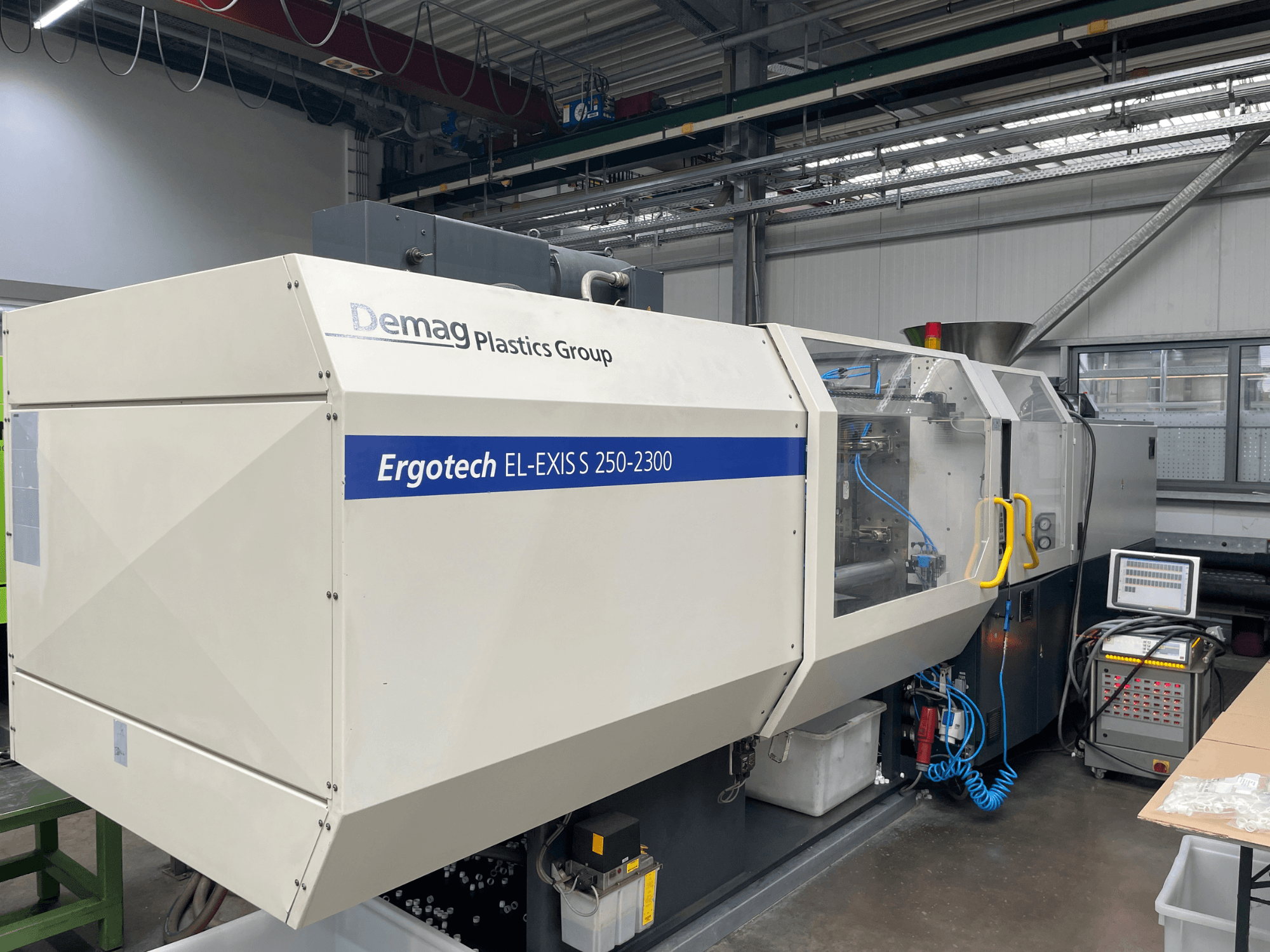

This DEMAG El Exis S250/630-2300 was manufactured in 2003. It features a clamping force of 2500 kN, a screw diameter of 60 mm, and a shot volume of 891 cm³. The machine includes a linear robot system and a 9-zone hot runner mold temperature control. Consider the opportunity to buy this DEMAG El Exis S250/630-2300 electrical injection moulding machine. Contact us for more information about this machine.
Overview
- brand: DEMAG
- year: 2003
- MODEL: El Exis S250/630-2300
- production hours: 28646
- application type: Injection Moulding
- Location: Germany
- machine type: Electrical Injection Moulding Machine
Technical Information - DEMAG El Exis S250/630-2300
Technical Specification
- Clamping Force: 2500 kN
- Max. Shot Weight: 810 g
- Screw Diameter: 60 mm
Additional Information
Clamping unit
Locking force: 2750 kN
Tie bar spacing (H x V): 630 x 630 mm
Platen dimensions: 950 x 950 mm
Mold installation height: min 330 mm / max 830 mm
Max daylight (open distance): 1505 mm
Opening stroke: 675 mm
Ejector: 200 mm stroke / 80 kN force
Mold weight capacity: 3300 kg total (1100 kg fixed / 2200 kg moving)

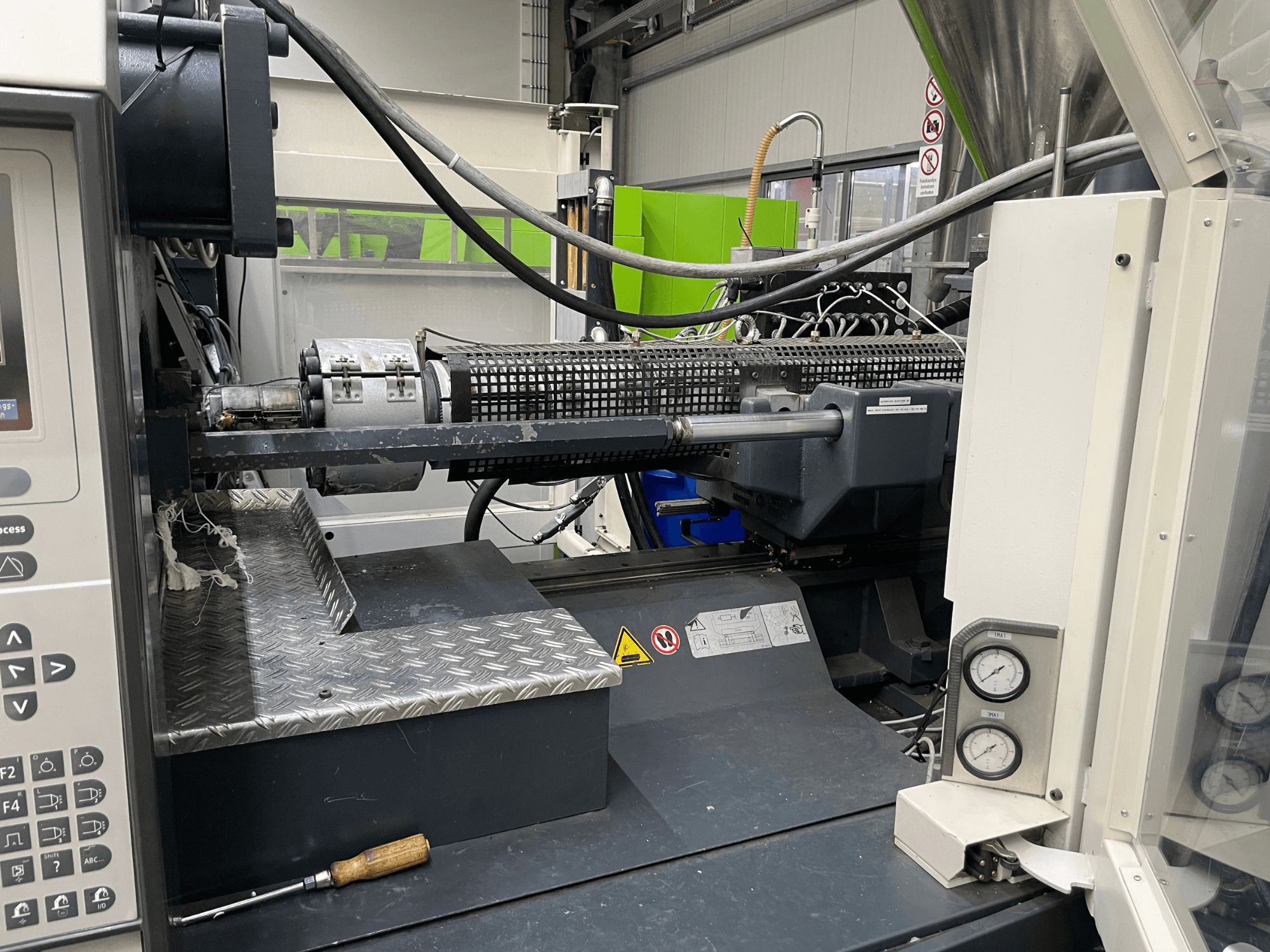

Injection unit (Type 840)
Screw diameter: 60 mm
Shot volume: 636 cm³
Shot weight (PS): 579 g
Injection pressure: 1351 bar
Screw speed: 326 rpm
Plasticizing rate (PS): 74 g/s
Nozzle: radius 15 mm / bore 3 mm
Injection unit (Type 2300)
Screw diameter: 60 mm
Shot volume: 891 cm³
Shot weight (PS): 810 g
Injection pressure: 2420 bar
Power and drive
System type: Hydraulic (pump motor)
Pump motor power: 37 kW
Installed heating power: 14.8 kW
Hybrid drive power consumption:
Total installed power: 124 kW
Electric screw drive: 47 kW
Electric clamp drive: 32 kW
Hydraulic pump: 22 kW
Options/controls
Core pulls: 2x (moving side)
Valve gate control: 1x hydraulic / 0x pneumatic
Mold temperature control: 9‑zone hot runner integrated
Interfaces: Printer, SPC process control
General specifications
Oil tank: 700 liters
Dry cycle: 2.00 s
Noise level: 74 dB(A)
Note from owner
Describes a hybrid high-speed machine with a larger injection unit (Type 2300 vs Type 840) than the referenced inventory machine above.
Additional equipment
Linear robot W633-961 (axes: X=900 mm / Y=1600 mm / Z=2500 mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
