Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
SUMITOMO SHI DEMAG - ERGOtech 110-430 compactES-INJ-DEM-1998-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Plastics Processing Machinery
- DEMAG ERGOtech 110-430 compact Injection Moulding Machine

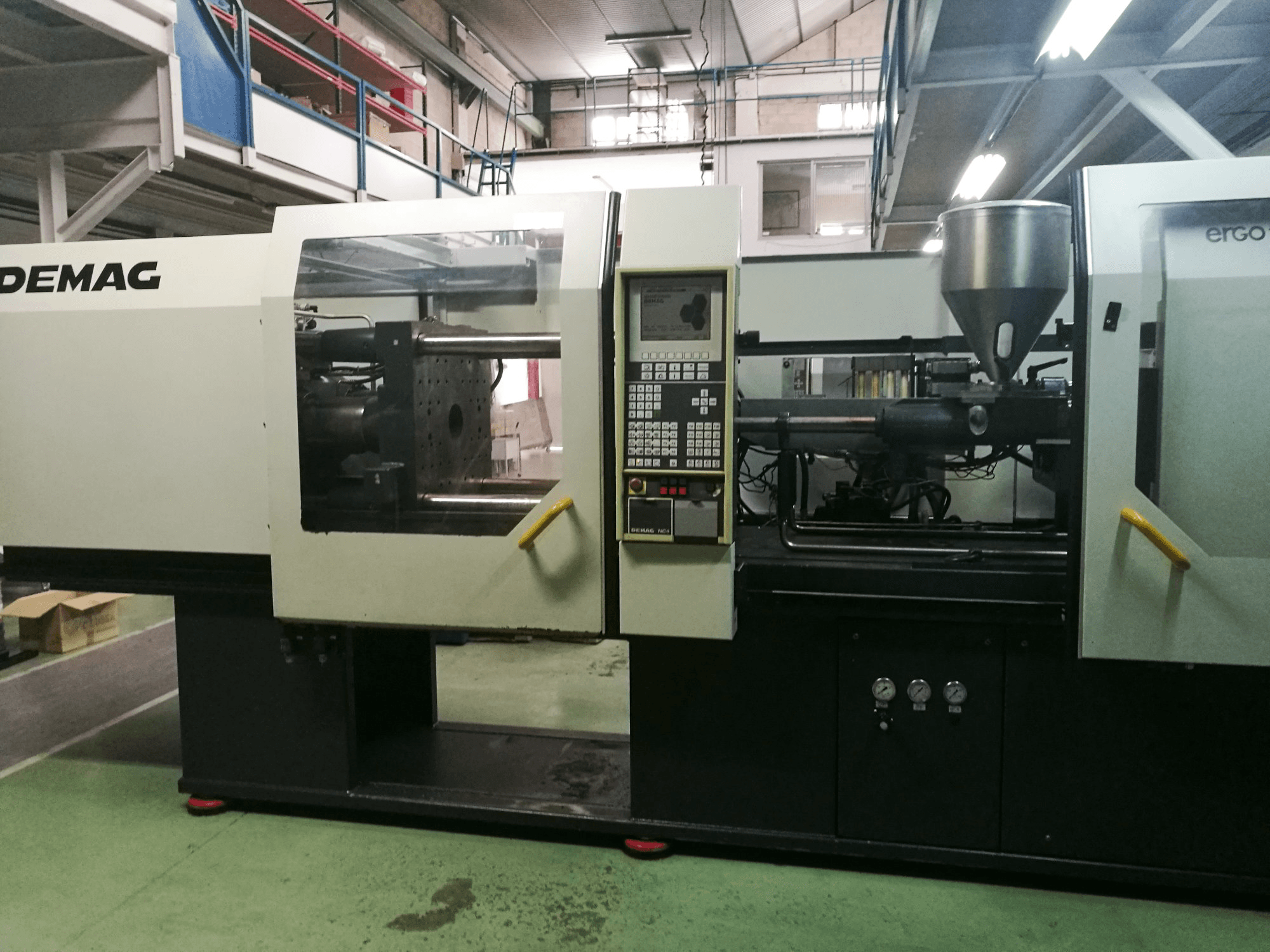

This DEMAG ERGOtech 110-430 compact Injection Moulding Machine, built in 1998, has a production record of 58820 working hours. This user-friendly machine is operated through a DEMAG NC4 Control unit, and stands out through its robustness that has left it in an impeccable condition.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 1998
- MODEL: ERGOtech 110-430 compact
- production hours: 58820
- application type: Injection Moulding
- Location: Spain
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - SUMITOMO SHI DEMAG ERGOtech 110-430 compact
General Data
- Measurements width: 4960 mm
- Measurements depth: 1500 mm
- Measurements height: 2000 mm
- Machine weight: 5200 kg
Control Unit
- Model: NC4
Injection Unit
- Screw diameter: 40 mm
- Shot weight: 205 g/PS
- Stroke volume: 231.2 cm³
- Injection pressure: 2020 bar
- Heating capacity: 11.1 kW
- Nozzle pressure: 60 kN
Clamping unit
- Clamping force: 1100 kN
- Opening stroke: 600 mm
- Mould height min: 250 mm
- Size of mold platens: 670 x 670 mm
- Ejector stroke: 180 mm
- Ejector force for / back: 41.2 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Oil pressure: 270 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
