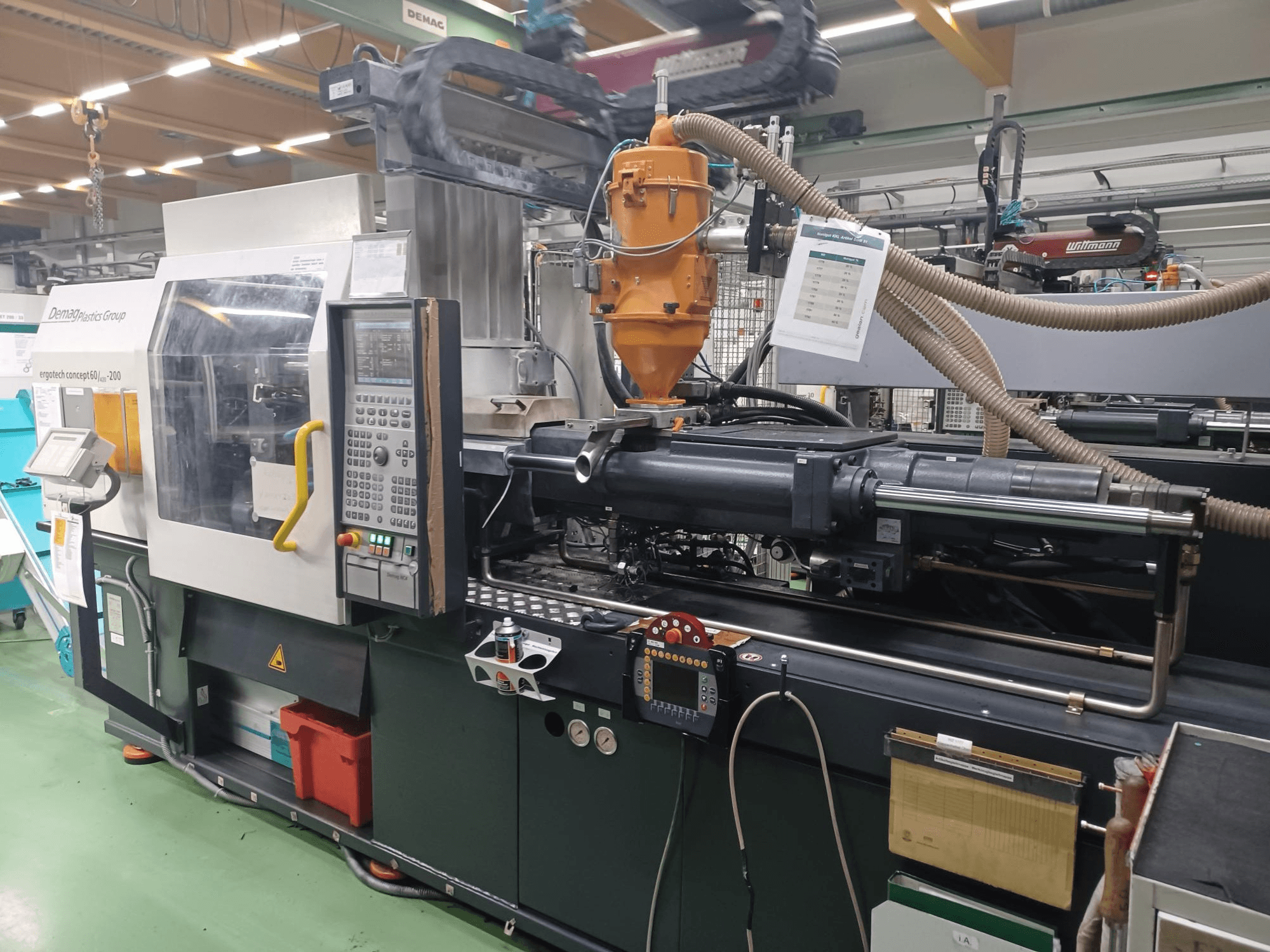

This DEMAG ET60-200 concept hydraulic injection moulding machine was manufactured in 2003. It features a clamping force of 600 kN and a maximum mold weight of 580 kg. The machine includes a robust injection unit with a screw diameter of 30 mm and an injection pressure of 1900 bar. Consider the opportunity to buy this DEMAG ET60-200 concept hydraulic injection moulding machine. Contact us for further details.
Overview
- brand: DEMAG
- year: 2003
- MODEL: ET60-200 concept
- production hours: 96986
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - DEMAG ET60-200 concept
Technical Specification
- Clamping Force: 600 kN
- Screw Diameter: 30 mm
Additional Information
Clamping unit:
Tie bar spacing (H x V): 420 x 420 mm
Platen dimensions (H x V): 530 x 540 mm
Min. mold installation height: 210 mm
Opening stroke: 400 mm
Max. mold weight: 580 kg (moving side 380 kg / fixed side 200 kg)
Ejector:
Stroke: 125 mm
Force: 41 kN
Retraction force: 15 kN
Pneumatic ejector: Yes
Core pull control: Yes (2 units, on the ejector side/AS)
Injection unit 1:
Unit size: 200
Screw diameter: 30 mm
Injection pressure: 1900 bar
Stroke volume: 106 ccm
Shot weight (PS): 94 g
Screw L/D: 20
Nozzle radius: 15 mm
Armored/wear-resistant injection unit: Yes
Process control: SPC (Yes)
Note: Maximum crane load warning: 2 metric tons
Additional equipment
Robot/removal device: W621-1381
Travel paths: Y 1200 mm, X 550 mm, Z 1500 mm
Hot runner controller: 7-zone integrated control
Mold sensors: Kistler (p=1/t=0)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
