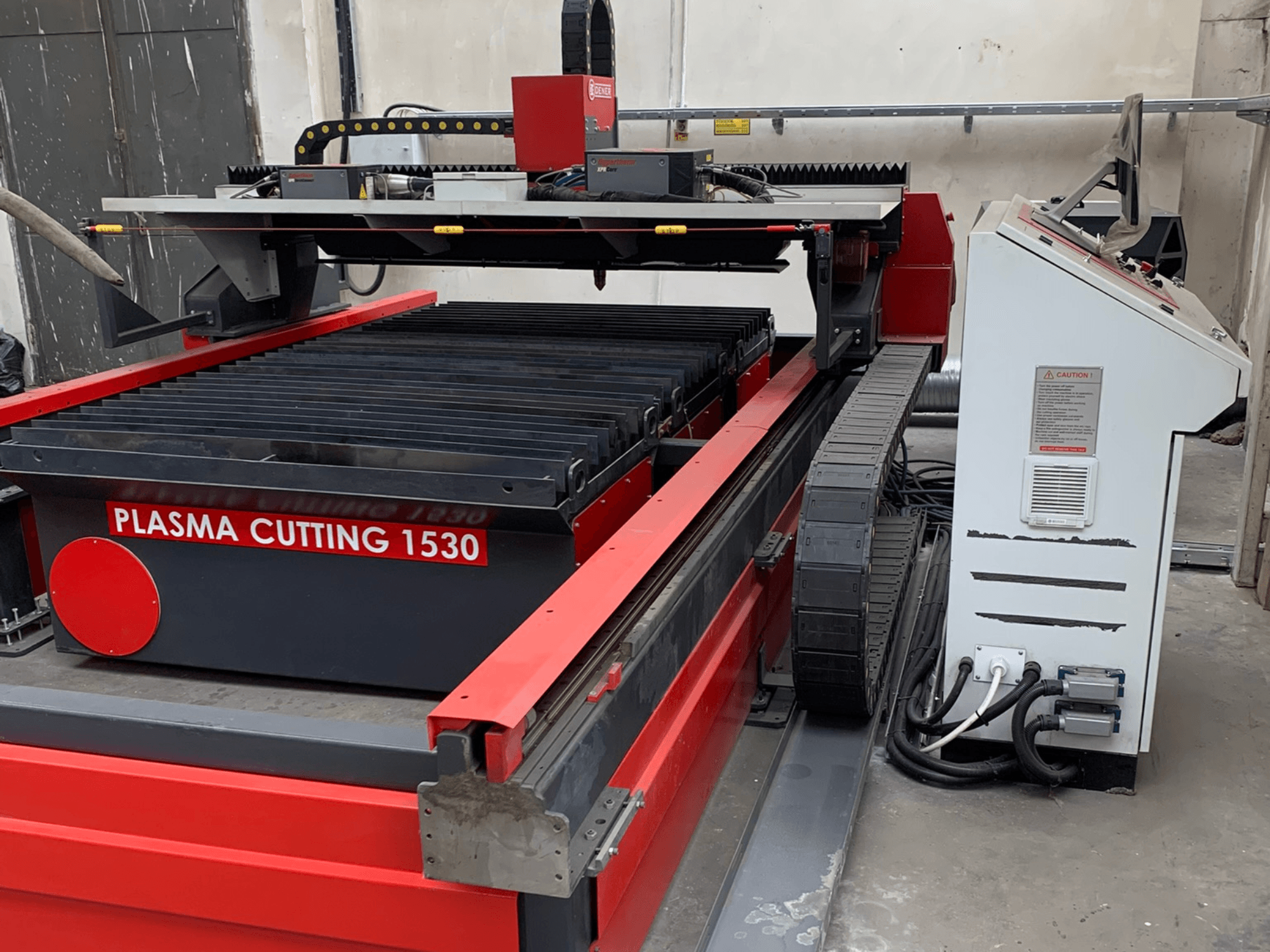

DENER - PL 1530 HU-CUT-DEN-2019-00001

• Condition: As-new; installed ~95%, powered on only; 0 working hours

• Plasma source: Hypertherm HPR 130 XD high-definition

• Working area: X 1,500 mm; Y 3,000 mm

• Table/cutting heights: Table 750 mm; Cutting 570 mm

• Axes/drives:

  • X: double synchronized AC servo, rack & pinion

  • Y: synchronized AC servo, rack & pinion (double-sided brushless AC servos)

  • U: double synchronized AC servo

  • Motors: brushless AC servo

  • Rapid positioning speed: 26 m/min

  • Positioning accuracy: ±0.01 mm (X/Y/U)

• Control and HMI:

  • DENER factory CNC, Windows-based

  • 12" TFT LCD monitor, fixed CNC panel + separate control panel

  • Celeron 733 industrial CPU, 20 GB industrial HDD

  • Standard keyboard and PS/2 mouse

• Cutting system/features:

  • Automatic height sensing and following; Hypertherm arc height control

  • Collision protection on plasma head

  • Plasma ignition control; speed control unit

  • Sheet alignment/positioning function

  • Independent sectional cutting table separated from bridge/frame, with automatic fume extraction doors

  • Head bridge and side guides

  • CE conformity; colored signal lights

• Electrical/data:

  • Power supply: 400 V ±10%, 50–60 Hz ±2%

  • Power: 27 kW

  • Working temperature: -10 °C to +30 °C

• Communication/IO:

  • 2x RS-232, 2x USB 2.0, LAN

  • Encoder fault diagnosis; max encoder input frequency 500 kHz

  • Analog inputs for potentiometer

Additional equipment

• Nesting PC software (as per original offer)

• Spare parts kit (1 set)

• Spare parts, consumables and starter kit
