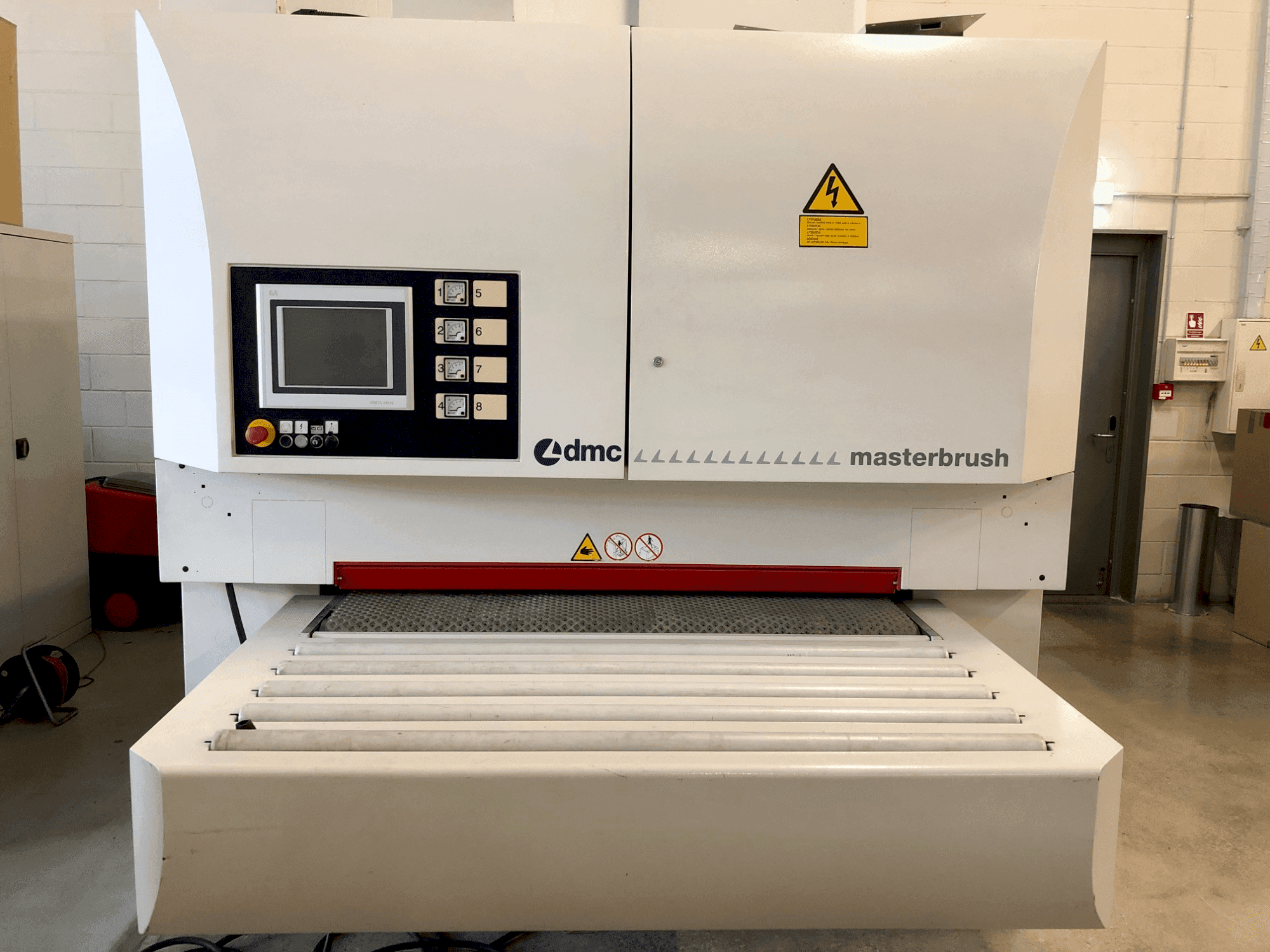

DMC - MASTERBRUSH MB 1350 M4LV-WOO-DMC-2011-00001

Additional equipment

• Thickness of the product to be processed, min/max: 8 / 200 mm
• Main Drive: Feed speed, min/max: 3.5 / 18 m/s // Feed motor power: 2.2 Kw (3 HP) // Vacuum motor power: 11 Kw (15 HP)
• Possibility to adjust the height of the grinding roller with the help of a thickness indicator
• Automatic stop of the sander in the event of an accident
• Automatic oscillation of the grinding belt with electronic control
• Direction of movement of the inclined belt is opposite to the feed of the workpiece
• Length of the bevel tape: 2620 mm // Width of the inclined belt: 1370 mm // Grinding roller diameter: 320 mm // Rubberized sanding roller hardness: 30 Sh // Speed of the inclined belt: up to 18 m/s
• Pneumatic switch for extremely precise positioning of the sanding roller
• Slanted belt blower with electronic oscillation // Electric motor power: 11 Kw (15 HP)
• Inverter for adjusting the speed of the sanding belt (from 3 to 18 m/s)

Machine Benefits

Qualitative Machine Benefits

• Fine-tuning capabilities for consistent processing quality
• Safety features such as automatic stop in case of accidents
• Rubberized rollers to protect workpieces
• Electronic control for precise operation

Technical Machine Benefits

• Orbital rotating disk : working unit19 discs, diameter 125 mm // manually adjustable working height // engine power: 1. 1 kw (1. 5 hp) // inverter for disc rotation // speed adjustment (from 180 to 500 rpm) // inverter for regulating orbital motion
• Two helical brush grinding: units brush roller, diameter 300 mm // manually adjustable working height // motor power: 4 kw (5. 5 hp) // inverter for adjusting the roller rotation speed (from 180 to 500 rpm) // rolls for pressing the workpiece before and after the brush grinding roller
• Cleaning unit felt roller: diameter 200 mm // motor power: 2. 2 kw (3 hp) // rotating billet blowers
• Adjustable height of grinding roller and brush rollers
• Automatic oscillation for precise control
• Inverters for adjustable speed control
• Pneumatic switch for precise positioning
• Multiple working units for comprehensive processing: grinding, orbital rotating, helical brushing, and cleaning

Extra Information

Operational for approximately 6 months with an estimated 960 working hours // More precise data available once connected to electricity
