➤ Used DMG CLX 350 V4 For Sale | gindumac.com

Show in original language

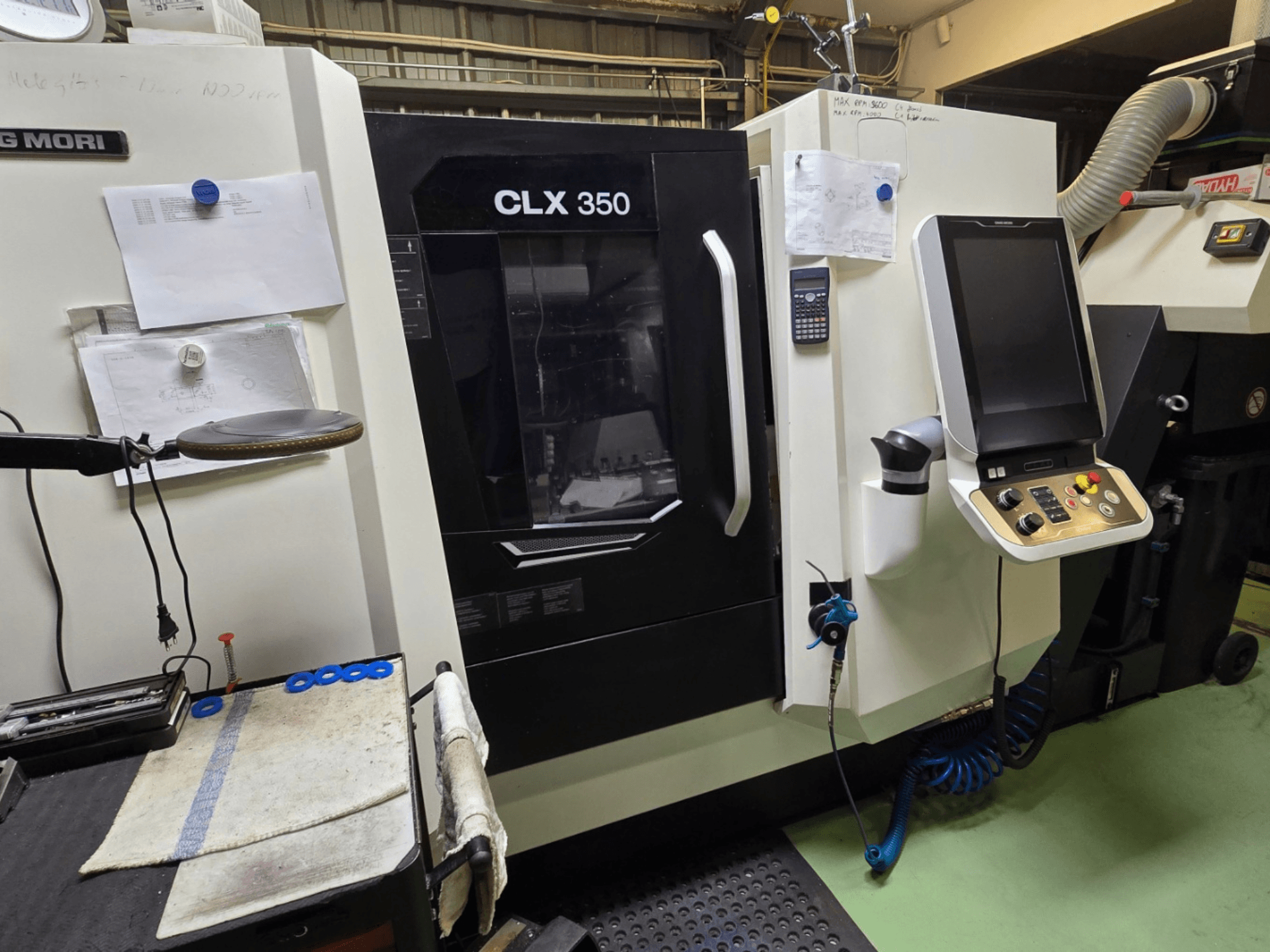

This 3-axis DMG CLX 350 V4 was manufactured in 2018 and features a max turning diameter of 320 mm, spindle speed up to 5,000 rpm, and a bar capacity of Ø 65 mm. It includes a VDI 30 turret with 12 stations for driven tools, enhancing versatility. Ideal for precision turning with rapid traverse rates and Siemens 840D sl control for advanced operations. Contact us for more information about this machine.

Overview

brand: DMG
year: 2018
MODEL: CLX 350 V4
production hours: 5080
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DMG CLX 350 V4

Control Unit

Control Brand: SIEMENS
Control Model: 840D

Dimensions

Machine Height: 1852 mm
Machine Length: 1928 mm
Machine Weight: 4700 kg

Movement

Number of Axes: 3
X-axis Travel: 242.5 mm
Y-axis Travel: 80 mm
Z-axis Travel: 540 mm

Technical Specification

Driven Tools: Yes
Spindle Power: 16.5 kW
Spindle Speed: 5000 RPM

Additional Information

Operating hours: 5,080 h
Working area:
- Max turning diameter: 320 mm
Main spindle:
- Spindle nose: A2-6
- Bar capacity: Ø65 mm
- Spindle torque: 168 Nm
- Chuck size: Ø210 mm
Turret and driven tools (V4):
- Turret: VDI 30, 12 stations
- Driven tools: Yes, 12 stations
- Driven tool speed: 5,500 rpm
- Driven tool power: 5.44 kW
Axes and precision:
- C-axis: Yes
- Rapid traverse: X 30 m/min, Y 22.5 m/min, Z 36 m/min
- Precision (ISO 13041-4): X/Y 5 µm
Dimensions and weight:
- Machine dimensions (without chip conveyor): 1928 × 2260 × 1852 mm
- Total length with chip conveyor: approx. 3700 mm
Control:
- Siemens 840D sl with 19" SLIMline multi-touch panel
- Integrated 3D simulation
- SMARTkey (8 GB)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
