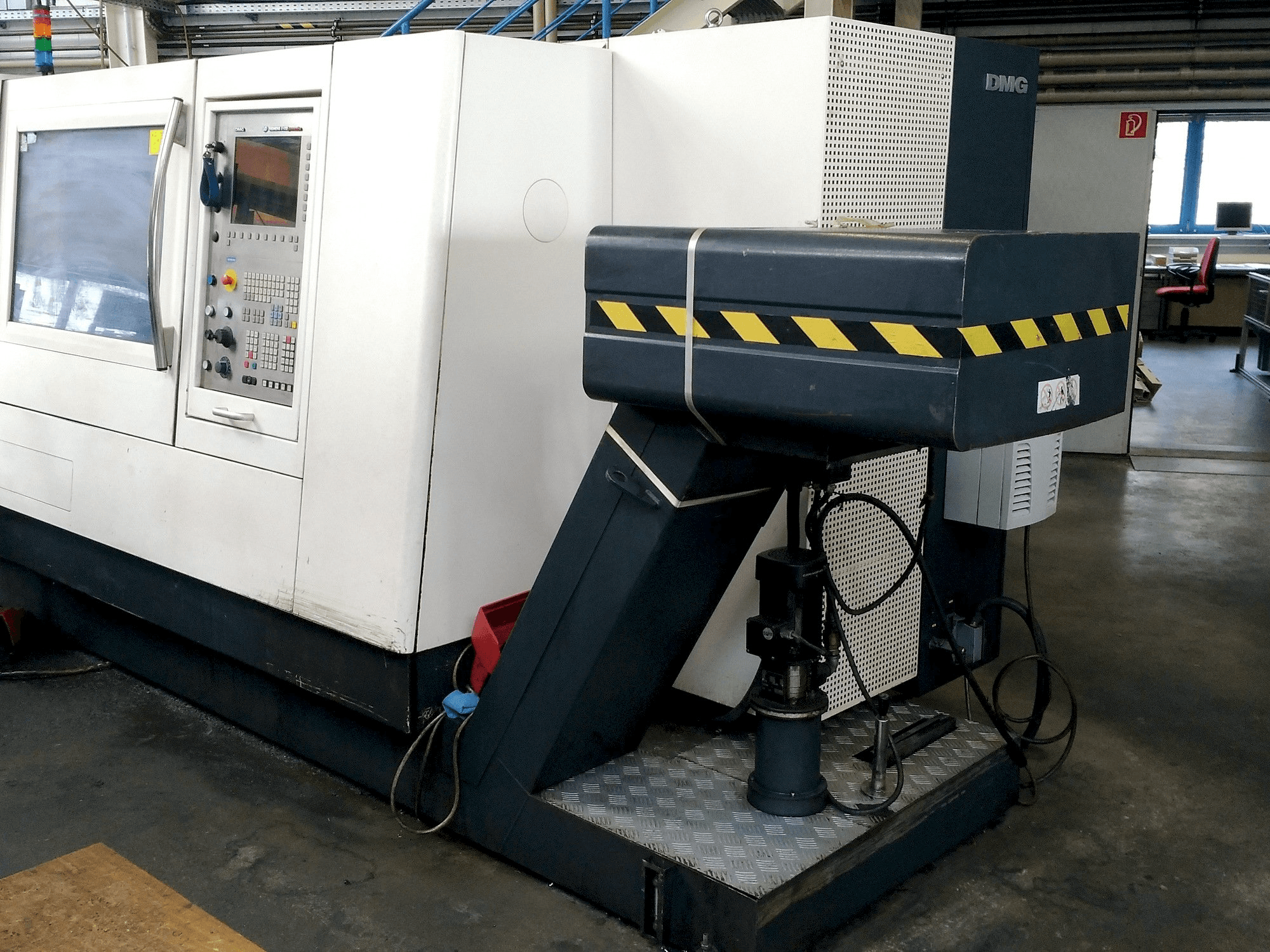

Front view of Gildemeister DMG CTX 510 eco machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG CTX 510 eco

Photo Gallery

DMG - CTX 510 ecoDE-TUR-DMG-2008-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister DMG CTX 510 eco lathe

Show in original language

This DMG CTX 510 eco lathe machine was manufactured in 2008 in China. The machine has 45263 working hours. It is operated through a Siemens 810D powerline control unit. This 2 axis machine has a spindle range of 500 - 3250 rpm.

Overview

brand: DMG
year: 2008
MODEL: CTX 510 eco
production hours: 45263
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DMG CTX 510 eco

General Data

Measurements width: 5080 mm
Measurements depth: 1855 mm
Measurements height: 1930 mm
Machine weight: 7500 kg

Control Unit

Model: 810D powerline
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 500 - 3250 1/MIN
Spindle bore: 102,5 mm
Number of axis: 2

Movement

X-AXIS Movement: 300 mm
Z-AXIS Movement: 1050 mm

Media

Main electronic connection: 400 V - 50/60 Hz
Power consumption: 50 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Chuck diameter: 250 mm
Spindle nose: fl 220 h5
Nominal torque (s1): 420/500 nm
Maximum turning diameter: 465 mm
Maximum turning length: 1000 mm
Maximum mass between center: 350 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
