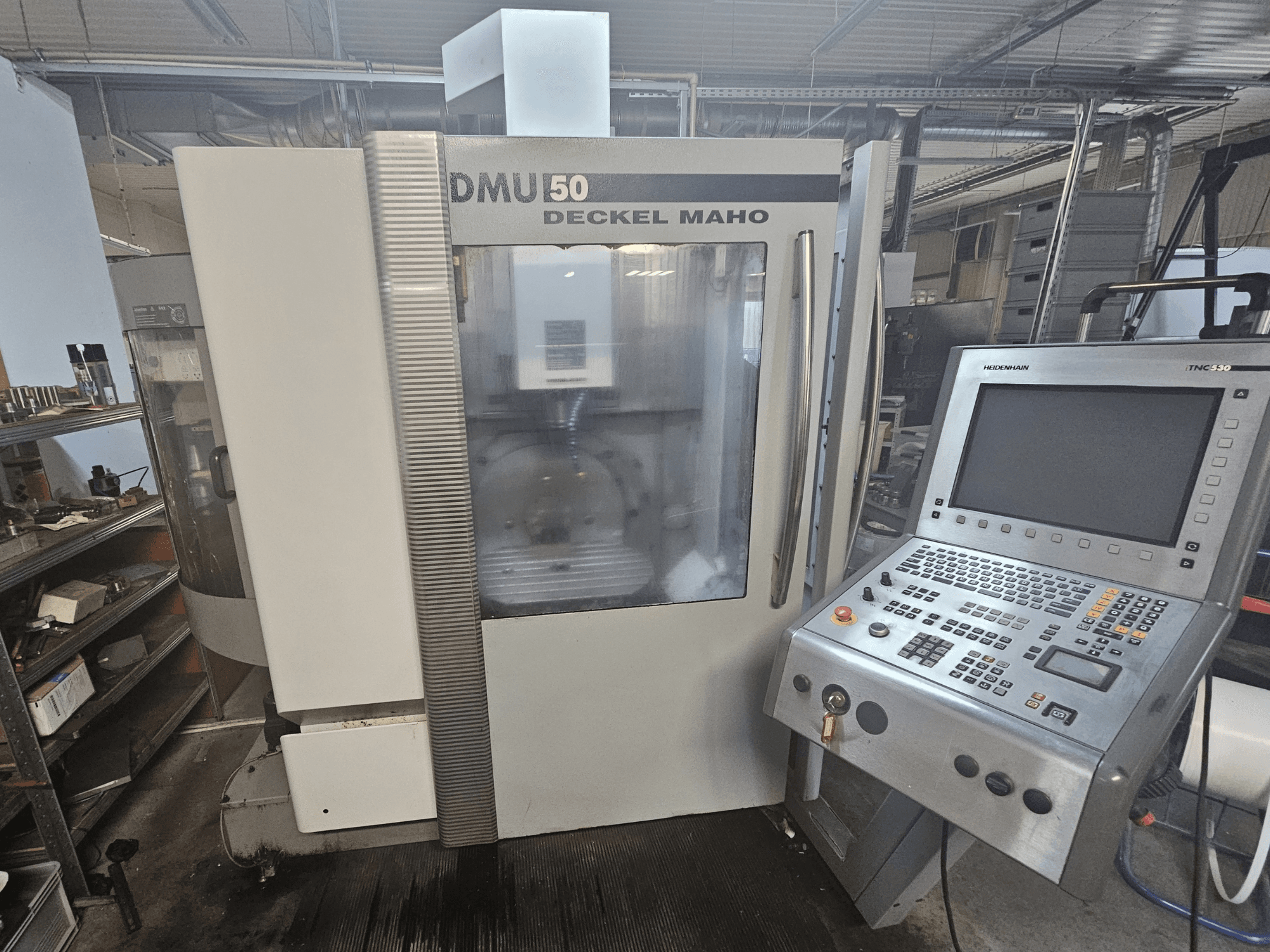

This 5s DMG DECKEL MAHO DMU 50 was manufactured in 2005. It features a HEIDENHAIN iTNC 530 CNC control, with a spindle speed range of 20 – 10,000 rpm and a tool magazine capacity of 16 pockets. The machine offers a maximum table load of approximately 200 kg and a rapid traverse of 24–30 m/min. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 50 vertical machining centre. Contact us for further details.
Overview
- brand: DMG DECKEL MAHO
- year: 2005
- MODEL: DMU 50
- production hours: 15069
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DECKEL MAHO DMU 50
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 4500 kg
- Table Load: 200 kg
Movement
- X-axis Travel: 500 mm
- Y-axis Travel: 420 mm
- Z-axis Travel: 380 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Spindle Power: 13 kW
- Spindle Speed: 10000 RPM
Additional Information
Table clamping area: approx. 500 × 380 mm
Swivel axis (B): about −10°/−5° to +110°
Rotary axis (C): 360° continuous
Tool magazine capacity: 16 pockets
Max. tool diameter: about 80 mm (130 mm with free adjacent pocket)
Max. tool length: approx. 300 mm
Rapid traverse (X/Y/Z): 24–30 m/min (depending on version)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
