- ➤ Used DMG DECKEL MAHO DMU 80P duoBLOCK | Machining Center

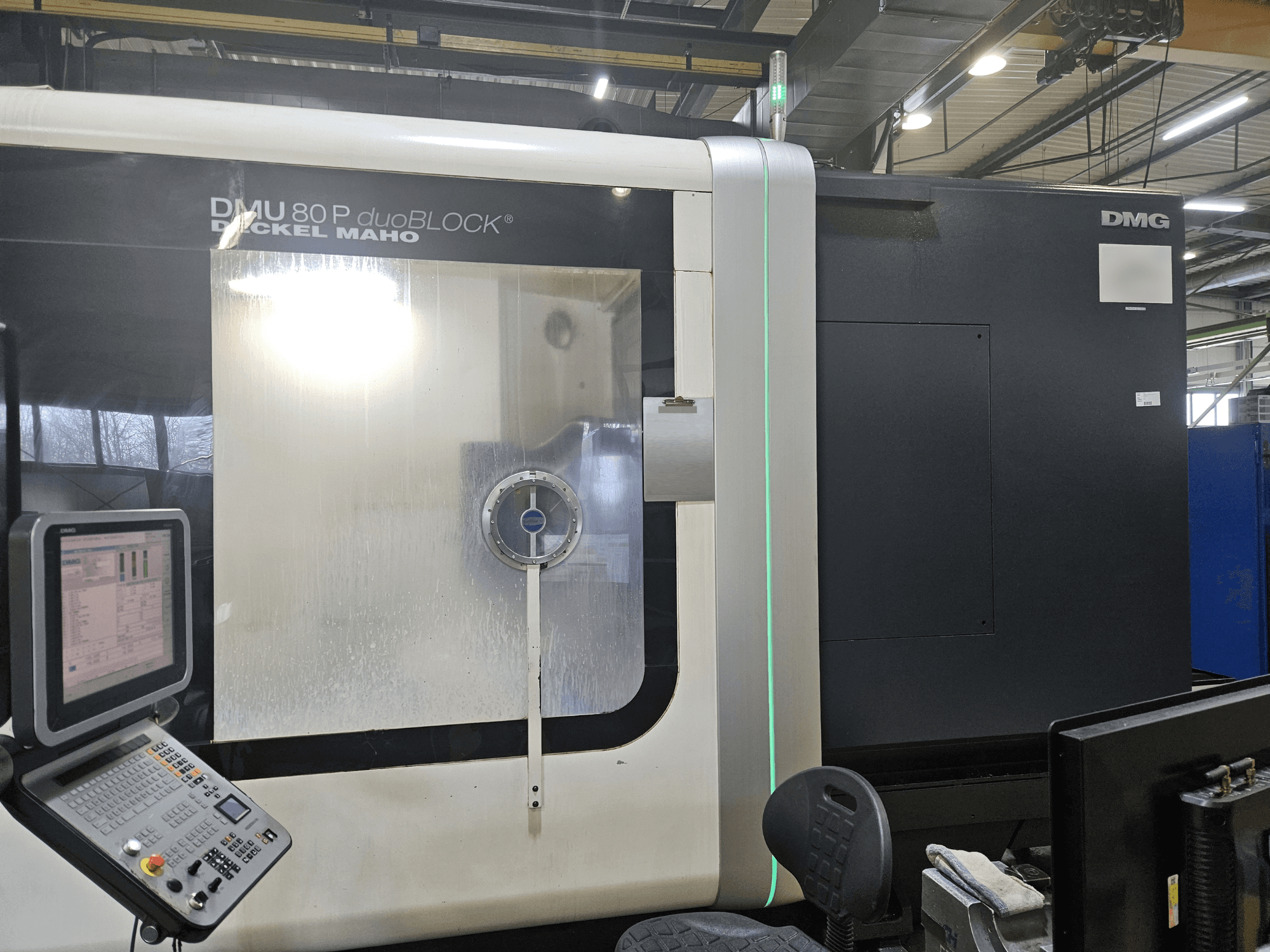

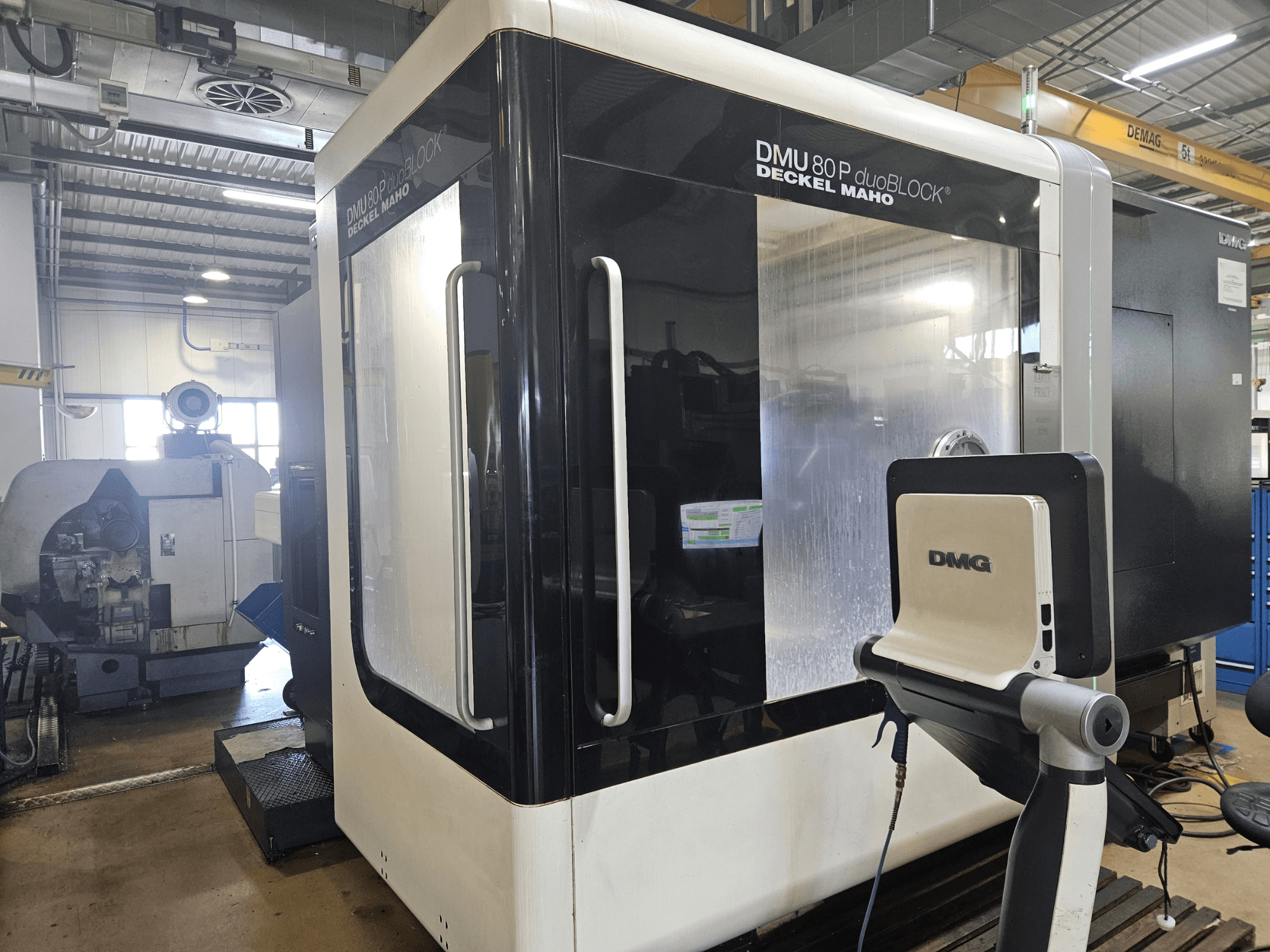

This 5-axis DMG DECKEL MAHO DMU 80P duoBLOCK was manufactured in 2009. It features impressive axis travels with X-axis at 800 mm, Y-axis at 1050 mm, and Z-axis at 850 mm. The machine includes a robust table size of Ø 900 × 700 mm and a maximum workpiece weight capacity of 1800 kg. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 80P duoBLOCK vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG DECKEL MAHO
- year: 2009
- MODEL: DMU 80P duoBLOCK
- production hours: 35295
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DECKEL MAHO DMU 80P duoBLOCK
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 3200 mm
- Machine Length: 3400 mm
- Machine Weight: 13000 kg
- Machine Width: 5400 mm
- Table Length: 700 mm
- Table Load: 1400 kg
- Table Width: 900 mm
Movement
- B-axis Max: 180°
- B-axis Min: -30°
- C-axis: 360°
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Number of Tools: 60
- Spindle Power: 28 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
- Through-spindle Coolant: Yes
Additional Information
Rotary axes: B-axis (tilting head) -30° to +180°; C-axis (rotary table) 360° continuous
Table size: approx. Ø 900 × 700 mm
Max. workpiece weight: approx. 1400–1800 kg
Spindle type: Vertical milling spindle
Coolant through spindle (CTS): yes
CE compliant
P-B0052 – 3D control Heidenhain iTNC 530
P-W0276 – Universal milling head with controlled B-axis
P-D0010 – Tool magazine Horizontal chain magazine with 60 positions
P-K0220 – Infrared measuring probe Renishaw OMP 60 (optical)
3D quickSET – Tool set for checking and correcting kinematic accuracy
P-K0205 – 4-color signal light
P-G0004 – Wash gun with pump 2 bar / 40 l/min (theoretical pump capacity)
P-L0036 – Power failure safety package
Condition: Very good working condition; full service history available
