➤ Used DMG DMU 125 P hi-dyn For Sale | gindumac.com

Show in original language

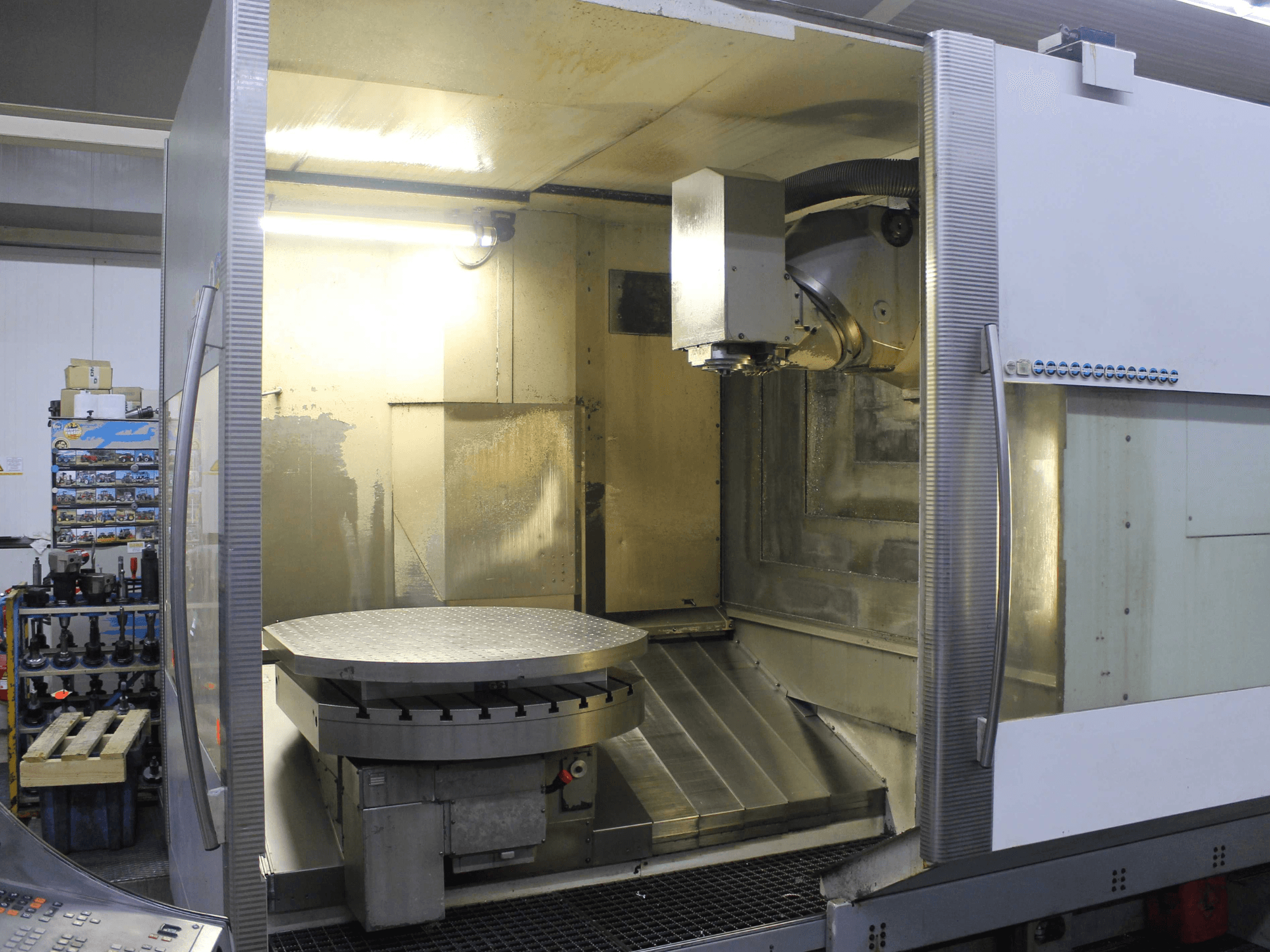

This 5-axis DMG DMU 125 P hi-dyn was manufactured in 2001. It features a Heidenhain control system, a SK50 spindle taper, and 120 tool stations. With spindle hours totaling 22,180, consider the opportunity to buy this DMG DMU 125 P hi-dyn universal machining centre. Contact us for more information about this machine.

Overview

brand: DMG
year: 2001
MODEL: DMU 125 P hi-dyn
production hours: 20325
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMU 125 P hi-dyn

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC430

Dimensions

Machine Depth: 8000 mm
Machine Height: 3200 mm
Machine Length: 6000 mm
Machine Weight: 18000 kg
Table Length: 1000 mm
Table Load: 2000 kg
Table Width: 1250 mm

Movement

Number of Axes: 5
X-axis Travel: 1250 mm
Y-axis Travel: 880 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Speed: 8000 RPM
Taper Size: SK 50
Through-spindle Coolant: Yes
Tool Stations: 120

Additional Information

Spindle hours: 22,180
Tool magazine/stations: 120
Travel distances: 1250 x 880 x 800
Tool holder: SK50
Changer: 120 tool positions in chain magazine
Gripper type: Double gripper
Control: Heidenhain TNC 430
Working range: Longitudinal: 1250 mm Transverse: 880 mm Vertical: 800 mm
Dimensions: approx. 6 x 8 x approx. 3.20 m height
Weight: approx. 18,000 kg

B axis is indexed

Additional data:

Full protection cabin
IKZ through spindle center
Blow air through spindle center retrofitted
Chip conveyor
Coolant tank 600 liters
NC rotary table D1250 x 1000 mm
Max. load at table center 2,000 kg
Clamping grid 9 slots 18H7 a 100 mm
Kit motor with SK50 gearbox – spindle speed 8,000 rpm
Renishaw MP10 SK50 infrared measuring probe
Electronic handwheel
4 operating modes possible
Flushing gun with pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
