DMG - DMU 125 TDE-MIL-DMG-1998-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- DMG DMU 125 T Vertical Machining center

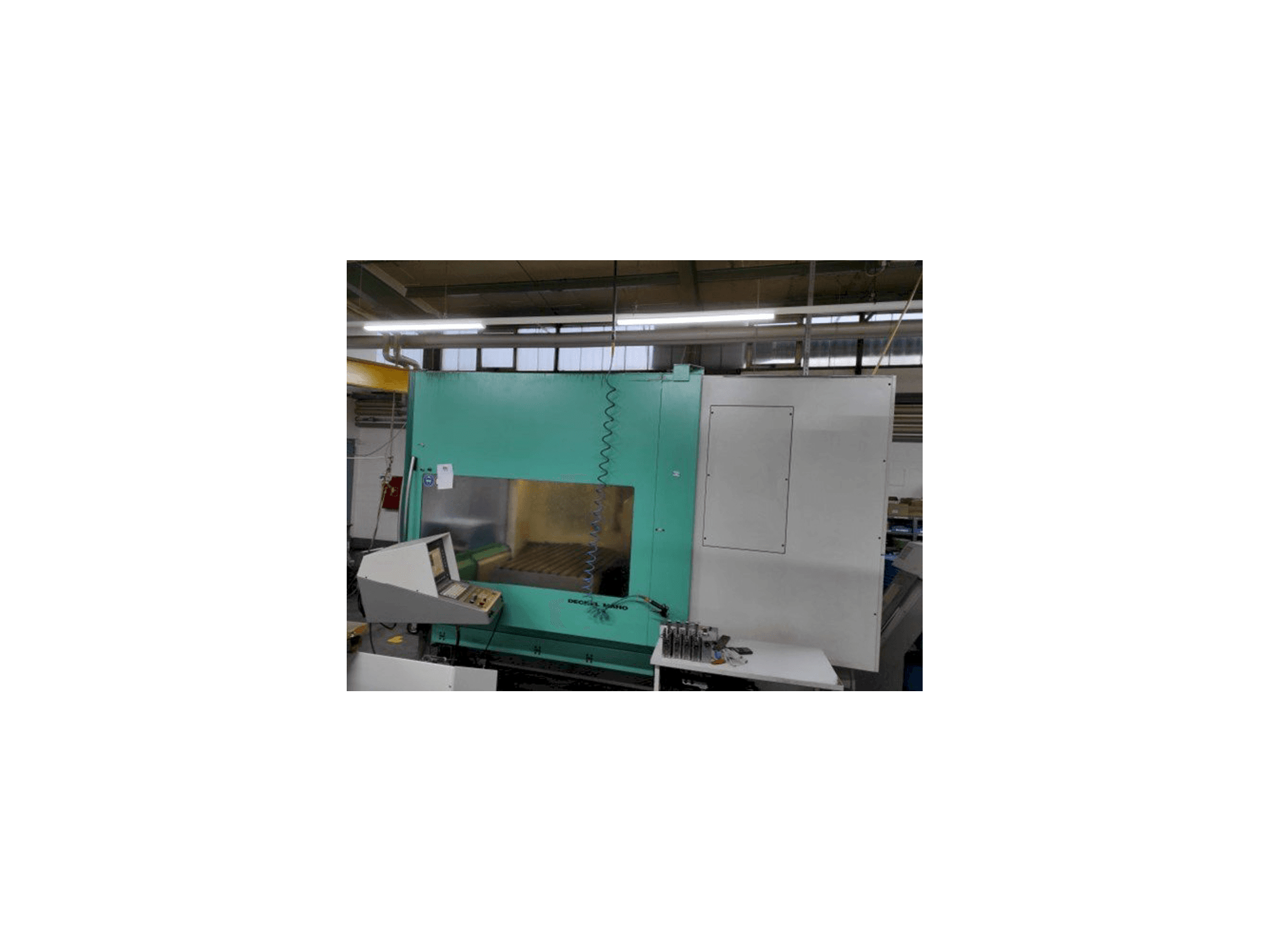

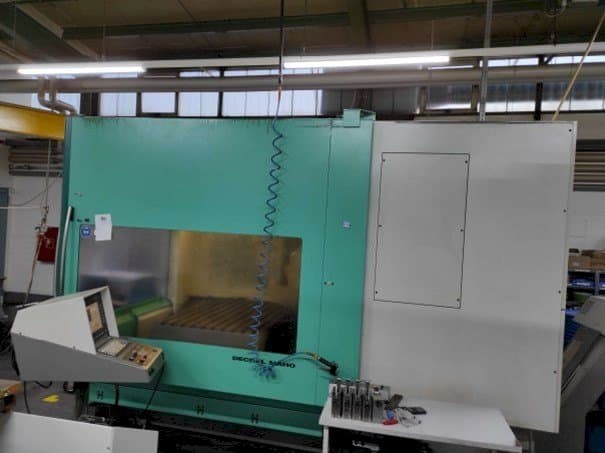

This DMG DMU 125 T Vertical Machining Center was manufactured in the year 1998 and has 28018 hours, of which 9528 are cutting hours. It is equipped with a DMG MillPlus control unit. The machine has a spindle speed of 8000 rpm.
Overview
- brand: DMG
- year: 1998
- MODEL: DMU 125 T
- production hours: 28018
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- availability: Sold
Technical Information - DMG DMU 125 T
Control Unit
- Model: MillPlus
Main drive
- Spindle speed range: 8000 1/MIN
- Tool taper: SK50
Movement
- X-AXIS Movement: 1250 mm
- Y-AXIS Movement: 880 mm
- Z-AXIS Movement: 800 mm
Table
- Outer length: 1500 mm
- Outer width: 1050 mm
- Table load: 2500 kg
Tools
- Slots in storage: 30
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - 10t-slots 18h7 / 100 mm
- - Tool clamping according to din 698871
- - Discharge height 956 mm, width 380 mm
- - Electronically controlled handwheel millplus it
- - Flushing gun with pump
- - 2 bar/ 40 l/min
- Qualitative Machine Benefits:
- - Documentation in german
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
