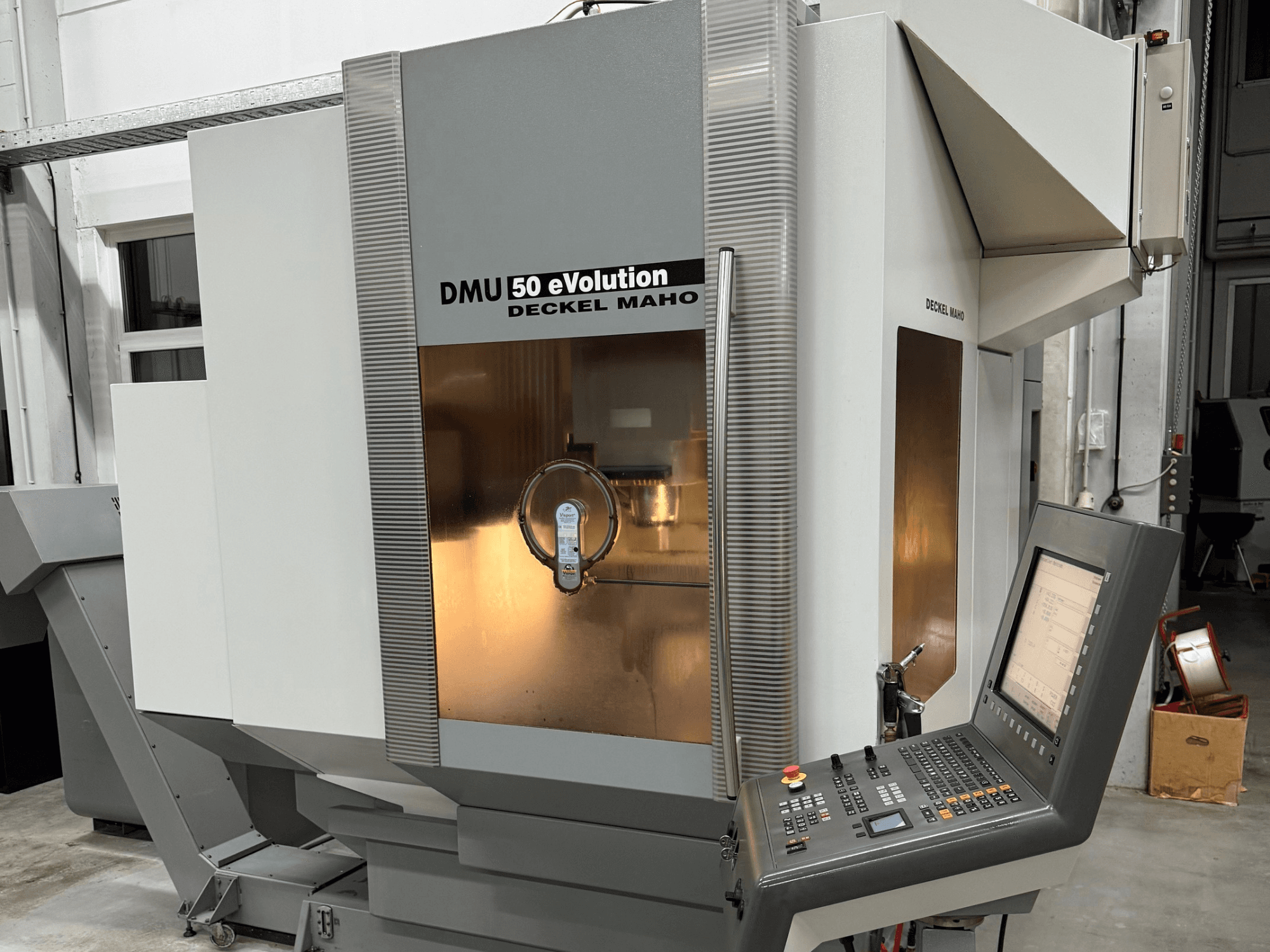

This 5-axis DMG DMU 50 eVo was manufactured in 2004. It features X, Y, and Z axis travel of 500/420/380 mm, rapid traverse of 50 m/min, and a spindle speed up to 18,000 rpm. Equipped with a SK40 tool holder, 32-position tool magazine, and internal coolant supply at 40 bar. Consider the opportunity to buy this DMG DMU 50 eVo universal machining centre. Contact us for more information about this machine.
Overview
- brand: DMG
- year: 2004
- MODEL: DMU 50 eVo
- production hours: 15652
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DMU 50 eVo
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: ITNC 530
Dimensions
- Machine Weight: 6500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 480 mm
- Z-axis Travel: 380 mm
Technical Specification
- Spindle Speed: 18000 RPM
- Taper Size: SK 40
Additional Information
Rapid traverse: 50 m/min
Tool holder: SK40 DIN 69871
Tool magazine: 32 positions
Additional equipment
Chip conveyor
Internal coolant supply: 40 bar with belt filter
Cleaning gun
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
