- DMG DMU 50 T Vertical Machining center

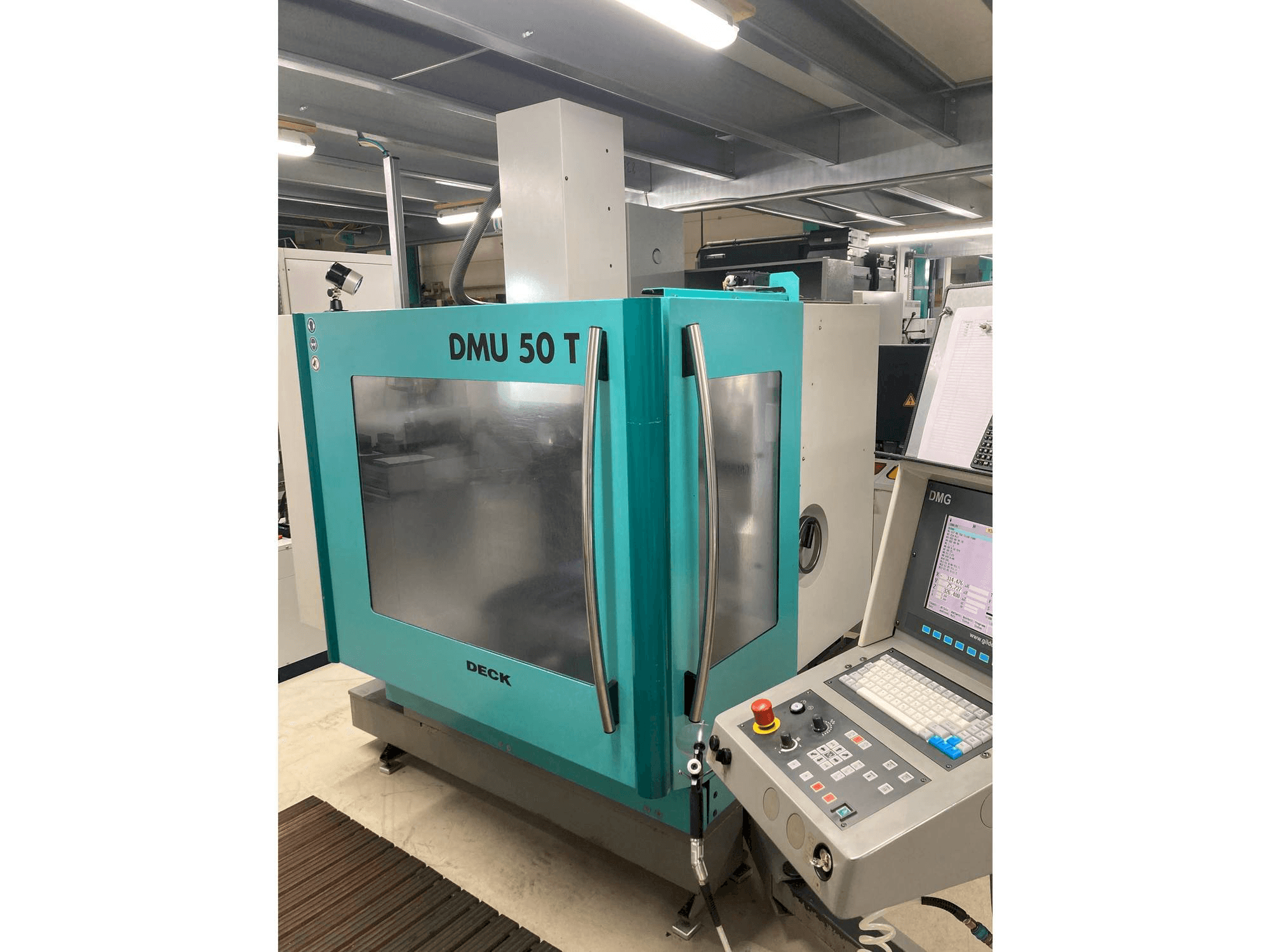

This DMG DMU 50 T Vertical Machining center was manufactured in the year 1997 in Germany. It is equipped with a Heidenhain MillPlus control unit. The machine has a spindle speed of 9000 rpm.
Overview
- brand: DMG
- year: 1997
- MODEL: DMU 50 T
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - DMG DMU 50 T
General Data
- Measurements width: 2000 mm
- Measurements depth: 1520 mm
- Measurements height: 2140 mm
- Machine weight: 3000 kg
Control Unit
- Model: MillPlus
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 20-9000 1/MIN
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
Additional Information
- Technical Machine Benefits:
- - Pull stud iso 7388 type b (can be easily converted by dmg)
- - The machine has a mechanical c- and b-axis with display on the screen
- - Software was updated from 2019 to the latest available version
- - In 2019 the machine was retrofitted for lan connection, the machine can be connected/connected to a network for external program transfer.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
