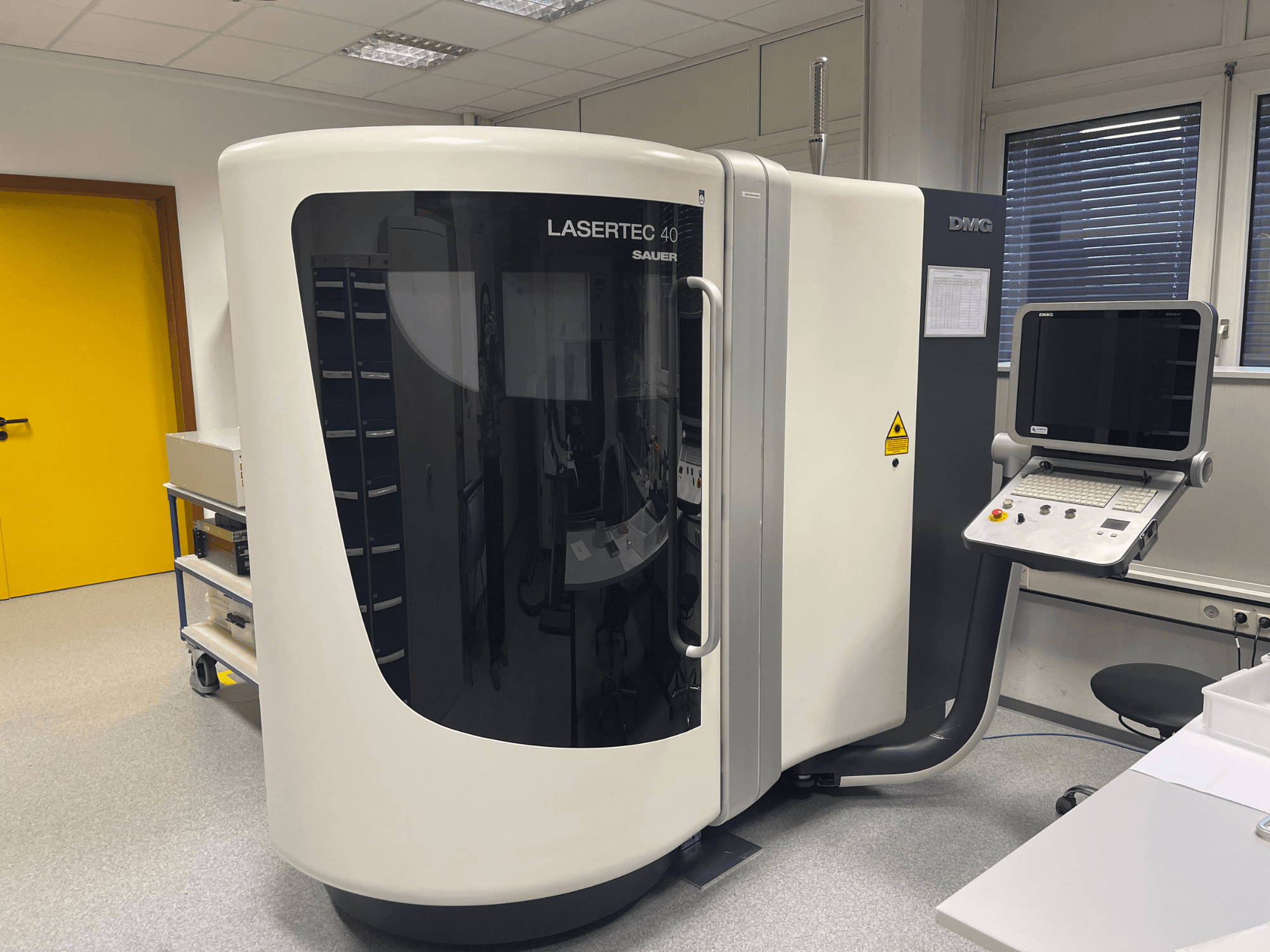

DMG - Lasertec 40 DE-OTH-DMG-2009-00001

Machine footprint (incl. operation/maintenance with extraction): Depth 3.5 m, Width 3.0 m, Height 2.5 m

Weight with X-Y table: approx. 2,500 kg

Machine power consumption (with laser and cooling unit): 16 kVA

Fuse: 40 A at 400 V

Operating voltage: 3/N/PE/400 V/230 V 50 Hz

Maximum permissible deviation: ±10%

Control voltage: 24 V DC

Permissible ambient temperature: +15°C to +35°C

Permissible relative humidity: max. 75% at 20°C

Travel range (with X-Y table): X = 400 mm (longitudinal), Y = 300 mm (transverse), Z = 500 mm (vertical)

Table size: 400 x 300 mm

Feed drive: Digitally controlled AC motor and ball screw in each linear axis

Maximum feed rate: X/Y: 15 m/min; Z: 12 m/min

Guides: Ball screw guides in all linear axes

Measuring systems: X, Y, Z indirect linear encoder

Machine accuracy: P = 0.010 mm (VDI/DGQ 3441)

Laser type: Picosecond laser

Average laser power: 50 W

Wavelength: 1064 nm

Scanner: Planar field lens; focal length 163 mm; field size 65 x 65 mm

Lubrication: Manual central lubrication

Electrical control cabinet: with cooling unit (integrated into the machine)

Cabin: Fully enclosed cabin including roof; laser safety screen (optionally multiple); optimal operator access
