DMG MORI CLX 350

Photo Gallery

DMG MORI - CLX 350GB-TUR-DMG-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI CLX 350 Lathe machine

Show in original language

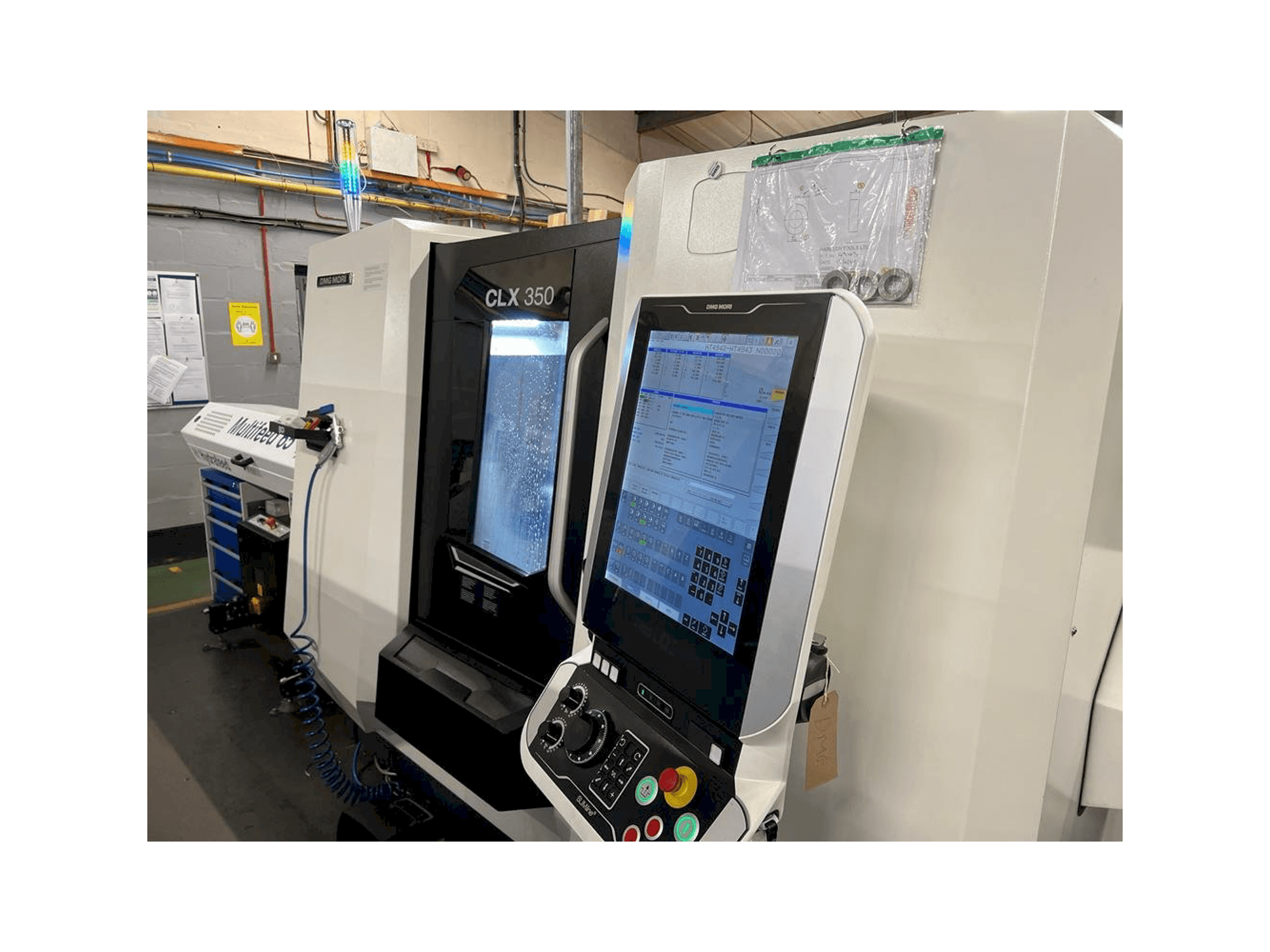

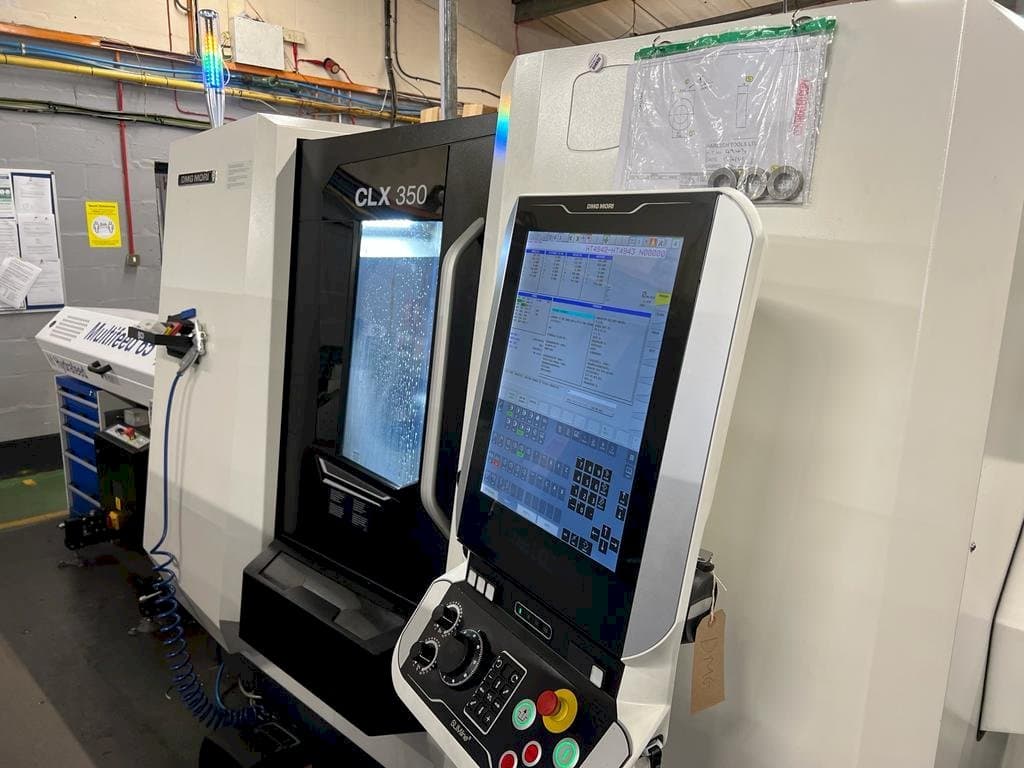

This DMG MORI CLX 350 Lathe machine was built in Germany in the year 2020. This 5 axis machine it is equipped with a FANUC control unit. This machine can perform with a spindle speed up to 5500 rpm. Includes a Barfeed Magazine Hydrafeed Multifeed 65. Machine in very good condition, low production hours.

Overview

brand: DMG MORI
year: 2020
MODEL: CLX 350
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DMG MORI CLX 350

General Data

Measurements width: 3400 mm
Measurements depth: 2271 mm
Measurements height: 2208 mm
Machine weight: 4700 kg

Control Unit

Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 242.5 mm
Y-AXIS Movement: +/- 40 MM
Z-AXIS Movement: 540 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 30

Additional Equipment

- Barfeed Magazine Hydrafeed Multifeed 65

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum cutting diameter 320mm
- - Swing over the cross-slide 360mm
- - Bar capacity 65mm
- - Chuck size 200mm
- - Milling motor power 5. 4kw
- - Milling rpm 5500 rpm
- - Spindle motor power 16. 5/11kw
- - Rapid feedrates xyz: 30 x 22. 5 x 36m/minute
- - Sub spindle max speed 5000rpm
- - C axis & milling, tool setter, coolant, y-axis, interlocked guards, low volt light, 3 jaw chuck, collets, magazine barfeed, collet chuck, swarf conveyor, c axis on sub spindle
Qualitative Machine Benefits:
- - Very good condition, low hours

Extra information

- 5 axis lathe wit C axis, Y axis and milling function

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
