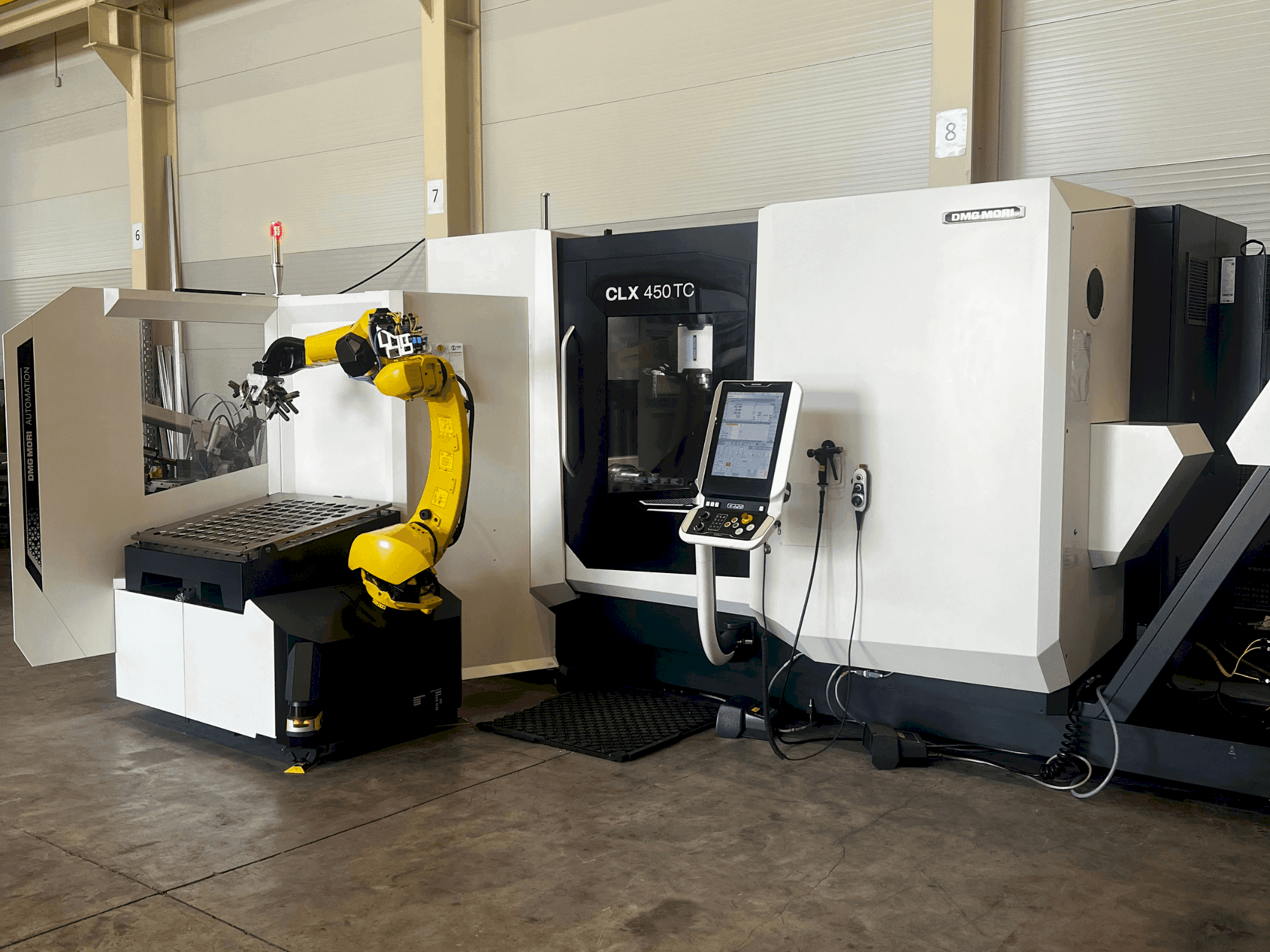

This 5-axis DMG MORI CLX 450 TC + Robo2GO was manufactured in 2024. It features a universal turning/milling center with a main spindle speed of up to 5000 rpm and a milling spindle speed of up to 12000 rpm. The machine includes a B-axis of ±120°, Y-axis travel of ±100 mm, and a 30-fold chain magazine. It's equipped with Siemens 840D sl control for precision. Consider the opportunity to buy this DMG MORI CLX 450 TC + Robo2GO turn-mill centre. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2024
- MODEL: CLX 450 TC + Robo2GO
- application type: Turning
- Location: Hungary
- machine type: Turn-Mill Centre
Technical Information - DMG MORI CLX 450 TC + Robo2GO
Dimensions
- Machine Depth: 3900 mm
- Machine Height: 2470 mm
- Machine Weight: 10000 kg
Movement
- Number of Axes: 5
Technical Specification
- Spindle Power: 14 kW
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Dynamic two-pressure clamping for the main and counter spindle
- Tailstock function for the counter spindle with foot switch
Machine Benefits
Technical Machine Benefits
- Torque: 275/345 nm
- Hollow clamping device: Ø67 mm
- B-axis: ±120°
- Y-axis: ±100 mm
- 30-fold chain magazine
- Tailstock: hydraulically operated with foot control pedal
- Document no. : 4224449
Extra Information
Additional Information Power: 11 kVA Max Input Current: 16 A Short-Circuit Current: 1.25 kA Max Voltage: 440 V ±10% Control Voltage: 230 V Signal Voltage: 24 V Tools Turning-/milling spindle Drive power: 8.8/10.5 kW Torque: 73/90 Nm Speed range: 0-12000 rpm Reception: HSK-A 63 DIN 69893
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
