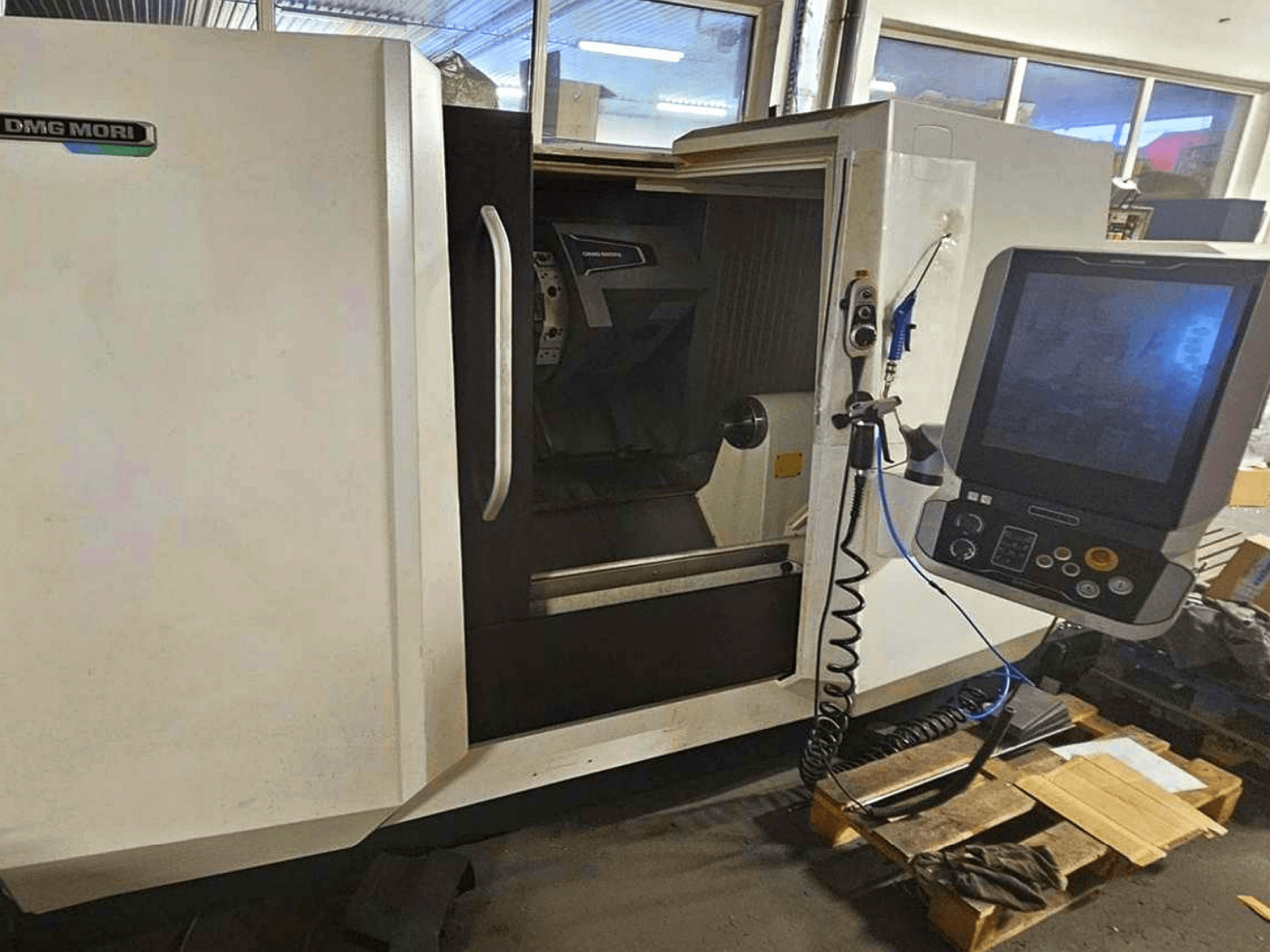

This 4-axis DMG MORI CLX 450 V4 was manufactured in 2021. It features a maximum turning diameter of 400 mm and a turning length of 800 mm. The machine is equipped with a Siemens Sinumerik 840D control and includes a turret with 12 stations, all with driven tools. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V4 CNC turning center we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2021
- MODEL: CLX 450 V4
- production hours: 735
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG MORI CLX 450 V4
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840 D
Dimensions
- Machine Height: 2100 mm
- Machine Length: 4400 mm
- Machine Weight: 5900 kg
- Machine Width: 1900 mm
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 800 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
Additional Information
Working range:
Max. turning diameter: 400 mm
Max. turning length: 800 mm
Swing over cross slide: 320 mm
Axes:
X, Z, Y, C
C axis: full interpolation
Main spindle:
Spindle nose: A8

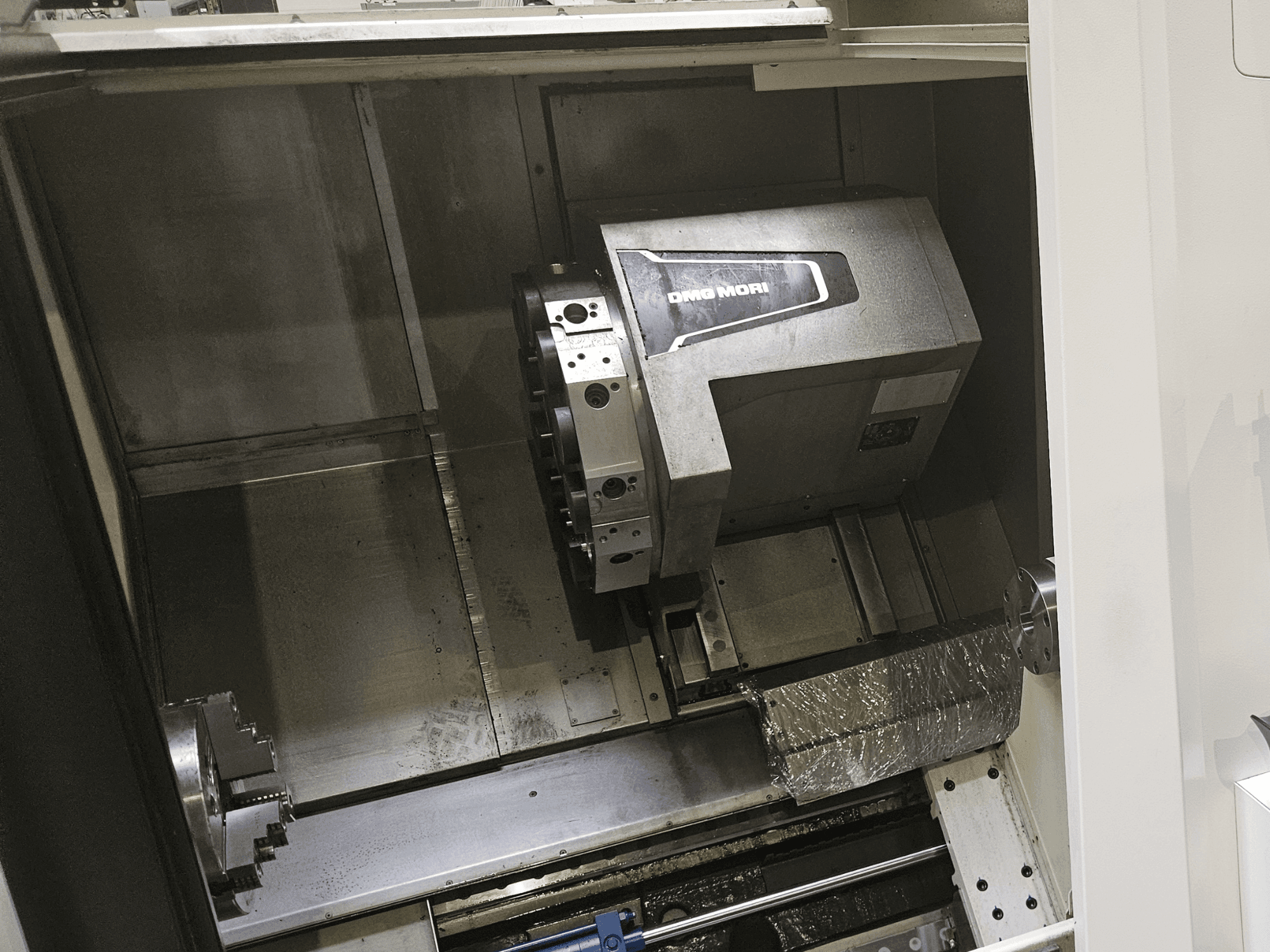

Turret and tools:
12 stations
All stations with driven tools
Performance:
Rapid traverse (X/Y/Z): approx. 24 / 10 / 30 m/min
Machine size:
Power supply: 400 V / 50 Hz
Condition and notes:
Checked before disconnection; very good condition
All functions working properly (turret, driven tools, handwheel, coolant system)
No mechanical damage found in bearings, ball screws, linear guides, or drive belts
Geometry within manufacturer’s tolerance:
Turret parallelism to Z-axis: 0.018 mm
Alignment: 0.015 mm / 0.011 mm
Spindle correctly aligned (no tilt)
No signs of collisions on turret, chuck, or tailstock
Machine complete with all equipment and options
Additional equipment
Tailstock
Chuck
Measuring probe
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
