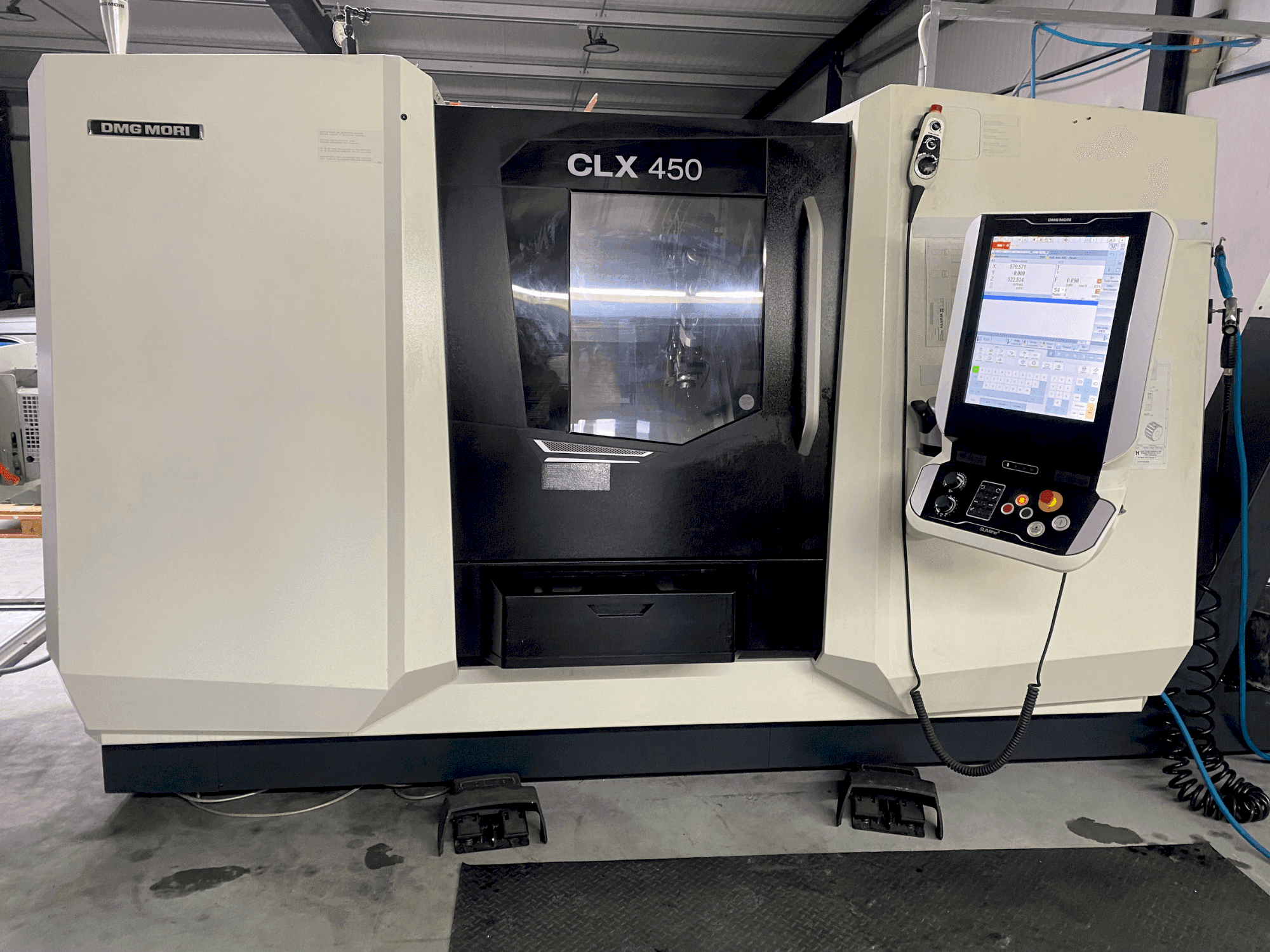

This DMG MORI CLX 450 V6 Lathe was manufactured in the year 2019 and has 3200 spindle hours. The machine disposes of a main spindle and a counter spindle. This machine is equipped with a SIEMENS control.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: CLX 450 V6
- production hours: 3200
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: DE-TUR-DMG-2019-00002
Technical Information
Control Unit
- Brand: SIEMENS
Main drive
- Number of spindles: 2
- Spindle speed range: 4000 1/MIN
- Spindle motor power: 25.5 kW
Movement
- X-AXIS Movement: 276 MM
- Y-AXIS Movement: 830 MM
- Z-AXIS Movement: +/- 60 MM
Additional Information
- Technical Machine Benefits:
- - Main spindle: a2-8" with ac motor, chuck flushing for the main spindle, highly dynamic spindle drive with 25. 5 kw, 426 nm (at 40% ed) and 4000 rpm, 3200 spindle hours
- - Counter spindle a2-6", designed as motor spindle ism 52 14 kw(at 40% ed) and 5000 rpm, external chuck flushing for the counter spindle, tailstock function, adjustable thrust force during cycle: 1. 5-6. 0 kn
- - Optional y-axis +/- 60mm and counter spindle for excellent turning / milling, chip tray
- - Hollow clamping device, bar passage diameter 80mm as standard and turret with 12 tool stations vdi40 + 6 bt stations, workpiece pick-up device for parts up to d80x200mm and a max. Weight of 4kg
- - 12 bar / coolant system: high-pressure pump 12 bar, double cartridge filter for cooling lubricant, coolant spray gun 5 bar, mechanical oil mist separator type afs 600
- - Manual tool measuring device in the work area, make marposs
- - Alternating speed technology cycle
- - Digitalization products dmg mori connectivity: digital manufacturing package iotconnector, machine data connector (mdc), netservice please note: bar feeder included, optional: jaws, hainbuch clamping system main spindle, driven tools, tool holders
- - Spindle speed: counter spindle: 5. 000 rpm, main spindle 4. 000 rpm
- Qualitative Machine Benefits:
- - 3d control technology with dmg mori multi-touch 19" control panel for siemens 840d and shop turn or fanuc i-series cnc with 19" screen and manual guide
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
