DMG MORI - CLX 350 V6NO-TUR-DMG-2019-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI CLX350 V6 For Sale | gindumac.com

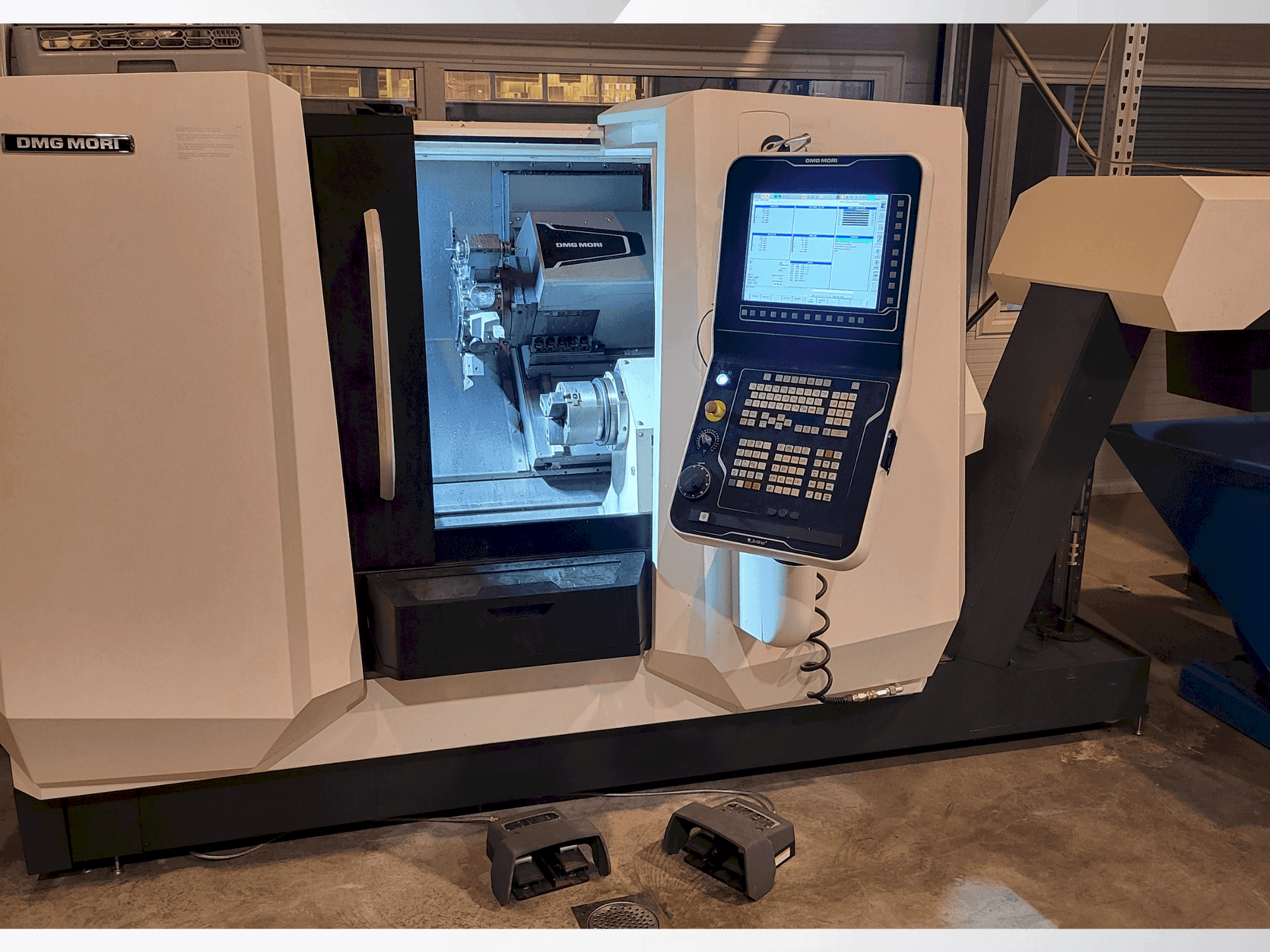

This DMG MORI CLX350 V6 was manufactured in 2019. A horizontal turning machine featuring a Fanuc controller, Ø210 and Ø175 chucks, a manual tool measuring arm, part-catcher, and bar-feeder interface. If you are looking to get high quality turning capabilities consider the DMG MORI CLX350 V6 machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: CLX 350 V6
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DMG MORI CLX 350 V6
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Depth: 2800 mm
- Machine Height: 1850 mm
- Machine Weight: 4400 kg
Additional Information
Additional equipment
- Manual tool measuring arm
- Part-catcher
- Bar-feeder interface
- Number of Tool Stations: 12 / Shank Diameter According to DIN 69880: 30 mm / Number of Driven Tools: 12 / Maximum Speed: Up to 5000 rpm / Maximum Power (40% DC): 5.65 kW
- Pneumatic workpiece ejection device. / Tool monitoring system (Fanuc). / Tool monitoring system (Fanuc). / Direct measuring system for X/Y axes. / High-pressure pump (12 bar). / Manual tool measuring probe (MARPOSS). / Bar package and bar interface.
- Chip conveyor with side discharge.
Machine Benefits
Technical Machine Benefits
- Workpiece Ø210 and Ø175 chuck
- Swing diameter over guideways: 580 mm / swing diameter over guideways: 580 mm
- Work spindle (left): spindle bore: 73 mm / bar diameter: 65 mm / spindle diameter on front bearing: 120 mm / motor power (100% dc): 11 kw / motor power (40% dc): 16. 5 kw / speed range: up to 5000 rpm / torque (100% dc): 112 nm / maximum torque (40% dc): 168 nm / c-axis speed: up to 100 rpm / c-axis holding torque: 168 nm
- Work spindle (right): spindle bore: 45 mm / spindle diameter on front bearing: 90 mm / motor power (100% dc): 12. 6 kw / motor power (40% dc): 16. 2 kw / speed range: up to 5000 rpm / torque (100% dc): 48 nm / maximum torque (40% dc): 62 nm / c-axis speed: up to 300 rpm / c-axis holding torque: 62 nm
- Longitudinal stroke: 465 mm / transverse stroke: 185 mm / y-axis (vertical): ±40 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
