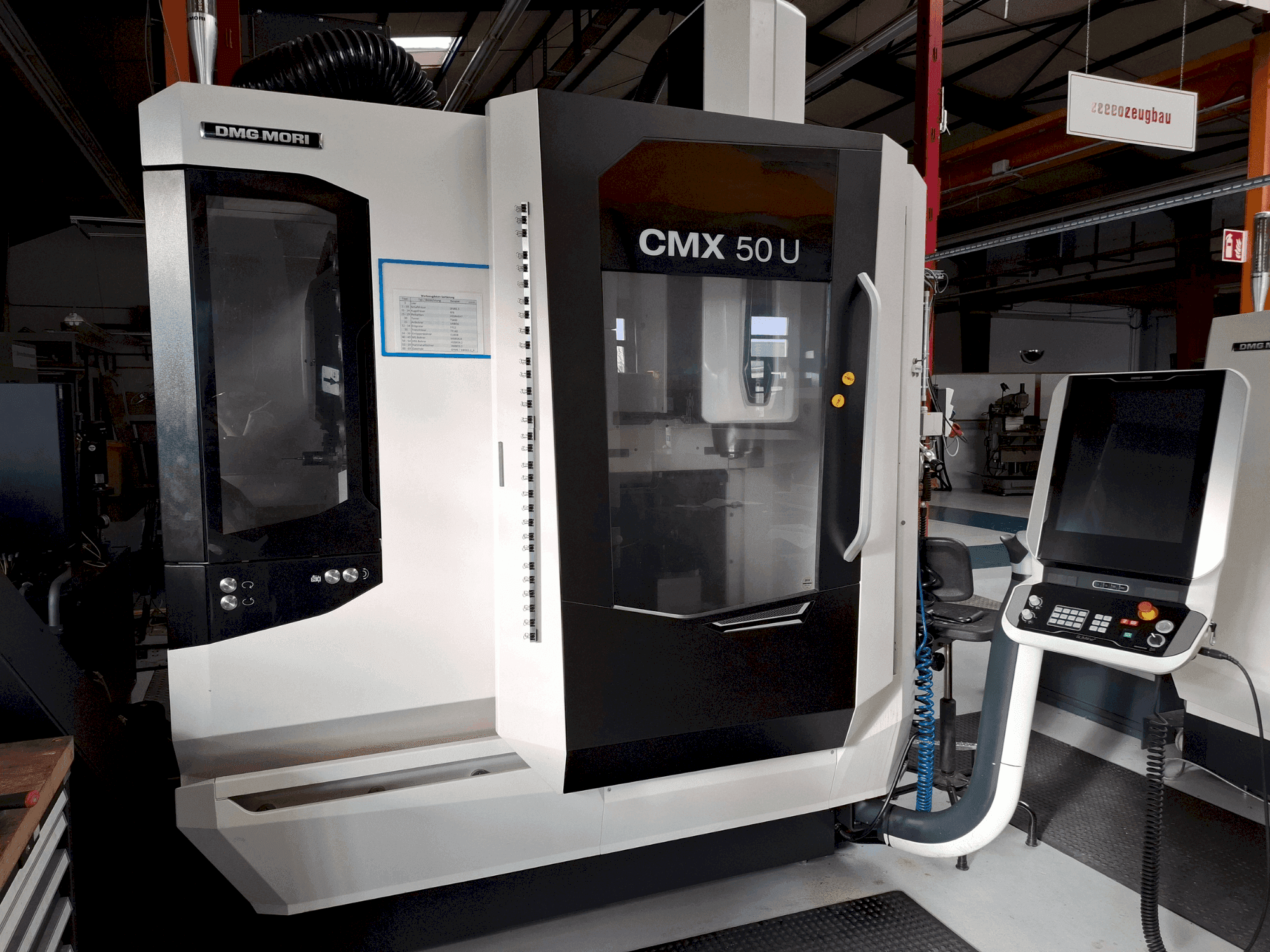

DMG MORI CMX 50U

Photo Gallery

DMG MORI - CMX 50UDE-MIL-DMG-2019-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CMX 50U For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI CMX 50U vertical machining center was manufactured in 2019. If you are looking to get high-quality milling capabilities, consider the DMG MORI CMX 50U machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2019
MODEL: CMX 50U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN TNC 620 S

Technical Information - DMG MORI CMX 50U

General Data

Measurements width: 3035 mm
Measurements depth: 2910 mm
Measurements height: 2710 mm
Machine weight: 4700 kg

Control Unit

Brand: HEIDENHAIN TNC 620 S

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 13 kW
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: 5° / +110°
C-AXIS Movement: ±360°

Tools

Type of tool holder: SK40 / BT40

Clamping unit

Clamping force: 10 kN

Additional Information

Additional equipment

Coolant Spray Gun
Infrared Measurement Probe
Paper Band Filter with Tank Capacity 600L
Chip Conveyor (Scraper Band) with Tank Capacity 250L (Left)
Internal Coolant Supply 40 Bar
Bed and ATC (Automatic Tool Changer) Flushing via M-function
Oil and Emulsion Mist Separator
Cabin Roof
Blow Air through Spindle Center (can be activated)

Machine Benefits

Technical Machine Benefits

Tool magazine for 30 tools with double gripper
Speed range: continuously programmable (20–12000 rpm)
Rated power (100% duty cycle): 9 kw
Maximum spindle torque (40% duty cycle): 83 nm
Rated torque (100% duty cycle): 57 nm
Feed rate up to 30000 mm/min (continuously programmable)
Rapid traverse: 30 m/min
Footprint (l × w): 5500 × 6020 mm

Extra Information

Chip Conveyor: Dimensions: Length: 3070 mm, Width with coolant tank: 1636 mm, Height: 1360 mm Weight: 525 kg Tank Capacity: 250 liters Belt Filter System: Dimensions: Length: 1816 mm, Width: 1331 mm, Height: 1803 mm Filling volume: 600 liters Internal Coolant Supply: Pressure: 40 bar Flow rate: 19 l/min Oil/Emulsion Mist Separator: Dimensions: Length: 778 mm, Width: 400 mm, Height: 520 mm Weight: 50 kg Airflow: 600 m³/h Motor Power: 0.5 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
