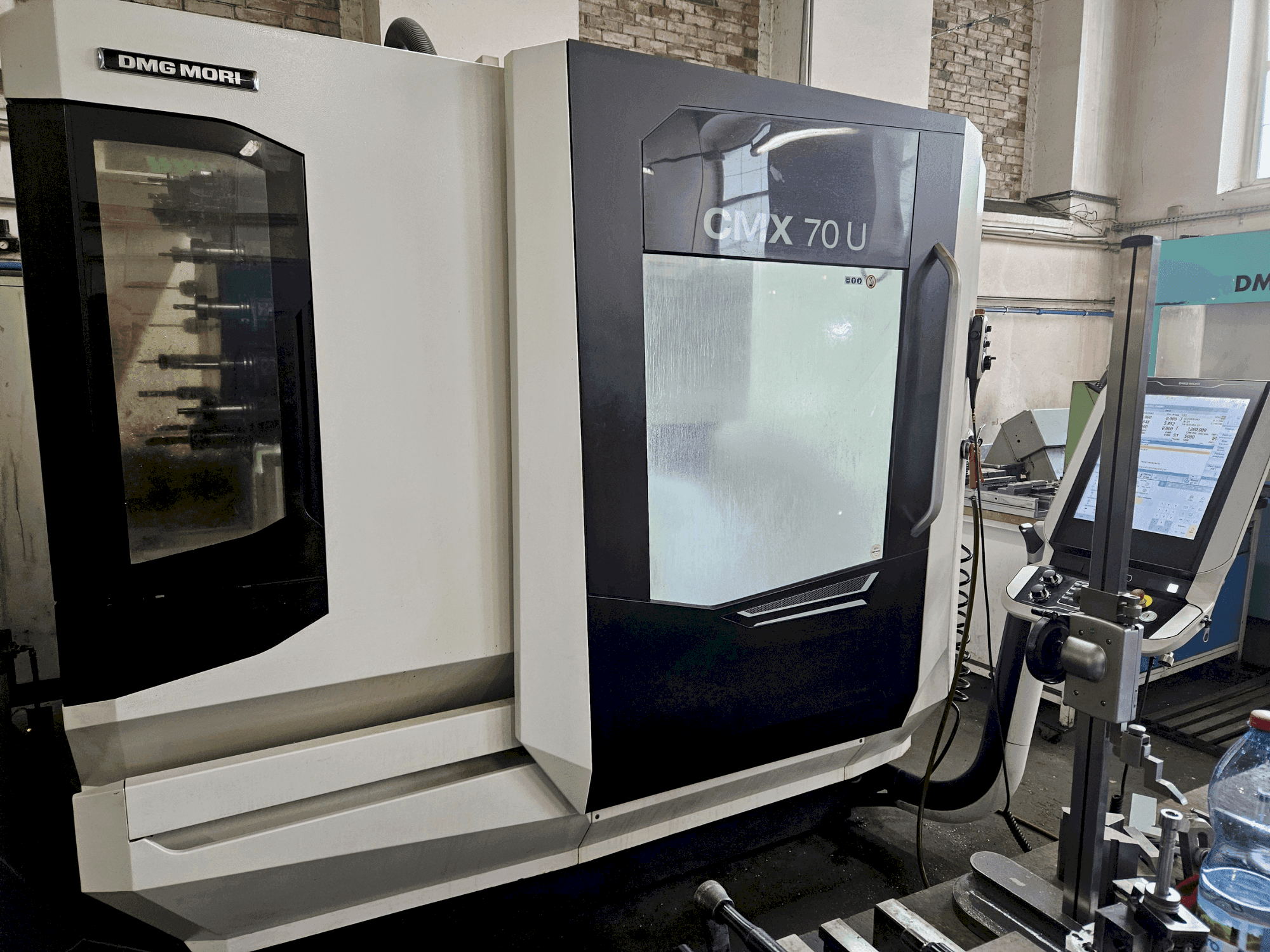

DMG MORI CMX 70U

Photo Gallery

DMG MORI - CMX 70UPL-MIL-DMG-2018-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CMX 70U For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI CMX 70U vertical machining center was manufactured in 2018. It features a 12,000 rpm spindle, a 30 m/min rapid traverse speed, and a 30-position chain tool magazine. The tilting rotary table enhances flexibility with B-axis and C-axis rotations. Ideal for processing copper and aluminum alloys. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 70U machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: DMG MORI
year: 2018
MODEL: CMX 70U
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI CMX 70U

Control Unit

Brand: SIEMENS
Model: Slimline Multi Touch 19”

Main drive

Spindle speed range: 20 - 12000 1/MIN
Spindle motor power: 13/9 kW (40/100% ED)
Tool taper: SK40 DIN 69871
Number of axis: 3+2

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 520 mm

Additional Information

Additional equipment

Coolant-air switching with M function (external)
Chip tray
probes are included
Tools/tool holders are not included
Standard specs as on the left side
Rotary Tilting Table: Table D 800x620 // B-axis rotation range: -10°/+95° // C-axis rotation range: 360°
Rotary Tilting Table:Table D 800x620 B-axis rotation range: -10°/+95° C-axis rotation range: 360°
Tool Magazine:30-position chain magazine with double gripper
Coolant-Air Switching:Coolant/air switching via M function (external)

Machine Benefits

Qualitative Machine Benefits

Very good working condition. Always work with soft metals only brass, copper and aluminum only

Technical Machine Benefits

Rapid traverse speed on linear axes: 30 m/min
The machine processes alloys of copper and aluminum.
It is fully operational, connected, and with a possibility to perform tests.
30-position chain tool magazine with double gripper
Working hours: power on: 12363h, spindle 5784h
Direct measuring system x, y, z
Spindle speed range:spindle speed: 20 to 12,000 rpm / main drive ac:power: 13/9 kw (40/100% dc) / tool holder:sk40 din69871 / tool clamping according to din 69872
Internal coolant supply: 12 bar / chip conveyor with left-side tank capacity: 300 l / work area rinsing with m function; arm and magazine rinsing / manual work area rinsing - pistol / manual control panel (handwheel) / enclosed work area (roof) / 4-color signal lamp
Direct measurement system for x, y, z axes (linear scales) with air purge for the measurement system.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
