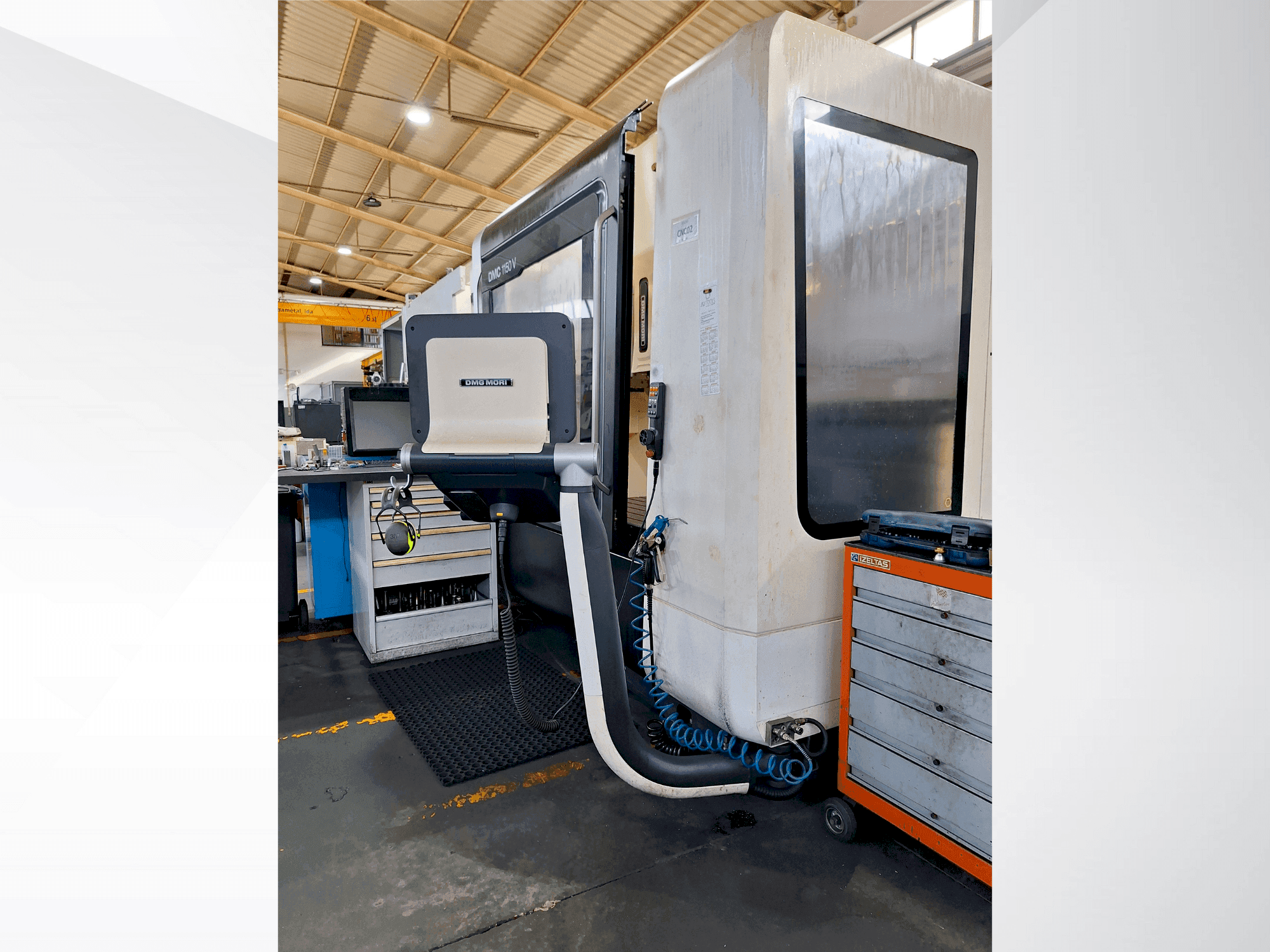

Front view of DMG MORI DMC 1150 V  machine

DMG MORI - DMC 1150 VPT-MIL-DMG-2016-00002

89,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DMG MORI DMC 1150 V was manufactured in 2016. A robust vertical machining center featuring a 1150 mm X-axis, 700 mm Y-axis, and 550 mm Z-axis. It boasts a rapid traverse of 42 m/min and a speed range up to 14,000 rpm. Equipped with a Heidenhain TNC 640 control, 30-position SK40 tool magazine, and a chip extractor system. If you are looking to get high-quality milling capabilities consider the DMG MORI DMC 1150 V machine we have for sale. Contact us for more information.

Overview

  • brand: DMG MORI
  • year: 2016
  • MODEL: DMC 1150 V
  • application type: Milling
  • Location: Portugal
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 1150 V

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 640

Main drive

  • Spindle speed range: 20 - 14000 1/MIN
  • Tool taper: ISO40/SK40 DIN69871
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1150 mm
  • X-AXIS Rapid traverse: 42 m/min
  • Y-AXIS Movement: 700 mm
  • Y-AXIS Rapid traverse: 42 m/min
  • Z-AXIS Movement: 550 mm
  • Z-AXIS Rapid traverse: 42 m/min

Table

  • Outer length: 1460 mm
  • Outer width: 750 mm

    Additional Equipment

    • - Infrared touch probe Make: Renishaw PP 60 optical (OMP 60)
    • - Tool length and diameter measurement
    • - Automatic cleaning of tool holders using an air jet
    • - Tool cone calibration equipment
    • - Safety package for power supply failure
    • - Overvoltage limiter
    • - Undervoltage monitoring with rapid braking activation
    • - Electronic handwheel
    • - Chip extractor (chip scraper)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Screen size: ergoline® control, 19” screen
        • - Tool holder: in accordance with din69872
        • - Tool changer positions: 20
        • - Tool magazine positions: 30 sk40
        • - Tool storage: magazine with positions and double gripper, incl. Manual direct loading
        • - Tank capacity: 310 l
        • - Discharge height: 950 mm
      • Qualitative Machine Benefits:
        • - Coolant wash in the work area
        • - Coolant change area
        • - Drill gun for chip removal

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
