DMG MORI DMP 70 with WH3
DMG MORI - DMP 70 with WH3
2021
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Used Vertical Machining centre DMG MORI DMP 70 with WH3 (2021) for sale | GINDUMAC.COM

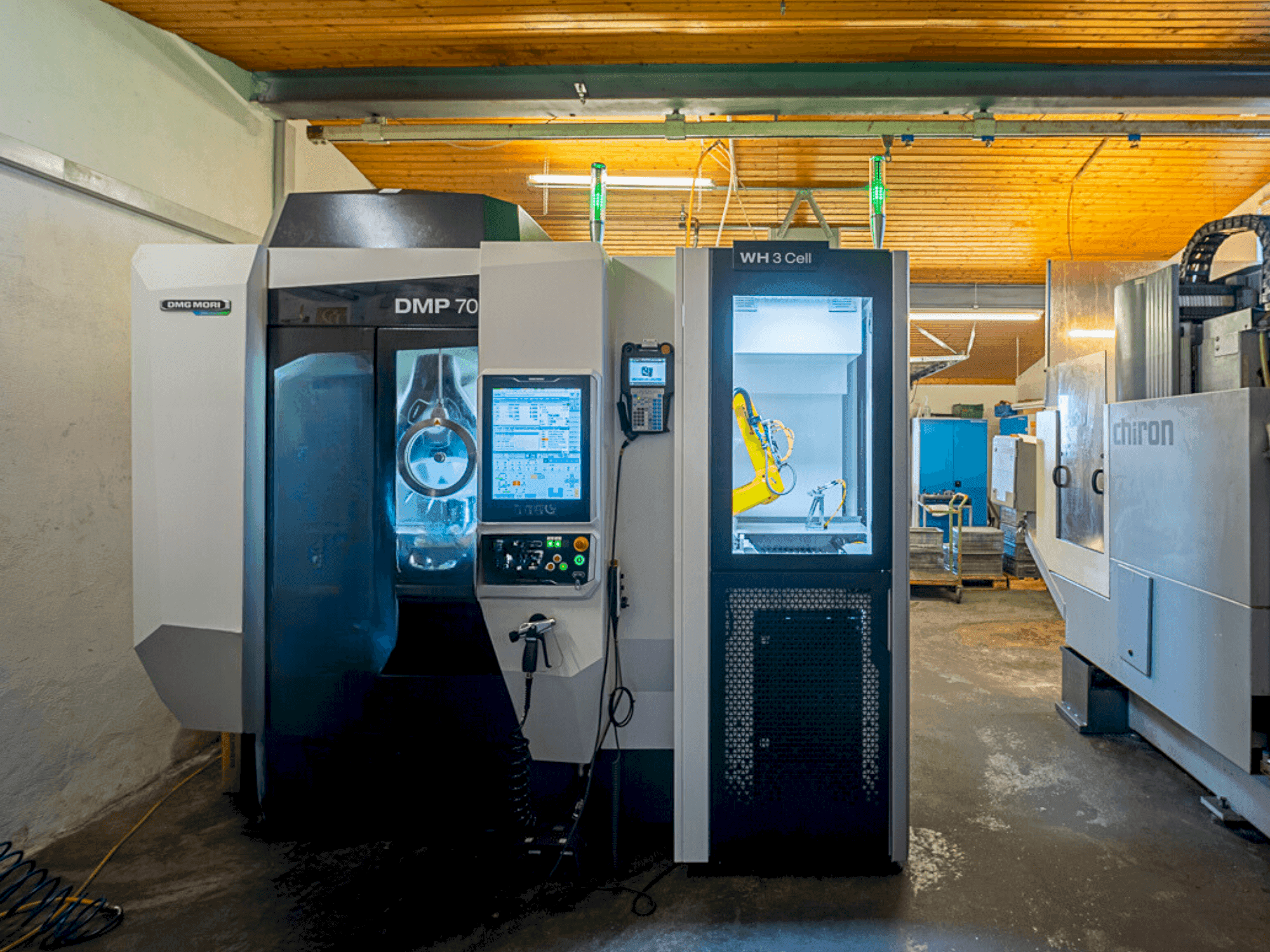

This DMG MORI DMP 70 with WH3 Vertical Machining centre was manufactured in the year 2021. It is equipped with a DMG MORI control unit. The machine disposes of a spindle with a speed range of 24000 rpm, a internal cooling system and a chip conveyor. Contact us anytime for further questions.
Overview
- brand: DMG MORI
- year: 2021
- MODEL: DMP 70 with WH3
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: DE-MIL-DMG-2021-00002
Technical Information
Control Unit
- Brand: SIEMENS
- Model: 840d Solutionline
Main drive
- Number of spindles: 1
- Spindle speed range: 20 to 24000 rpm 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 700 MM
- Y-AXIS Movement: 420 MM
- Z-AXIS Movement: 380 MM
Table
- Outer length: 840 mm
- Outer width: 420 mm
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Tool holder ISO7388-2 J30
- - Tool changer 25 places
- - Additional tank 600l
- - Oil and emulsion mist separator
Additional Information
- Technical Machine Benefits:
- - Internal cooling system with 40 bar.
- - Paper belt filter.
- - Ikz 40; 40 bar/ 23 l/min.
- - Torque max. 78 nm.
- - Operating mode 4.
- - Blast air through spindle center.
- - Electronic handwheel.
- - Special 3-fold gripper unit type schunk pgn plus p64-1.
- - Workpiece loading and unloading system qh 3 cell with 6-axis industrial robot.
- - Blum efficiency package: tc52 infrared touch probe
- - Machine still under power.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
