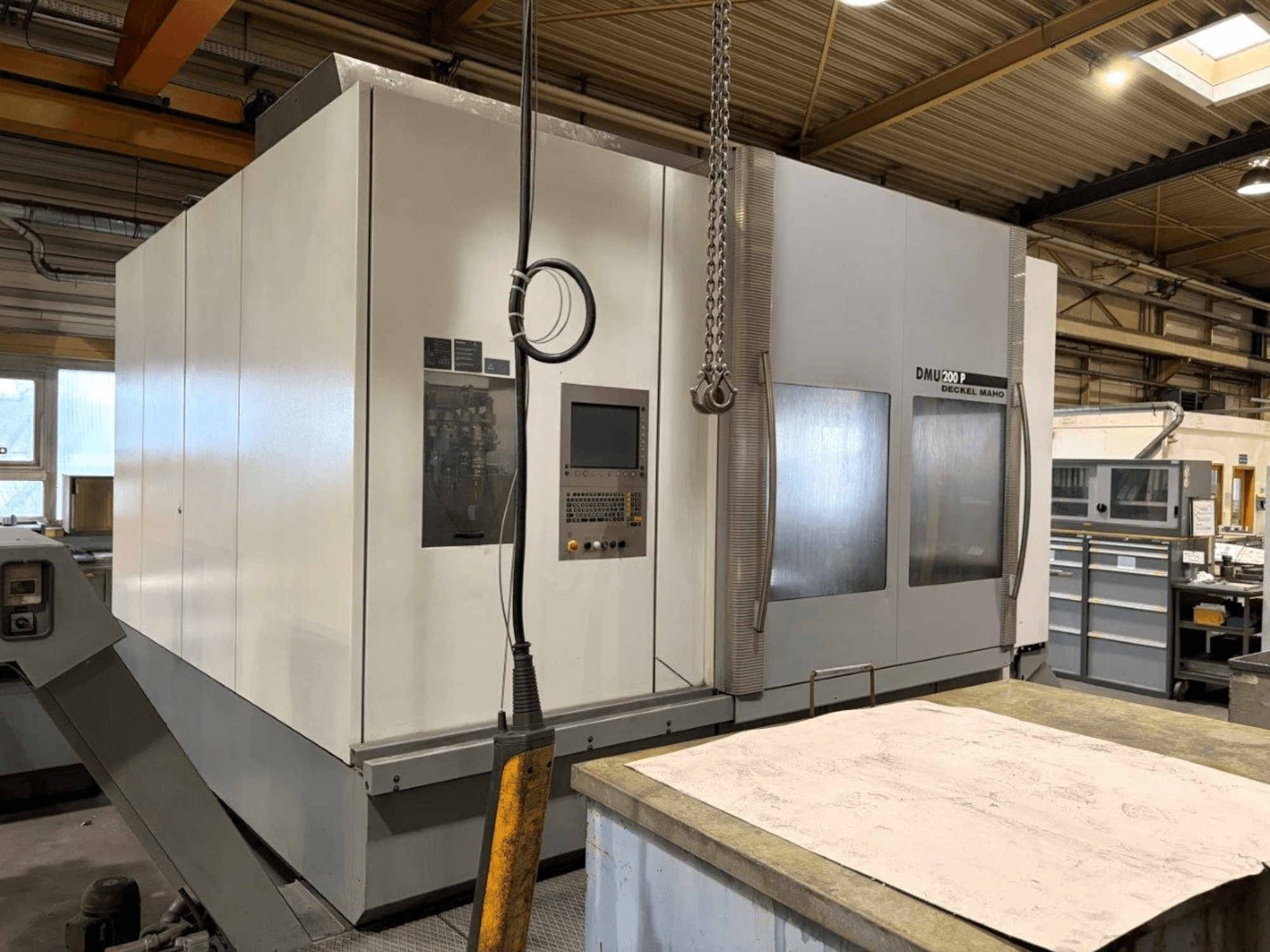

This 5-axis DMG MORI DMU 200 was manufactured in 2005. It features an impressive X-axis travel of 1,800 mm, Y-axis travel of 2,000 mm, and Z-axis travel of 1,100 mm. The machine includes a robust table size of 2,000 x 1,700 mm with a maximum load of 6,000 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 200 universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2005
- MODEL: DMU 200
- production hours: 36033
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 200
Control Unit
- Control Brand: HEIDENHAIN
Movement
- Number of Axes: 5
- X-axis Travel: 1800 mm
- Y-axis Travel: 2000 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Max. Tool Weight: 20 kg
Additional Information
Working hours (machine on): 91,558 h
Feed drive: AC brake motors (X/Y/Z)
Feed speed (X/Y/Z): 20–10,000 mm/min (steplessly programmable)
Rapid traverse: X 60 m/min; Y/Z 40 m/min
Setup mode feed (X/Y/Z): 20–2,000 mm/min
Tool interface options: SK 50 / SK 40 (DIN 69871); HSK-A100 / HSK-A63 / HSK-E50 (DIN 69893)
Tool changer magazine: 60 / 120 / 180 slots
Max tool diameter: 110 mm (all pockets full); 230 mm (adjacent pockets empty)
Max tool length: 450 mm (385 mm with breakage monitoring)
Table type 1: Fixed table DMU 200 T — 2,000 x 1,700 mm; load 6,000 kg
Table type 2: NC round table DMU 200 P — Ø 1,700 x 1,400 mm; load 5,000 kg
NC table rotation speed: 10 rpm
Table holding torque (100% ED): 12,389 Nm
Resolution (X/Y/Z): 0.001 mm
Positioning tolerance (X/Y/Z): 0.010 mm
Power supply: 400 V, 50 Hz, 55 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
