DMG MORI - DMU 50 ecolineGB-MIL-DMG-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG MORI DMU 50 ecoline Vertical Machining Center

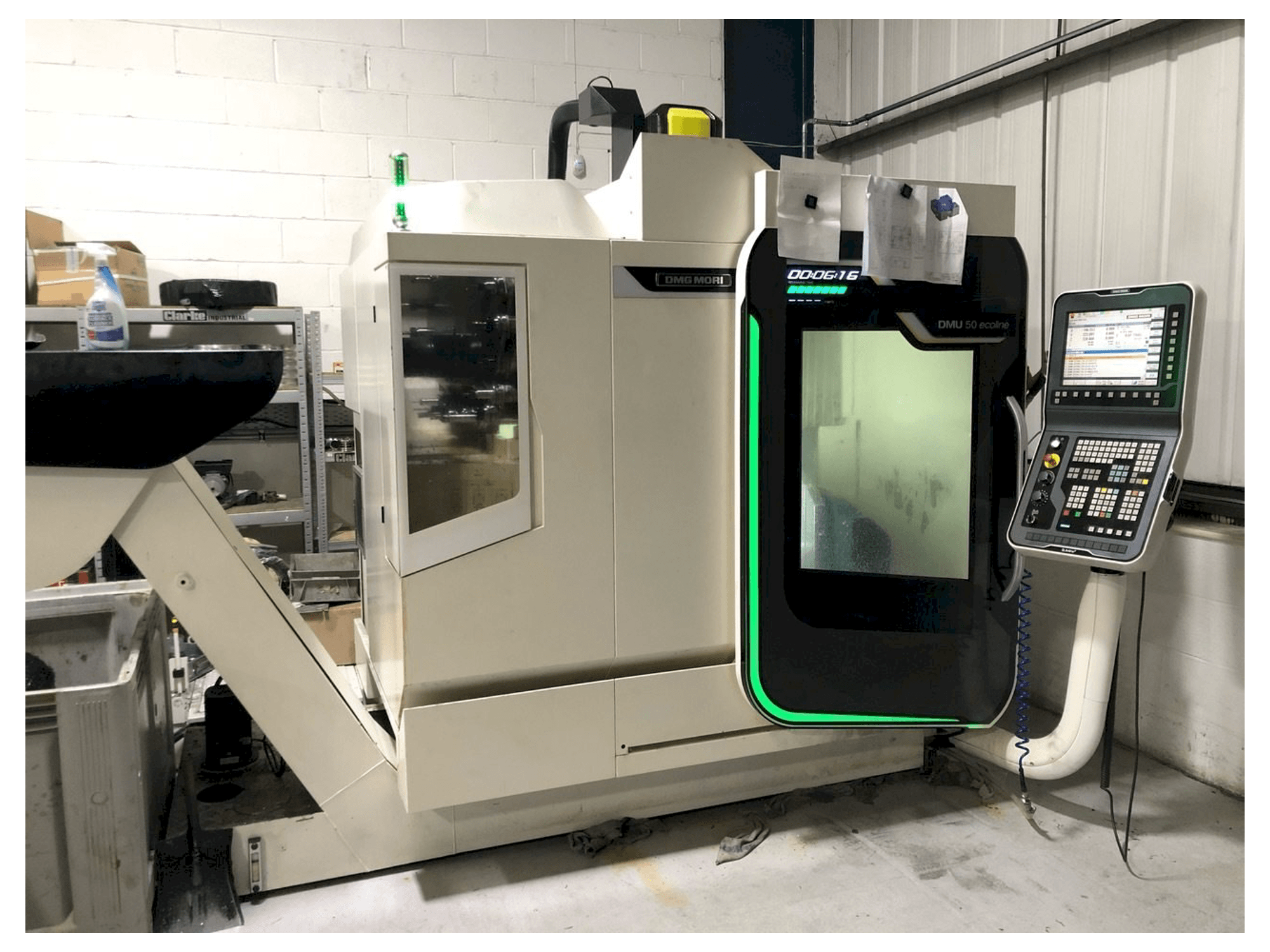

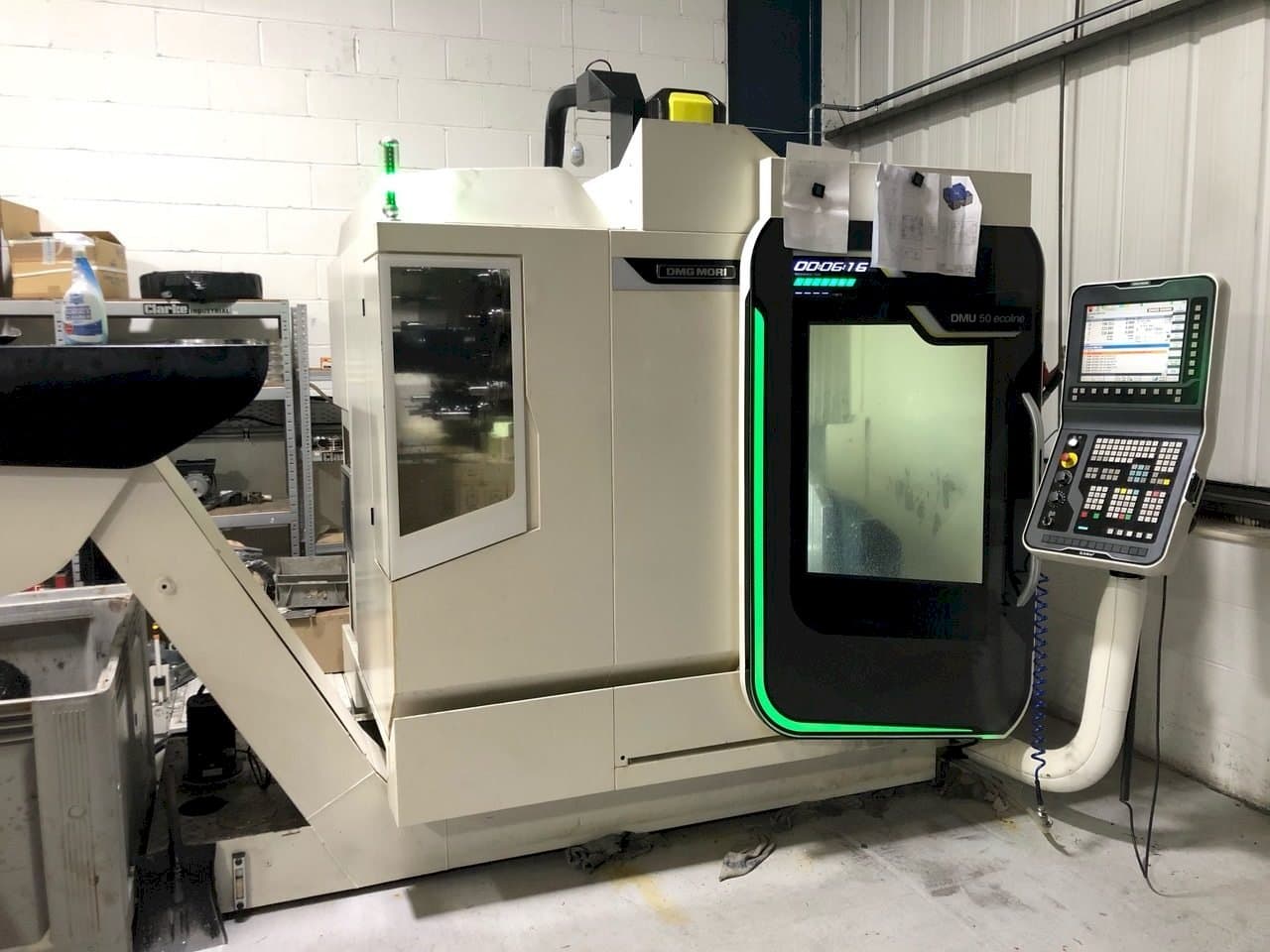

This DMG MORI DMU 50 ecoline Vertical Machining Center was made in 2014 in Germany. It is operated through a Siemens 840D control unit. This 5 axis machine can works with a spindle speed up to 12000 rpm and a table dimensions of 630 x 500 mm. It includes swarf conveyor, interlocked guards and a low volt light.
Overview
- brand: DMG MORI
- year: 2014
- MODEL: DMU 50 ecoline
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI DMU 50 ecoline
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 2615 mm
- Machine Weight: 4300 kg
- Table Length: 630 mm
- Table Width: 500 mm
Movement
- X-axis Travel: 500 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 400 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 30
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Includes machine manual
- Simultaneous axis operation
Technical Machine Benefits
- B axis movement: -5 / +110 degrees
- C axis: 360 degrees (0. 001 degree increment)
- Number of axis controlled: 3+2
- Rapid feedrates: 24 m/min
- Tool change time (chip to chip): 8 sec.
- Swarf conveyor
- Tool setter
- Interloked guards
- Low volt light
- Coolant
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
