DMG MORI - DMU 50DE-MIL-DMG-2016-00006

Name: DMG MORI DMU 50
Brand: DMG MORI
SKU: DE-MIL-DMG-2016-00006
Price: 94000 EUR
Availability: InStock

94,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 50 For Sale | gindumac.com

Show in original language

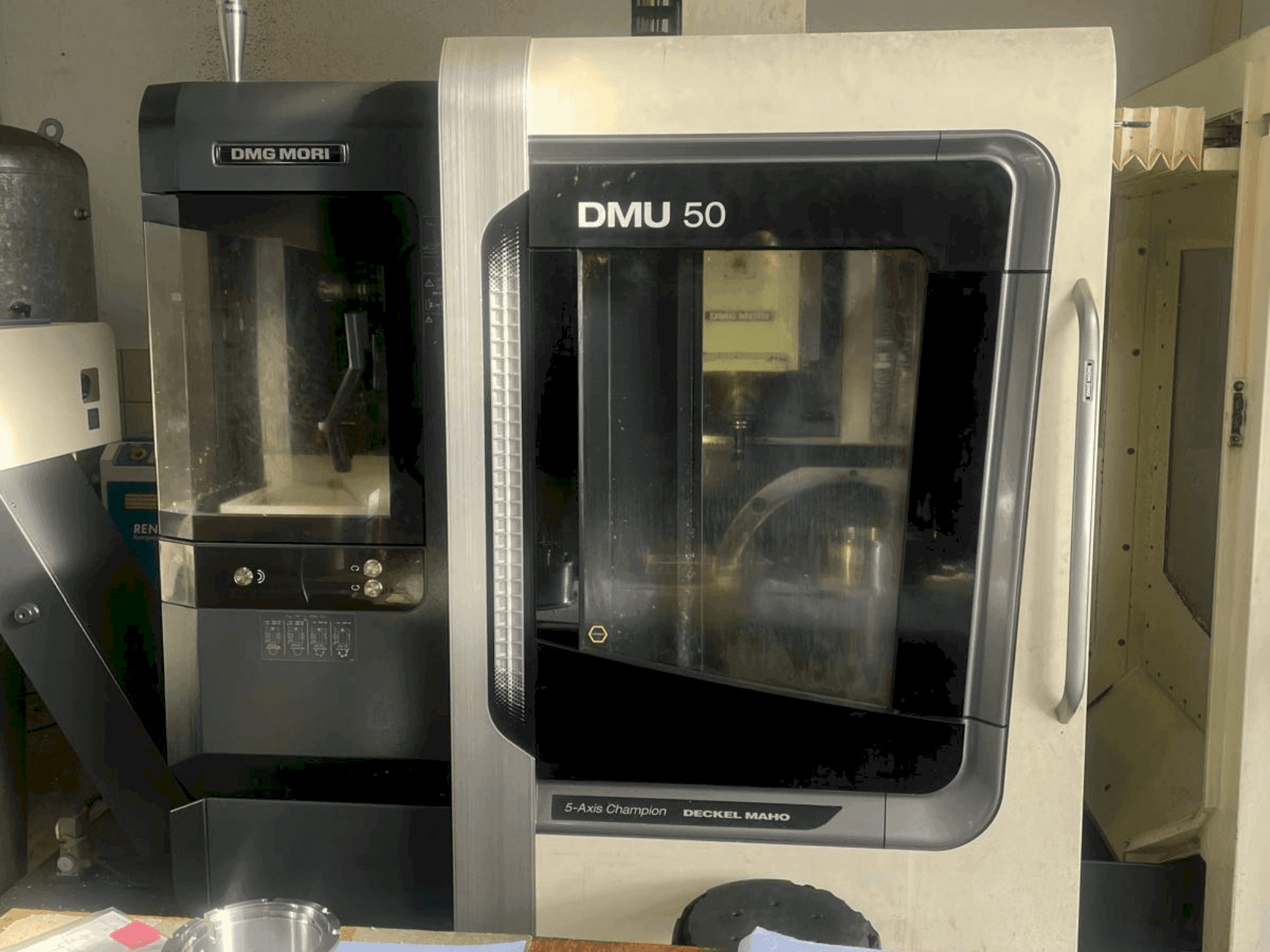

This 5-axis DMG MORI DMU 50 was manufactured in 2016, featuring a robust design with a travel range of X/Y/Z 500/450/400 mm and a rapid traverse of 30 m/min. It operates at speeds from 20 to 14,000 rpm with an inline spindle power of 20.3 kW. The machine includes a 60-position SK40 tool magazine, swivel rotary table for simultaneous machining, and a Heidenhain iTNC 530 HSCi control system. Contact us for more information about this machine.

Overview

brand: DMG MORI
year: 2016
MODEL: DMU 50
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 50

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530 HSCi

Main drive

Spindle speed range: 20 to 14000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm

Additional Information

Additional equipment

Infrared measuring probe: Heidenhain TS 649 DMG
3D quickSET toolkit
4-color signal light
Cabin roof: Crane loading possible by manually opening the middle roof segment
Operating mode 4: Process monitoring during production
Replacement spindle

Machine Benefits

Technical Machine Benefits

Rapid traverse: 30 m/min
Swivel rotary table with simultaneous machining capability
Clamping surface: diameter 630 x 500 mm
Swivel range: -5 to +110°, 360° rotary axis
Tool clamping: according to din 69872
60-position sk40 tool magazine
Vertical chain with double gripper including tool loading setup aid
Total installed rated power: 10. 0 kw
Installed net power: 7. 3 kw
Control voltage: 24 v dc

Extra Information

Media Chip conveyor: Scraper belt chip conveyor Flushing gun for chip flushing Coolant/air blast switching: External via M function Active cooling unit for control cabinet Operating voltage and frequency: 3 x 380 V - 50/60 Hz Supply line protection: 2 standard steps above the rated current Permissible rated voltage fluctuations: +/- 10% at idle and full load Max. permissible ambient temperature: +35°C Max. installation altitude: 1000 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
