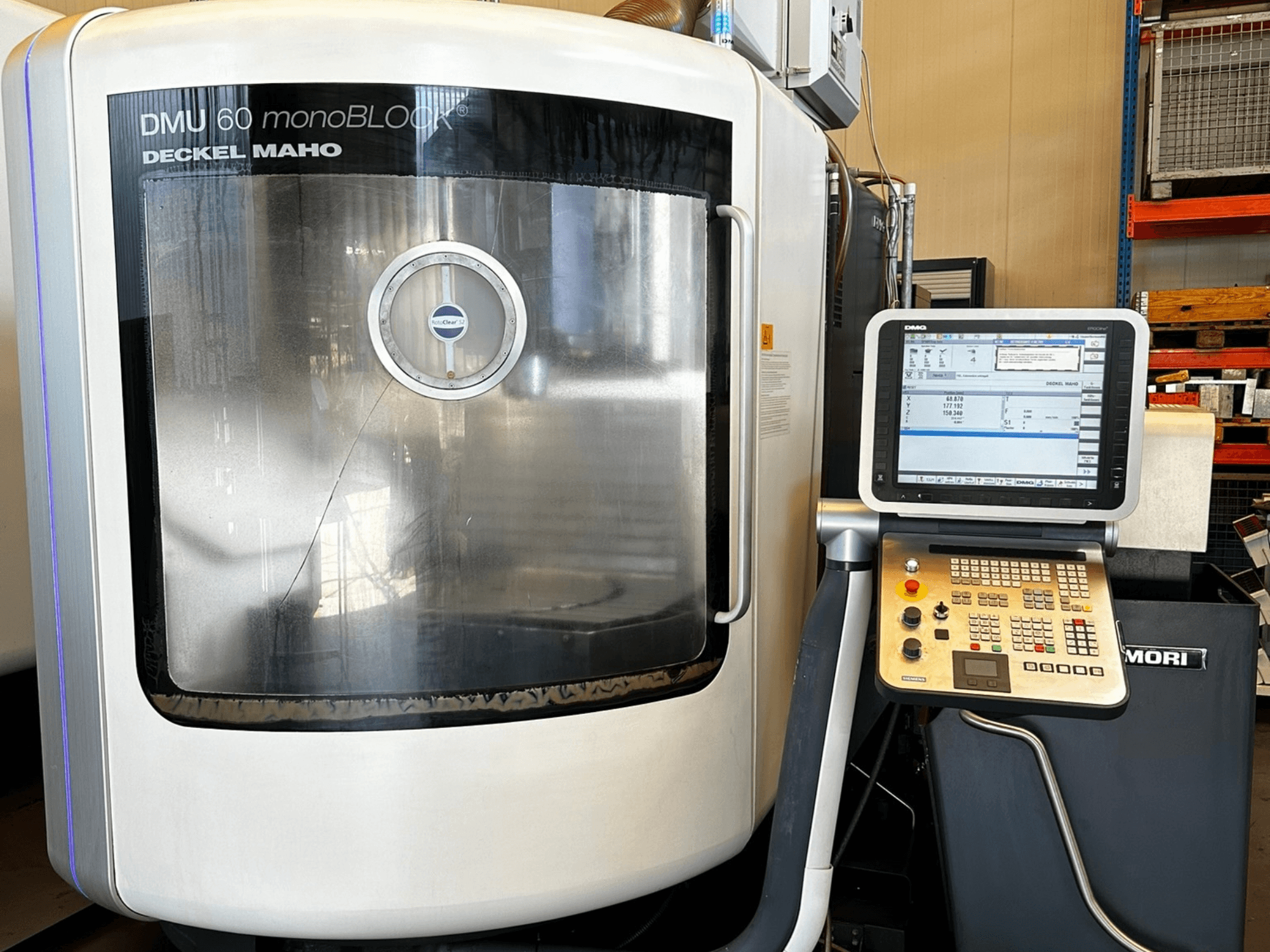

This 5-axis DMG MORI DMU 60 monoBLOCK was manufactured in 2010. It features a working area of 730 mm x 560 mm x 560 mm and a rigid table size of 1,000 mm x 600 mm. The machine is equipped with a motor spindle capable of 18,000 rpm and includes a controlled NC swivelling milling head. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 60 monoBLOCK vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2010
- MODEL: DMU 60 monoBLOCK
- production hours: 8510
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI DMU 60 monoBLOCK
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D solutionline
Movement
- Number of Axes: 5
- X-axis Travel: 730 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 18000 RPM
- Taper Size: SK 40
Additional Information
Tool clamping: Manual
Swivelling milling head: Controlled NC B-axis with hydraulic clamping
Spindle offset: 100 mm
Swivelling range: -120° / +30° (X-axis travel reduced by 100 mm)
Tool changer: Pick-up system, 24 magazine positions
Table: Rigid, 1,000 mm x 600 mm
Control: Siemens 840D solutionline
3D path control
3D machining, 3D tool correction
TRANSMIT lateral surface transformation (milling of cylindrical paths - TRACYL)
CompCad compressor function for high-speed machining
Operating mode 4 (manual intervention with doors open)
Probing and calibration:
3D measuring probe
3D quickSET toolkit for checking/correcting 5-axis kinematic accuracy
Running time: 30,106 hours (spindle: 8,510 hours)
Note: Soft key buttons on the screen sometimes fail; operation may require the machine’s mouse pad or an external keyboard.
Additional equipment
Chip conveyor
Optional: 125 SK40 tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
