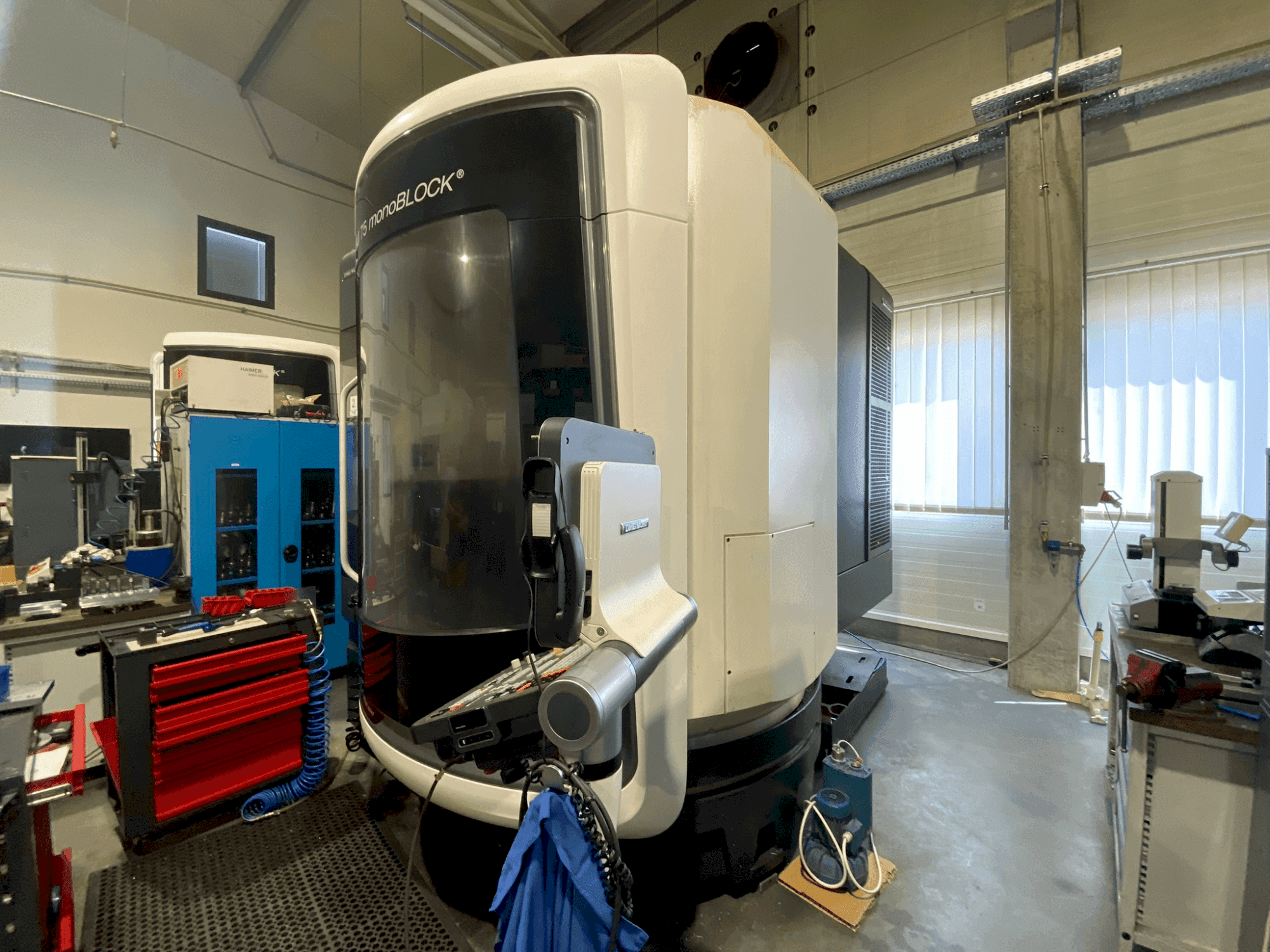

Front view of DMG MORI DMU 75 MonoBlock machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMU 75 MonoBlock

Photo Gallery

DMG MORI - DMU 75 MonoBlockHU-MIL-DMG-2019-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 75 MonoBlock | For Sale

Show in original language

This DMG MORI DMU 75 MonoBlock was manufactured in 2019. A vertical machining center featuring a Heidenhain control and a spindle speed of 20,000 rpm. It offers X-axis travel of 750 mm, Y-axis of 650 mm, and Z-axis of 560 mm. A great opportunity to buy this DMG MORI DMU 75 MonoBlock vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: DMG MORI
year: 2019
MODEL: DMU 75 MonoBlock
production hours: 5714
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 75 MonoBlock

General Data

Machine weight: 12300 kg

Control Unit

Model: TNC 640 3D
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 35 kW
Tool taper: SK 40 (DIN 69871)
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 560 mm

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Precision and reliability with heidenhain control.
Temperature compensation with 4 built-in sensors
Direct measurement on x, y, z axes
Max feed rate (x, y, z): 40,000 mm/min
Rapid traverse rate (x, y, z): 40 m/min
High spindle speed of 20,000 rpm
High spindle power and torque
Advanced control system with 3d capabilities

Technical Machine Benefits

High spindle speed, 5-axis capability.
Spindle motor power: 35 kw (40% duty cycle), 25 kw (100% duty cycle)
Cooling pressure: 40 bar / tool capacity: 60 tools (sk 40) / tool change system: dual-arm tool changer
Max tool weight: 8 kg / max tool length: 315 mm
Rotary table (a & c axes):table diameter: 650 mm
Maximum load: 600 kg
A-axis tilt range: +120° to -120°
C-axis rotation range: 360°

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
