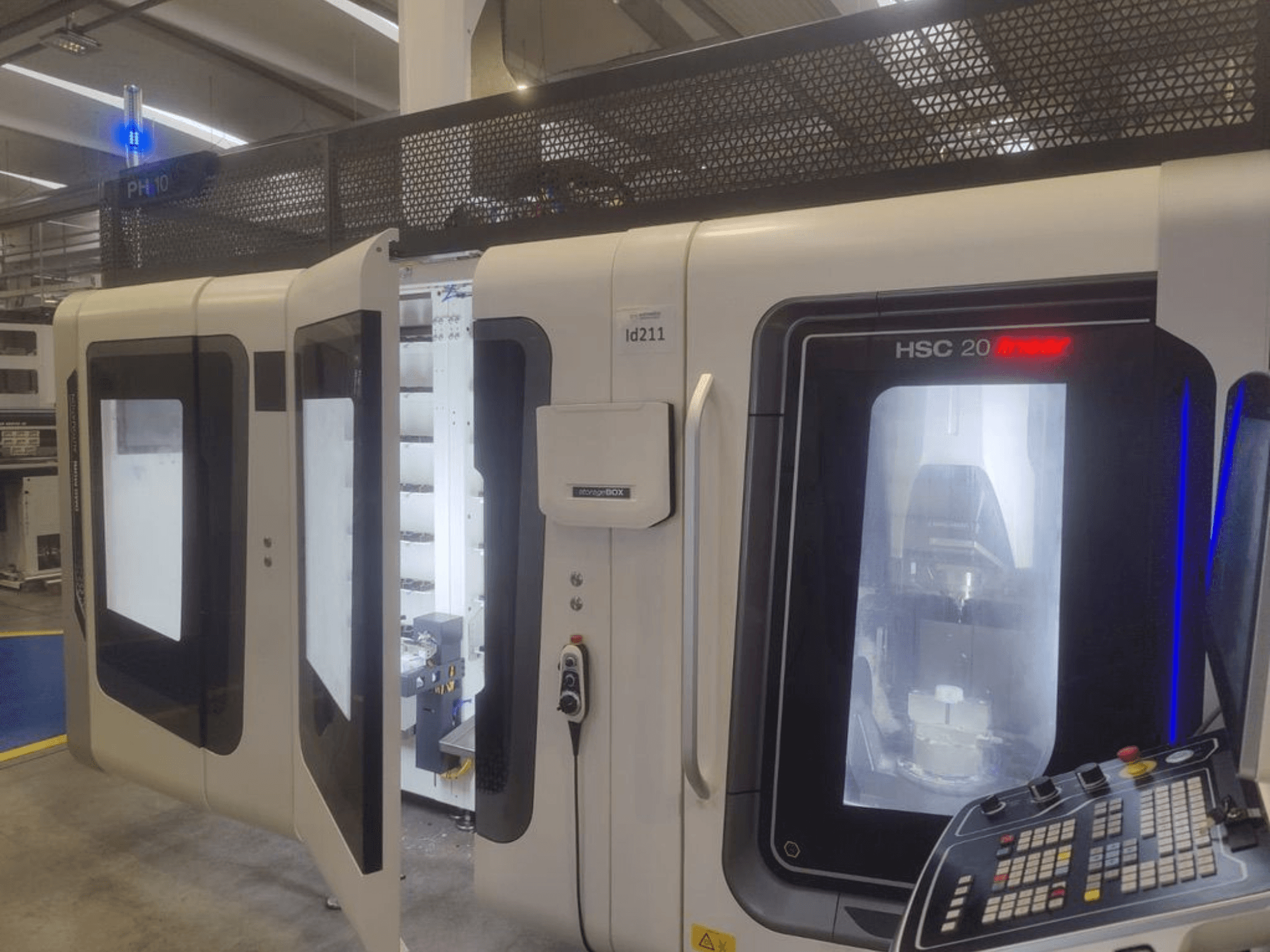

This 5-axis DMG MORI HSC 20 was manufactured in 2019. It features a maximum spindle speed of 42,000 rpm and a clamping surface of 450 × 400 mm. The integrated tilting rotary table allows for a tilt range of -15° to +130°, enhancing its versatility. If you are looking to get high-quality machining capabilities, consider the DMG MORI HSC 20 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: HSC 20
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - DMG MORI HSC 20
Dimensions
- Table Load: 100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 200 mm
- Y-axis Travel: 220 mm
- Z-axis Travel: 280 mm
Technical Specification
- Spindle Speed: 42000 RPM
Additional Information
Fixed table with T-slots
Clamping surface: 450 × 400 mm
Spindle interface: HSK-E32
Spindle torque: 6 Nm (S1 100%), 7.5 Nm (S6 40%)
Automatic tool changer, pickup system
Tool magazine capacity: 24 tools (HSK-32) or 22 tools (HSK-40)
Air blow through spindle axis
Ethernet interface ready
CELOS control system with Siemens 840D sl Operate
21.5” ERGOline touchscreen control panel
CAD/CAM connectivity
Compatible with PPS/ERP systems
5-axis precision package
Integrated tilting rotary table
A-axis tilt range: -15° to +130°
C-axis rotary table diameter: Ø250 mm
C-axis integrated torque motor
Maximum rotary speed: 50 rpm
4-color machine status signal lamp
Remote diagnostic capability (DMG MORI NETSERVICE)
IoT connectivity (DMG MORI IoTconnector)
Remote service monitoring (Service Agent)
Machine installation and commissioning included
3D STEP model for CAD integration
Permanent lubricated spindle
Additional equipment
Automatic pallet/part handling automation PH10
Linear magazine automation system
Pallet capacity: up to 132 positions (ITS 50) or 66 positions (ITS 115)
Maximum workpiece height (automation): 260 mm
Machine transport lifting device
Machine packaged for truck transport
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
