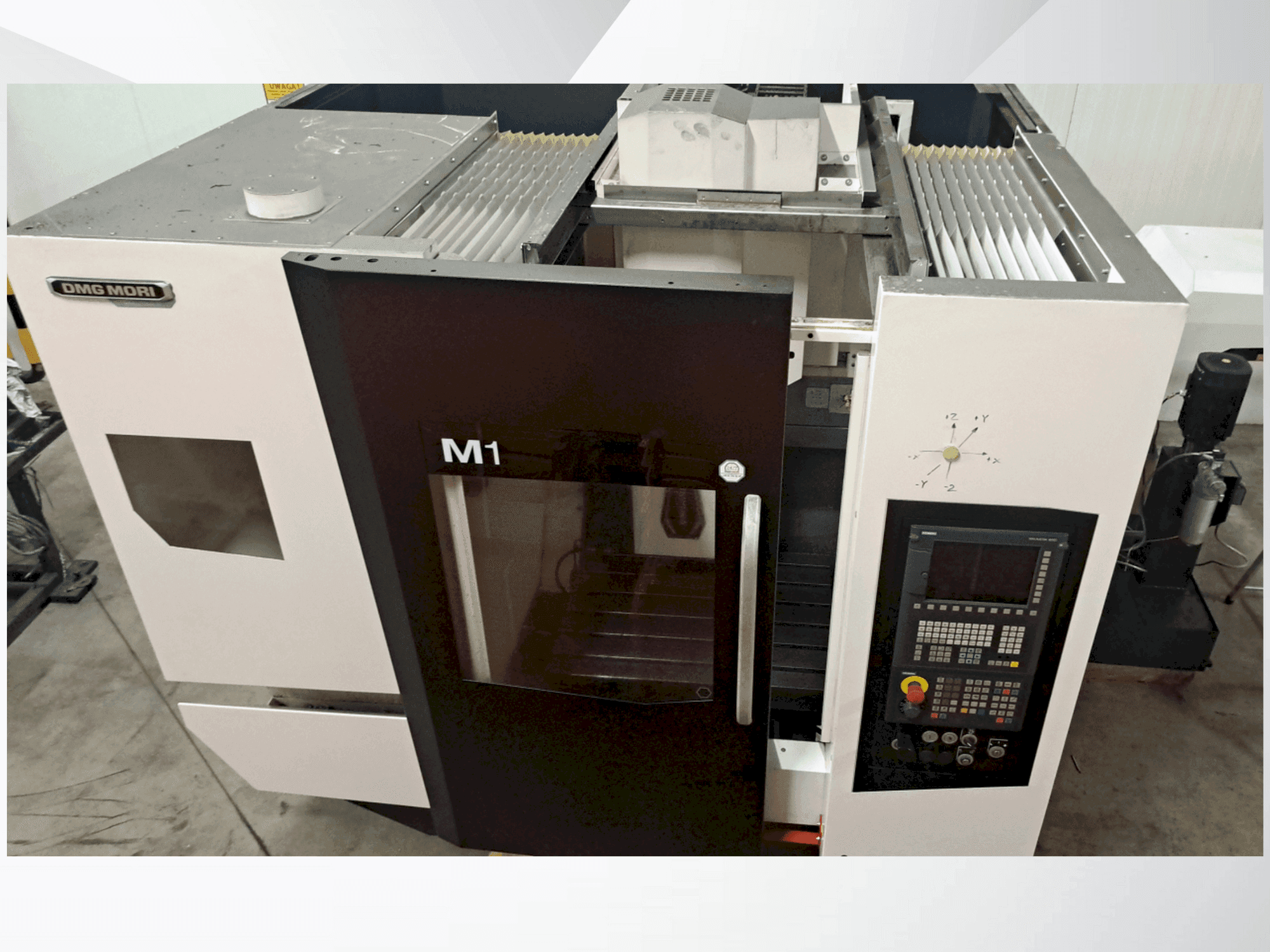

DMG MORI - M1 PROPL-MIL-DMG-2022-00001

Additional Equipment

• - Job Shop package including: ShopMill / Real-time simulation / 3D simulation / Measurement cycles / Residual material removal cycles / Measurement System (Probing): Renishaw PP40 wireless workpiece probe TS27R tool measurement probe / Coolant & Chip Management: Scraper-type chip conveyor / Coolant tank capacity: 200 L (left side) / Coolant pump: 20 bar internal through-spindle coolant / Manual wash-down gun for work area / Automatic flushing of work area via M-code function / Machine enclosure roof / LED work area lighting (24V, 33W) / Prepared for oil mist extraction system (Ø150 mm outlet) / Centralized lubrication system with automatic dosing for linear guides and ball screws

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Table size: 850 × 650 mm / clamping surface: 6 t-slots / max. Table load: 600 kg / distance from spindle nose to table: 105 – 615 mm
  • - Type: 24-position automatic tool changer with double gripper / tool holder standard: sk40 / max. Tool diameter: 80 mm (130 mm if adjacent slots are empty) / max. Tool length: 300 mm (from spindle nose) / max. Tool weight: 8 kg / max. Magazine load: 110 kg / tool change time: 2. 4 s (for tools < 80 mm) / chip-to-chip time: 8. 5 s
  • - Spindle taper: sk40 din69871 / spindle speed range: 20 – 12000 rpm / spindle power: 13 kw (40% dc) / 9 kw (100% dc) / spindle torque: 83 nm (40% dc) / 57 nm (100% dc)
  • - Axes: 3 / axis travel (x / y / z): 550 / 550 / 510 mm / drive type: ball screw drives with ac servomotors / cutting feedrate (x/y/z): up to 24 m/min / rapid traverse (x/y/z): 24 m/min
  • - Electrical requirements: voltage: 3 × 400 v / power consumption: 20 kva
  • - Dimensions of machine (lxwxh): 3065 × 2665 × 2840 mm / required floor space: 4300 × 5500 mm / weight (kg): approx. 5600 kg / the machine is in fully functional condition, tested and confirmed by a service report, including accuracy measurements. Complete documentation is available. / currently disconnected from power.

Payment Terms

• Payment in advance

• Asset Financing
