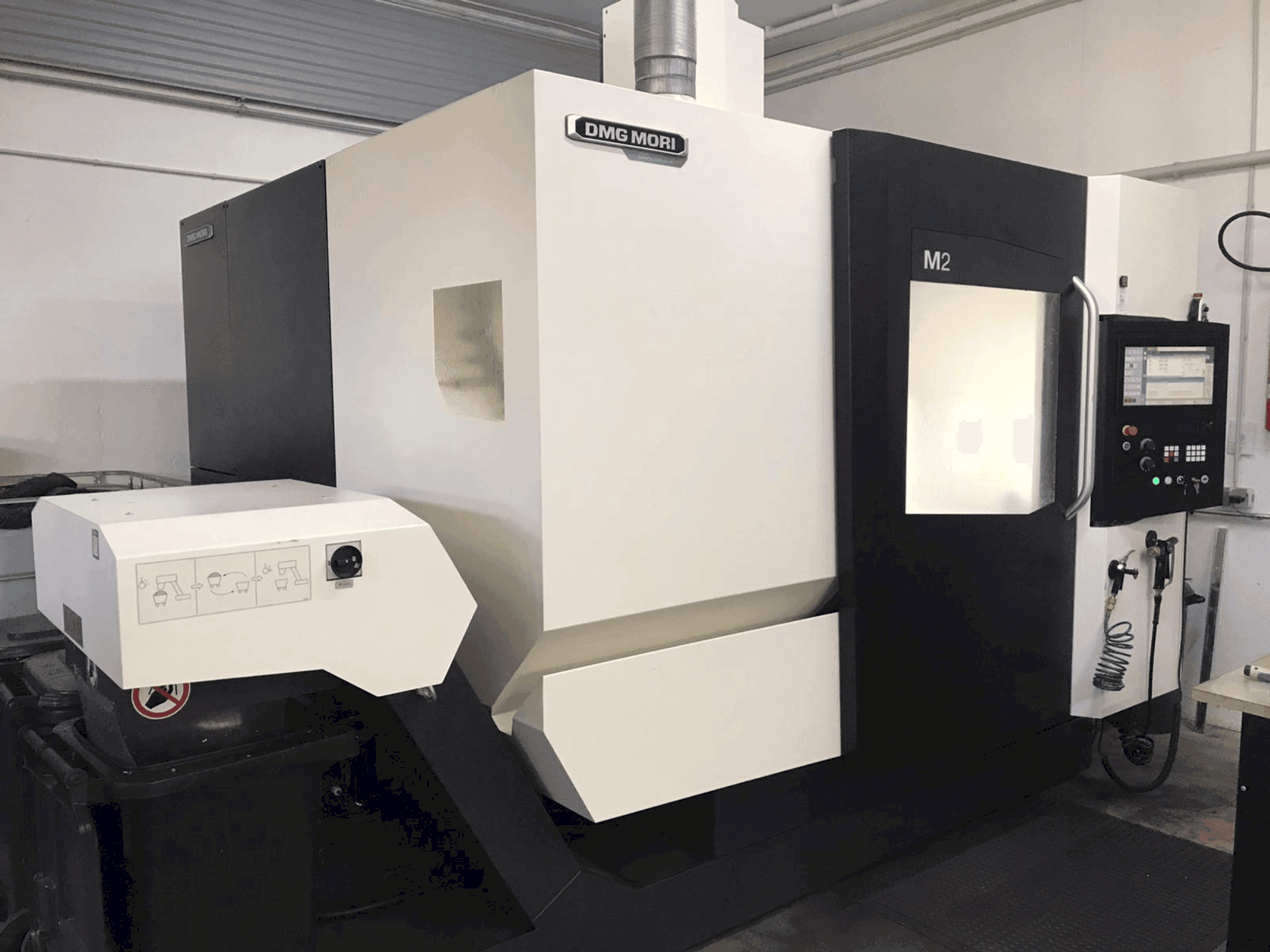

This 4-axis DMG MORI M2 vertical machining center was manufactured in 2023. It features a spindle speed range of 20 to 12,000 rpm, a tool magazine for 24 tools, and a chip conveyor. The machine offers a travel path of X/Y/Z - 1100/550/510 mm and a table size of 1400 x 600 mm. If you are looking to get high-quality milling capabilities, consider the DMG MORI M2 machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2023
- MODEL: M2
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI M2
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik one
Dimensions
- Machine Depth: 3605 mm
- Machine Height: 2855 mm
- Machine Weight: 6950 kg
- Table Load: 1700 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1100 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Chip Conveyor in Scraper Belt Design
- Coolant Spray Gun
- Internal Coolant Supply 20 Bar
- Bed Flushing via M-function
Machine Benefits
Technical Machine Benefits
- Software option: dxf import
- Dmg mori iot connector and net service
- Siemens sinumerik job shop package
- Drive type: inline spindle
- Spindle torque: 83 nm (40% dc) / 57 nm (100% dc)
- Table clamping area: 1400 x 600 mm
- Tool magazine: 24 tools with double gripper
- Tool clamping according to din 69872
- Renishaw touch probe kit
- Tool change time: average chip-to-chip time 2. 4 s
Extra Information
Machine History Manual chuck (three-jaw) diameter 160 mm for NC Rotary Table Manual tailstock for NC rotary table (stroke: 40 mm) Mechanical preparation for oil mist separator (diameter: 150 mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
