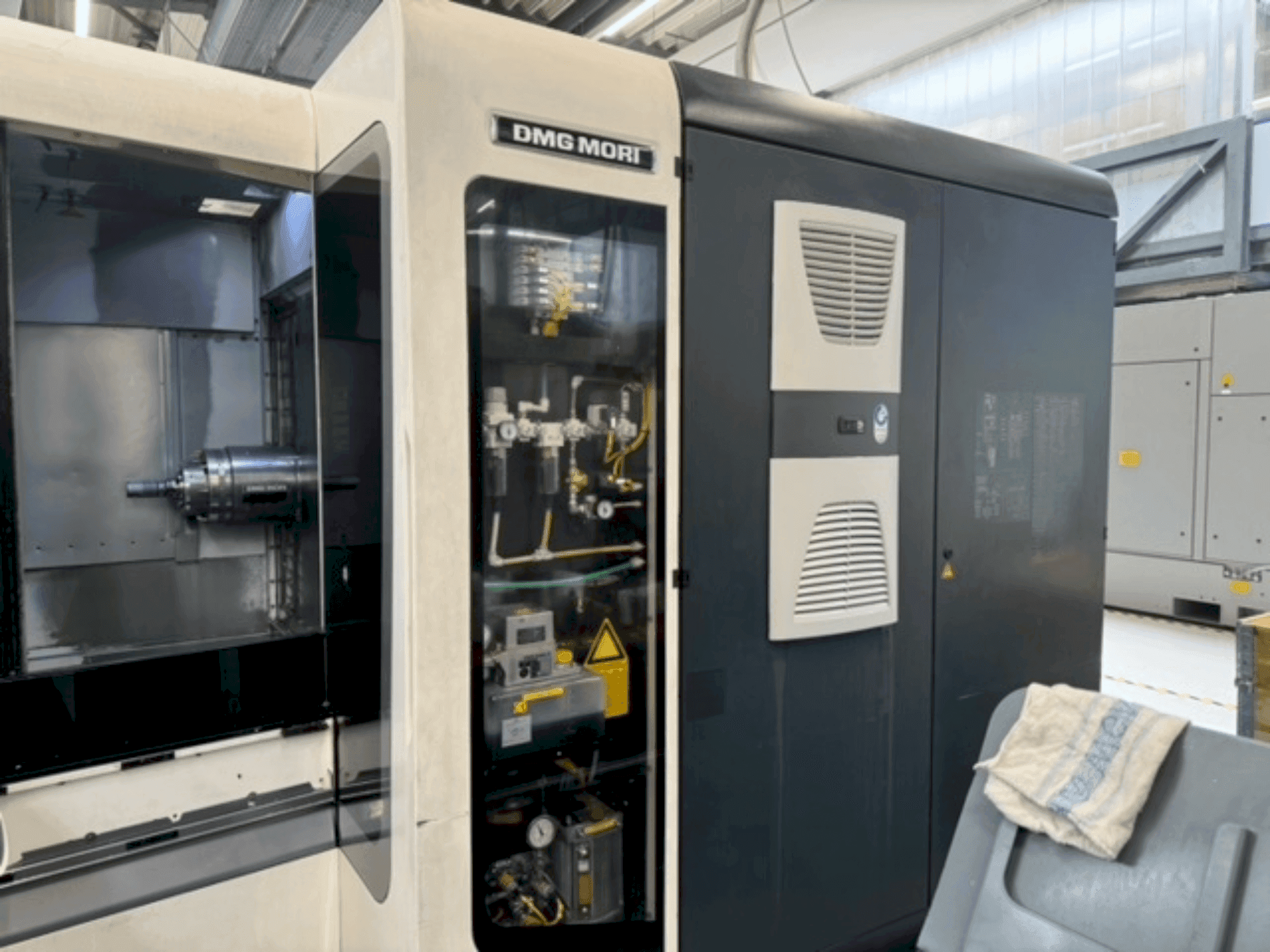

Front view of DMG MORI NHX 4000  machine

DMG MORI - NHX 4000DE-MIL-DMG-2017-00004

170,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis DMG MORI NHX 4000 was manufactured in 2017. A robust horizontal machining center, it features a travel range of 560x560x660 mm and a clamping surface of 400x400 mm. Equipped with a high-speed drive spindle at 15,000 min-1 and a 40-tool magazine, it ensures efficient operations. The machine includes a CELOS® control system with Siemens 840D sl Operate, enhancing usability with a multi-touch screen. For more information about this horizontal machining center, please reach out to us.

Overview

  • brand: DMG MORI
  • year: 2017
  • MODEL: NHX 4000
  • application type: Milling
  • Location: Austria
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - DMG MORI NHX 4000

Control Unit

  • Model: 840D sl Operate with CELOS®
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 20000 min-1 1/MIN
  • Spindle motor power: 21 / 16 kW (40 / 100 ED)
  • Tool taper: BT40

Movement

  • X-AXIS Movement: 560 MM
  • Y-AXIS Movement: 560 MM
  • Z-AXIS Movement: 660 MM

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Two pallets with threaded holes
    • - Automatic turning APC with 2 stations
    • - Direct distance measuring system
    • - Rotating viewing window in the work area door
    • - Coolant rinsing gun
    • - I/F for oil mist separator
    • - Knoll KF110/700 compact filter system
    • - Spindle sensor measuring system with optical signal transmission / Cooling unit for spindle
    • - Tool breakage control system in the tool magazine
    • - Signal light (red, yellow, green, blue)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Technical machine benefits: apps for machine operation and data management, nc table with direct drive motor technology, random system tool slot assignment
        • - Clamping surface: 400x400 mm
        • - Indexing table angle 1º
        • - Tool holder: hsk-a63
        • - Torque: 130 nm / 86 nm (40 / 100 % duty cycle)
        • - Max. Tool diameter: 70 mm (neighboring tools), 170 mm (occupied neighboring places)
        • - Max. Tool length: 450 mm / max. Tool weight: 12 kg / metric setting

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
