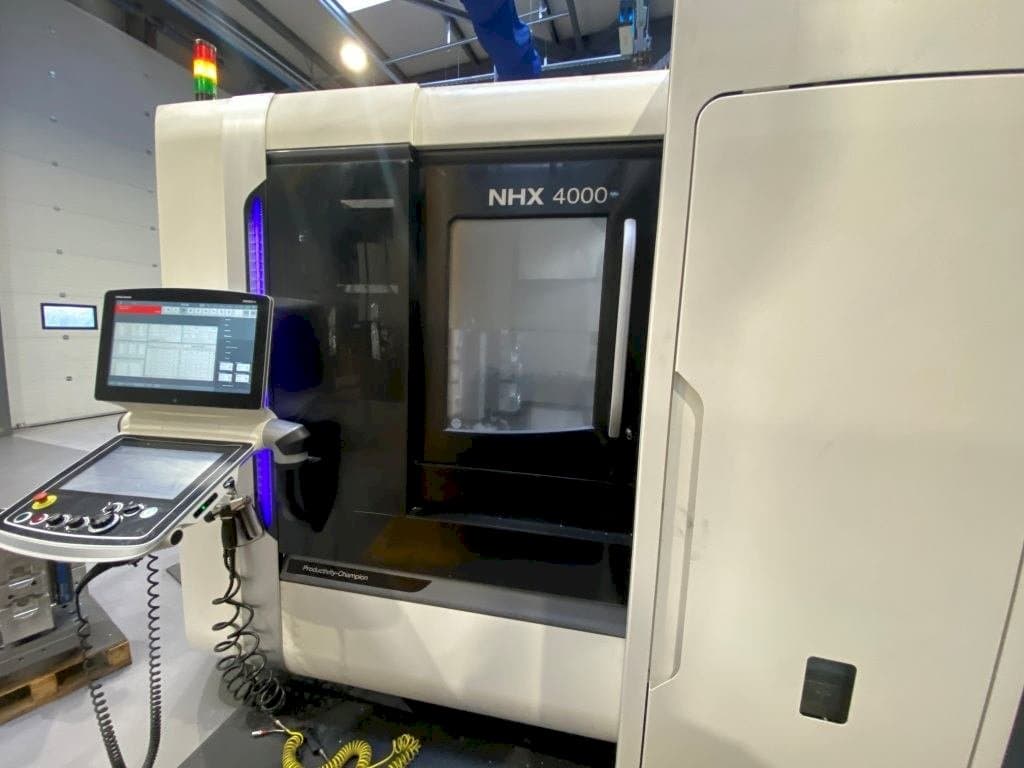

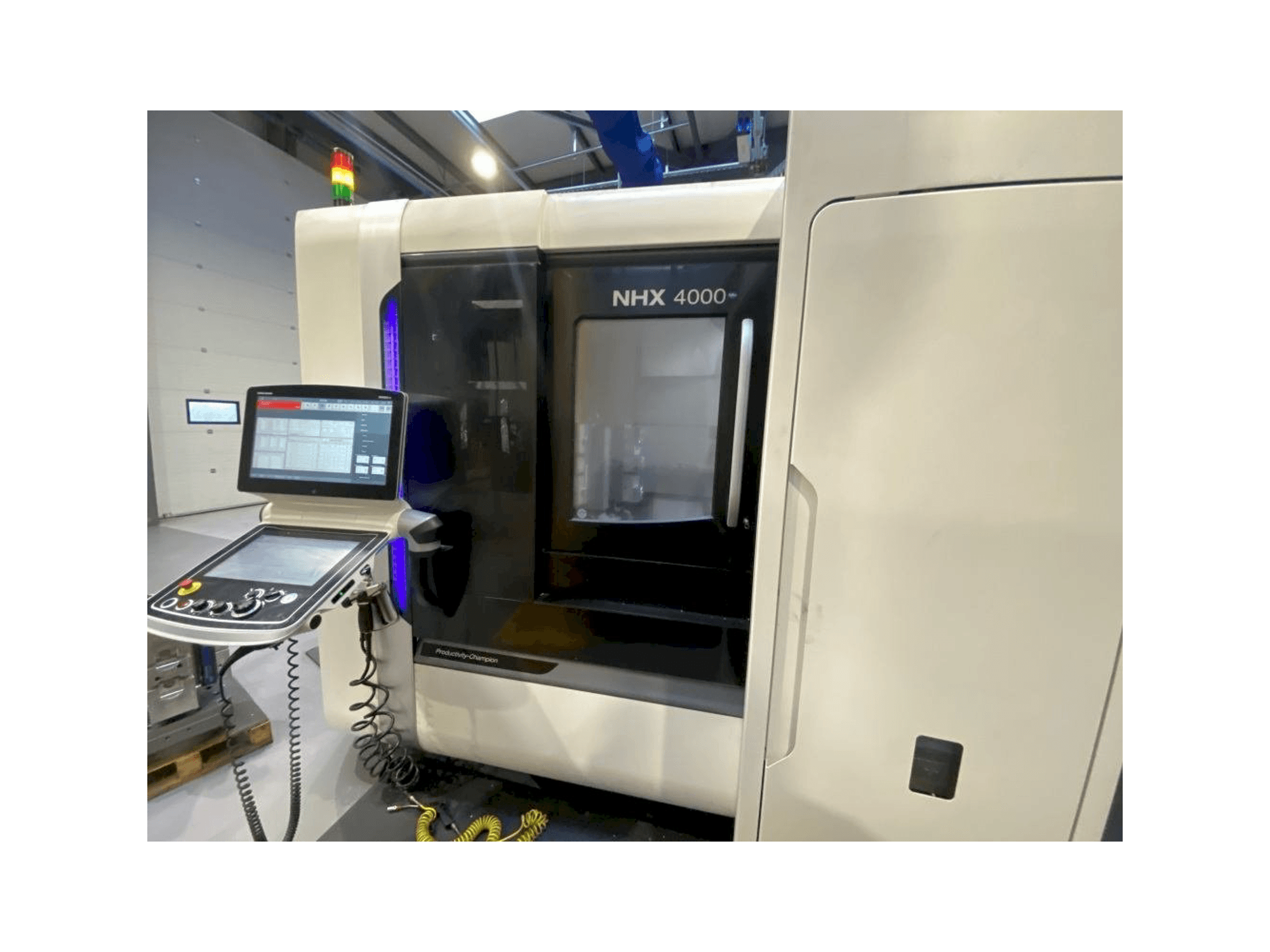

DMG MORI NHX 4000 Horizontal machining center

Show in original language

This DMG MORI NHX 4000 Horizontal machining center was built in Japan in 2017. It has 14339 production hours. It is operated through a control unit of the same brand. This machine works with a spindle speed up to 15000 rpm. Includes 4 pallets, a filtermist extraction unit and tool holders. It has been working for medical device industry. Machine in excellent condition.

Overview

brand: DMG MORI
year: 2017
MODEL: NHX 4000
production hours: 14339
application type: Milling
Location: Ireland
machine type: Machining centers (horizontal)
availability: Sold
GINDUMAC ID: IE-MIL-DMG-2017-00001

Technical Information

General Data

Measurements width: 4181 mm
Measurements depth: 2680 mm
Measurements height: 2540 mm
Machine weight: 7850 KG

Control Unit

CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 660 mm
B-AXIS Movement: 360º in 0.001º Increments MM

Workpiece

Workpiece drm: 630 mm
Workpiece x: 400 mm
Workpiece y: 400 mm
Workpiece z: 900 mm
Workpiece weight: 400 KG

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 60
Max weight: 12 KG
Max tool diameter: 170 mm
Max tool length: 450 mm
Type of tool holder: BT 40

Media

Main electronic connection: 200V / 50Hz
Power consumption: 37.3 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 4 pallets
- Filtermist Extraction Unit
- Tool Holders
- 46 kVA Transformer
- Hydrajet 80 Bar High Pressure Coolant Unit
- Resy Coolant Filtration Unit
- MPG

Additional Information

Machine history

Material type: Steel
End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - 80 bar high pressure coolant
- - Through spindle coolant
- - High power machine
Qualitative Machine Benefits:
- - Machine manual
- - Machine in excellent condtion

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
