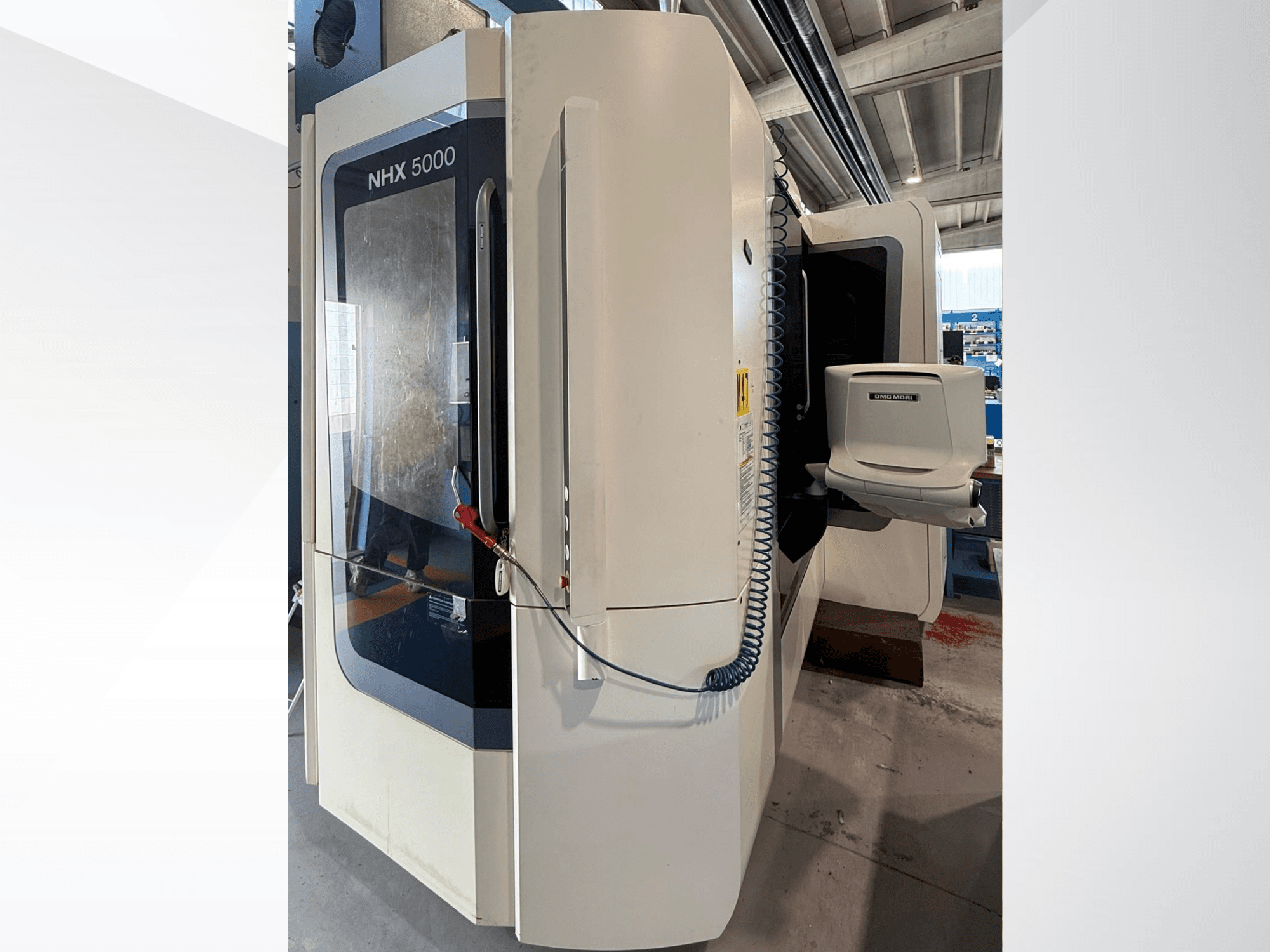

This 3-axis DMG MORI NHX 5000 was manufactured in 2016. It features an X-axis travel of 630 mm, Y-axis travel of 600 mm, and Z-axis travel of 670 mm. The machine includes a 2-position pallet changer and a continuous rotary table for enhanced milling capabilities. If you are looking to get high-quality milling capabilities, consider the DMG MORI NHX 5000 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2016
- MODEL: NHX 5000
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - DMG MORI NHX 5000
Movement
- Number of Axes: 3
- X-axis Travel: 630 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 670 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 22 kW
- Spindle Speed: 15000 RPM
- Taper Size: ISO 40
- Tool Stations: 120
Additional Information
CNC control: MSX-501
Pallet changer: Yes, 2-position
Rotary table: Continuous (4th axis)
Table size: 500 × 500 mm
Tool magazine capacity: 120 tools (note: spec table mentioned 60; description states 120)
Notes: Ready for immediate delivery; can be inspected under power; excellent overall condition
Additional equipment
50 bar high-pressure coolant system
Smoke extractor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
