- DN SOLUTIONS LYNX 2100 LSYB Lathe

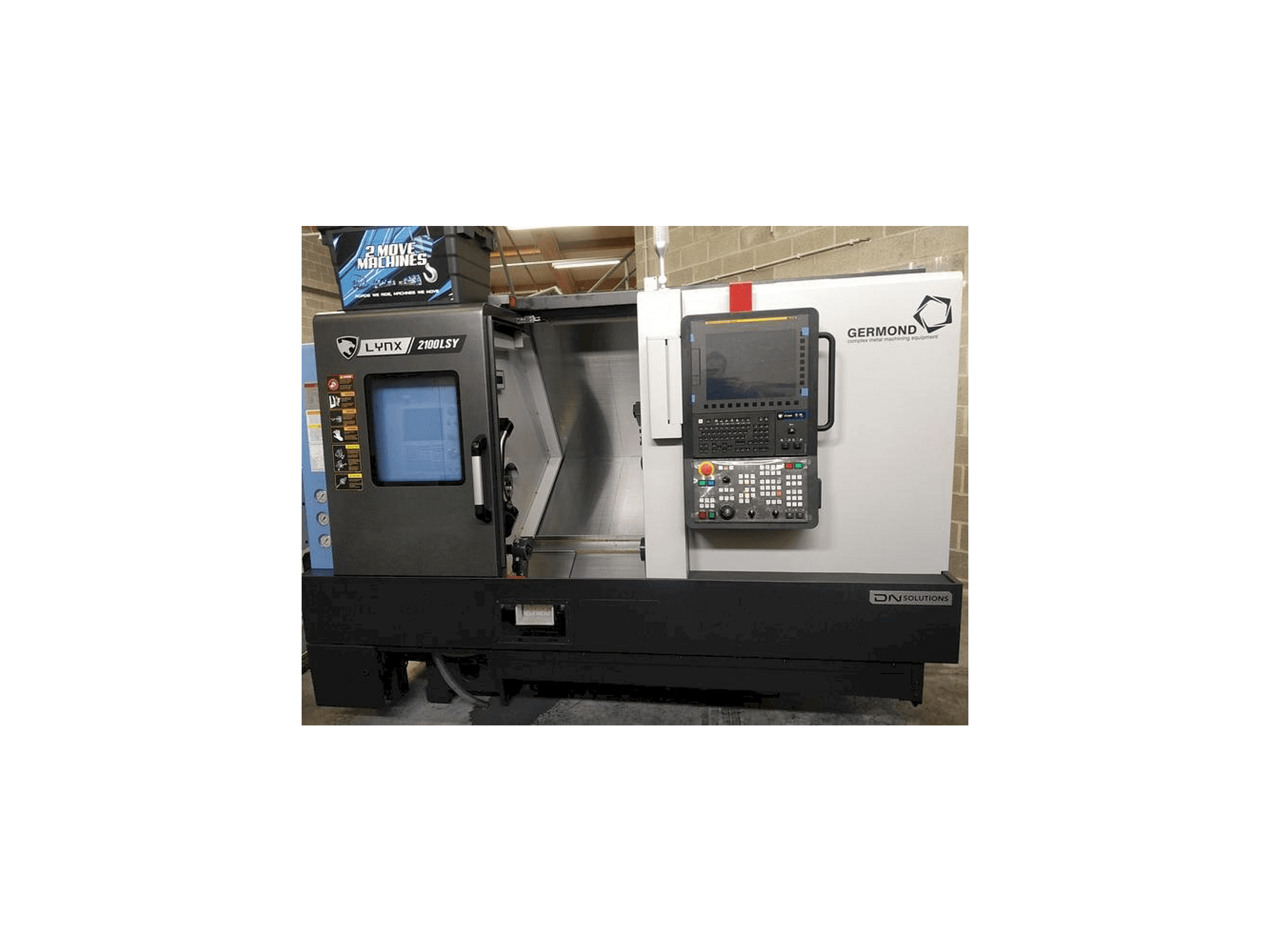

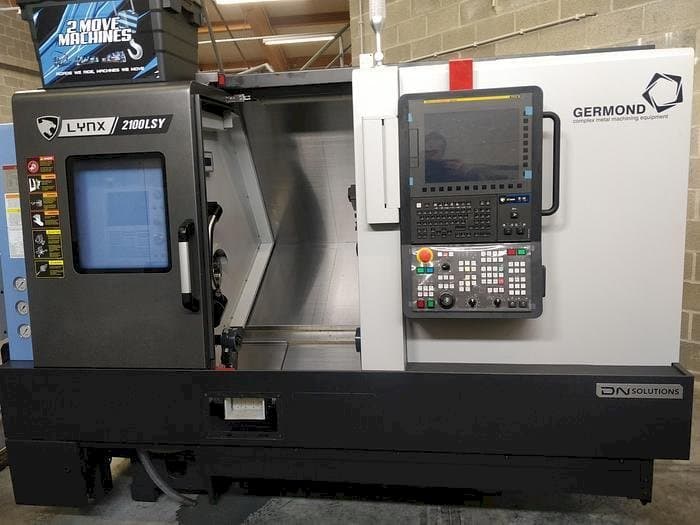

This DN SOLUTIONS LYNX 2100 LSYB Lathe was built in the year 2022 in Korea. It is equipped with a Fanuc iSeries control unit. The machine has a main spindle speed of 4500 rpm and a sub-spindle speed of 6000 rpm.
Overview
- brand: DN SOLUTIONS
- year: 2022
- MODEL: LYNX 2100 LSYB
- application type: Turning
- Location: Belgium
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DN SOLUTIONS LYNX 2100 LSYB
General Data
- Measurements width: 1701 mm
- Measurements depth: 2870 mm
- Measurements height: 1930 mm
- Machine weight: 4200 kg
Control Unit
- Model: iSeries
- Brand: FANUC
Main drive
- Spindle speed range: 4500 1/MIN
- Spindle motor power: 15 kw
- Spindle bore: 76 mm
Movement
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Rapid traverse: 394 ipm
- Z-AXIS Rapid traverse: 36 m/min
Tools
- Number of stations: 12
- Type of tool holder: BMT-45
Additional Information
- Technical Machine Benefits:
- - Spindle torque: 169 nm
- - Spin axis contour torque 169nm
- - Sub spindle: 6000 rpm, 5. 5 kw power
- - Guideway type: linear
- - Swing over bed: 600 mm
- - Bar capacity: 67 mm
- - Max turn diameter: 300 mm
- - Max turn length: 510 mm
- - Main spindle max chuck: 254 mm
- - Main spindle std chuck: 203. 2 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
