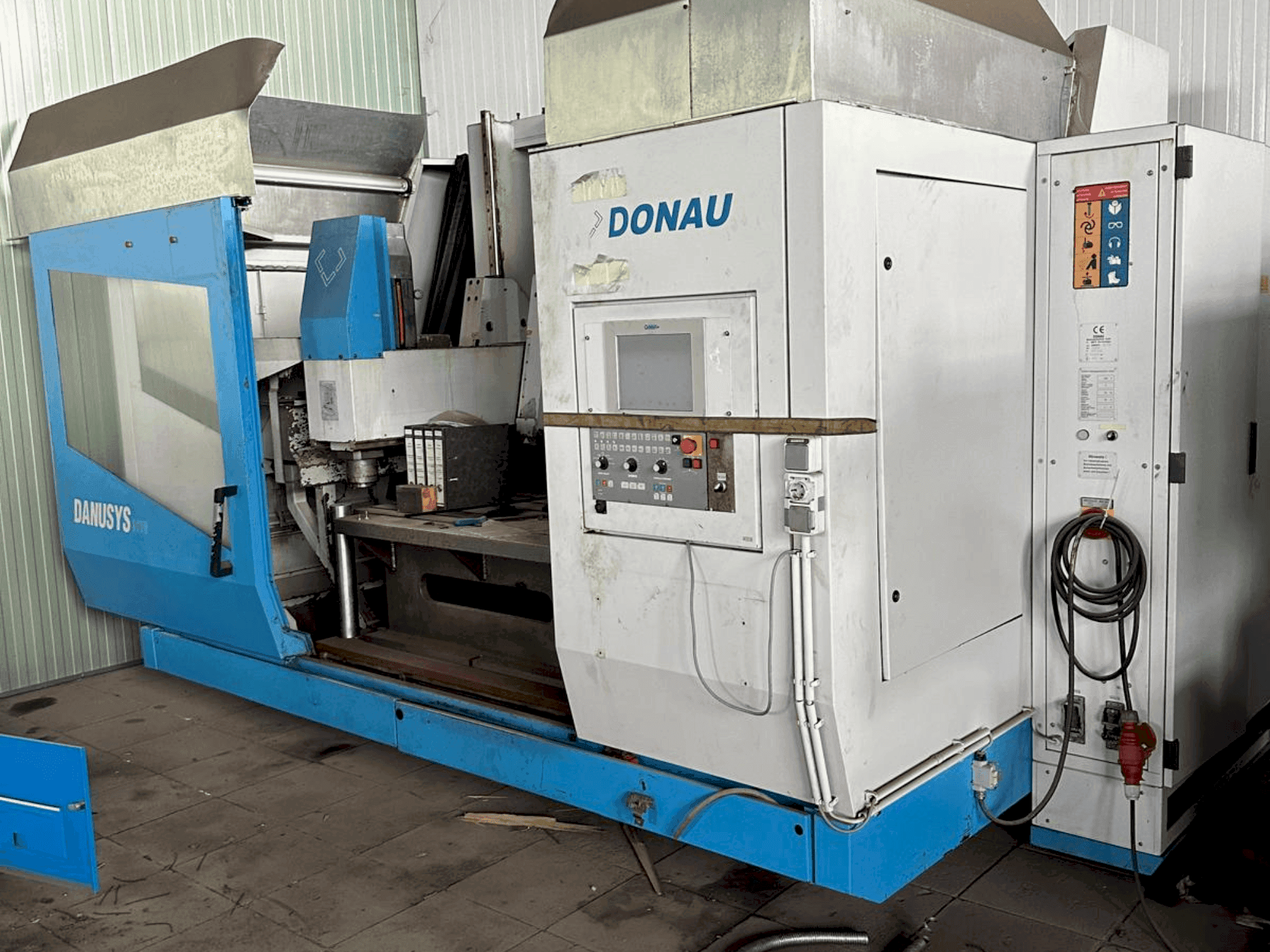

Front view of DONAU DANUSYS 1510 machine
Front view of DONAU DANUSYS 1510 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DONAU - DANUSYS 1510DE-MIL-DON-1999-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DONAU DANUSYS 1510 vertical machining centre was manufactured in 1999. It features a robust 11 kW power requirement, a spindle speed of 4200 RPM, and a tool magazine with an 8-tool capacity. The machine includes a coolant system and a chip conveyor, enhancing its operational efficiency. Ideal for handling large workpieces with its 1500 x 1000 mm table size. A great opportunity to buy this DONAU DANUSYS 1510 vertical machining centre. Contact us for more information.

Overview

  • brand: DONAU
  • year: 1999
  • MODEL: DANUSYS 1510
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - DONAU DANUSYS 1510

General Data

  • Measurements width: 2200 mm
  • Measurements depth: 3900 mm
  • Measurements height: 3270 mm
  • Machine weight: 6000 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 4200 rpm 1/MIN
  • Tool taper: SK
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1500 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 1000 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 700 mm
  • Z-AXIS Rapid traverse: 20 m/min

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Coolant system
    • - Electronic handwheel
    • - Documentation available

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Power requirement: 11 kw
        • - Table size: 1500 x 1000 mm
        • - Distance from base plate to spindle nose: 670 - 1320 mm
        • - Distance from worktable to spindle nose: 180 - 830 mm
        • - Bore capacity: 40 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
