DOOSAN - DNM 4500CZ-MIL-DOO-2020-00003

Name: DOOSAN DNM 4500
Brand: DOOSAN
SKU: CZ-MIL-DOO-2020-00003
Price: 53000 EUR
Availability: InStock

53,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN DNM 4500 For Sale | gindumac.com

Show in original language

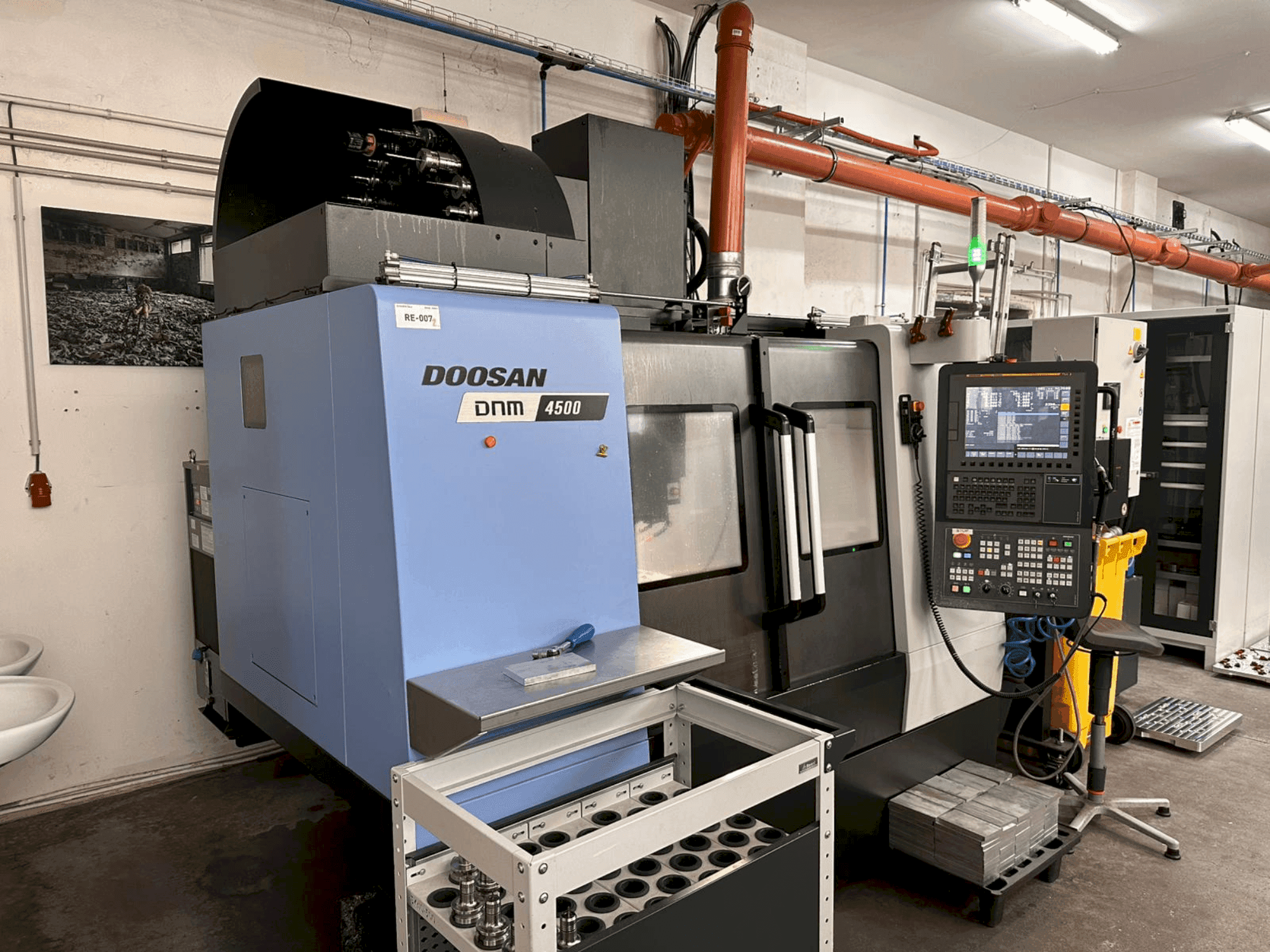

This 3-axis DOOSAN DNM 4500 was manufactured in 2020. It features a robust 5000 kg weight, dimensions of 2158x2615x2985 mm, and a table size of 1000x450 mm supporting up to 600 kg. Equipped with a Fanuc i series Plus control, 30 tool positions, and a spindle speed of 8000 rpm. Ideal for precise and efficient machining. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2020
MODEL: DNM 4500
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN DNM 4500

Control Unit

Brand: FANUC
Model: iSeries Plus

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 450 MM
Z-AXIS Movement: 510 MM

Additional Equipment

- Tool positions: 30
- Renishaw tool and workpiece probe /LNS Turbo belt conveyor / Oilskimmer / LNS chiblaster 70bar central cooling/ Automatic door / Blow gun / Rinse gun

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 2158x2615x2985 mm
- - Weight (kg): 5000
- - Distance spindle face – table level: 150-660 mm/ rapid traverse of axes x/ y/ z: 36/36/30 m/min /working feed of axes x/ y/ z (max. ): 15000 mm/min/ diameter of ball screws x/ y/ z: 40/40/40 mm
- - Table dimensions: 1000x450 mm / max. Table load: 600 kg
- - Spindle taper: iso 40 /spindle speed: 8000 rpm /main motor power (continuous / 15 min. ): 11/18. 5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
