➤ Used DOOSAN HM 8000 For Sale | gindumac.com

Show in original language

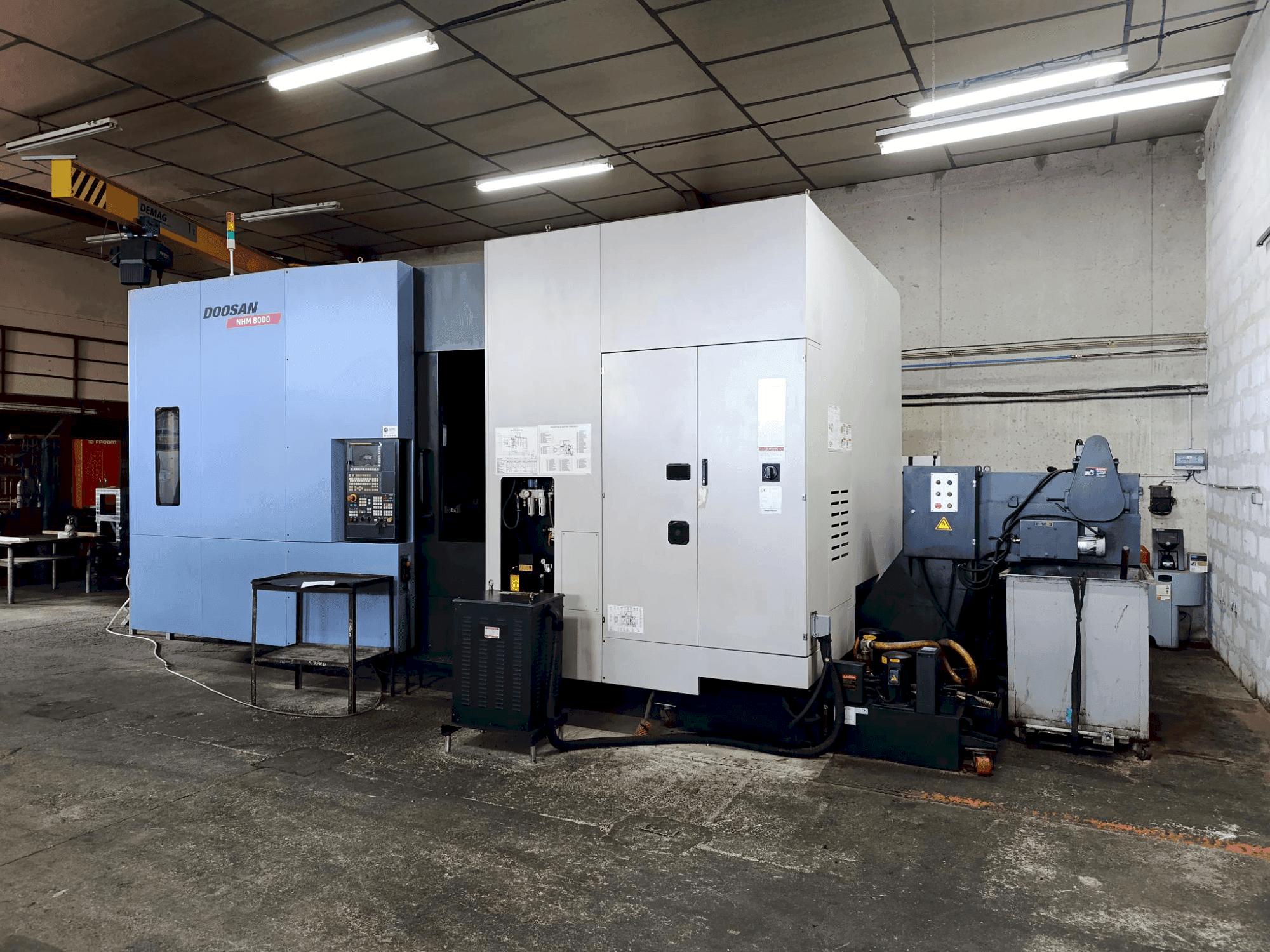

This 4-axis DOOSAN HM 8000 horizontal machining center was manufactured in 2014. Equipped with Fanuc 31i CNC control, it features a maximum workpiece diameter of 1450 mm and weight capacity of 2000 Kg. It includes a high-pressure through-spindle coolant system, chip conveyor, and both workpiece and tool probes. If you are looking to get high-quality milling capabilities consider the DOOSAN HM 8000 machine we have for sale. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2014
MODEL: HM 8000
application type: Milling
Location: France
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HM 8000

General Data

Measurements width: 4325 mm
Measurements depth: 8150 mm
Measurements height: 3760 mm
Machine weight: 26000 kg

Control Unit

Brand: FANUC
Model: 31i CNC

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1400 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 1200 mm

Workpiece

Workpiece drm: 1450 mm
Workpiece weight: 2000 kg

Tools

Max weight: 30 kg
Max tool diameter: 130/320 mm
Max tool length: 630 mm

Media

Chip conveyor: Yes

Additional Equipment

- Belt-type oil skimmer
- Triple light tower
- Shower coolant
- Through-spindle coolant 70 bar – 75 kW with cyclone filtration
- Automatic shutdown
- Tool load monitoring
- Chip conveyor
- Workpiece probe OMP60
- Tool probe TS27R

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Equipped with fanuc 31i cnc control
- - B-axis: indexable by degree
- - Pallet size: 800 x 800 mm
- - Pallet centering device
- - Tool magazine: 60 tools type bt 50
- - Max. Torque: 1732 n·m

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
