Doosan HP5100

Photo Gallery

80,000 €

gindumac price

(Ex works)

Get an official quote

Doosan - HP5100

2008

80,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

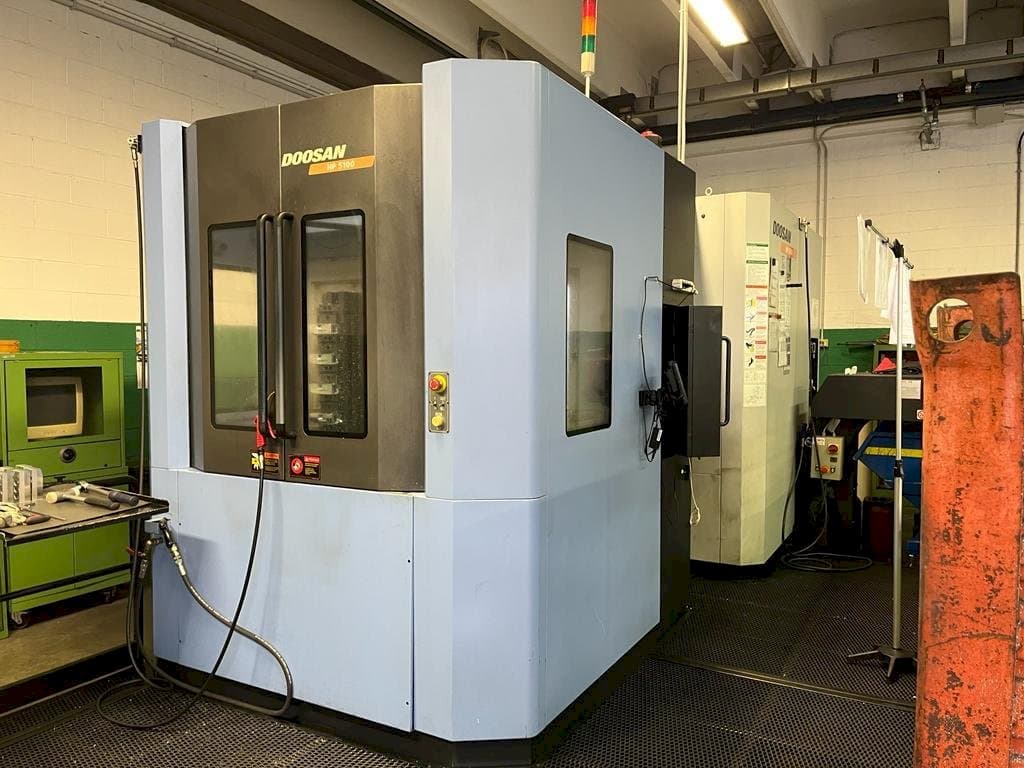

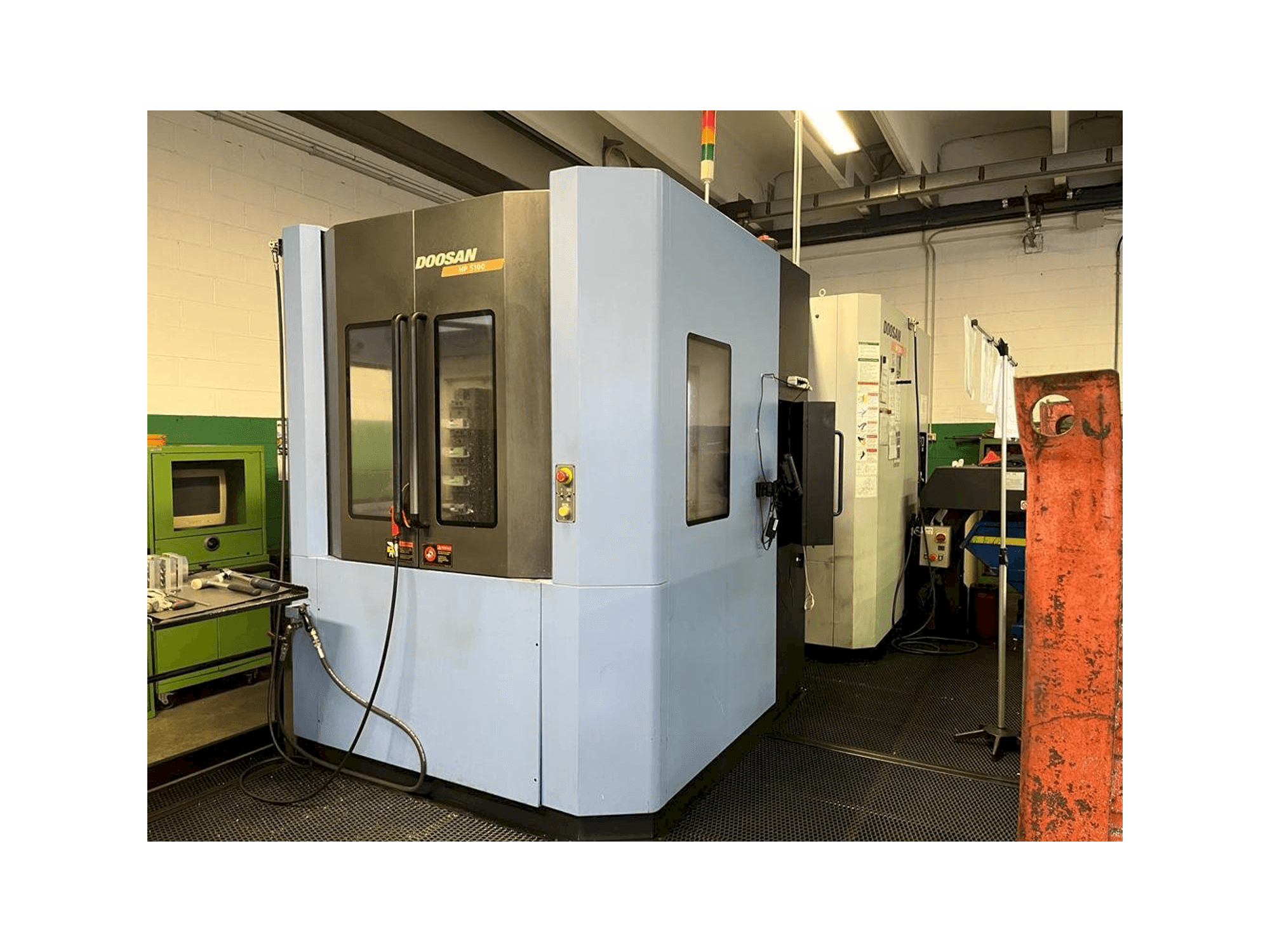

Doosan HP5100 Horizontal Machine Center

Show in original language

This Doosan HP5100 Horizontal Machine Center was built in the year 2008. It is equipped with a FANUC control unit. The machine has a spindle speed of 1 - 30000 rpm.

Overview

brand: Doosan
year: 2008
MODEL: HP5100
application type: Milling
Location: Italy
machine type: Machining centers (horizontal)
availability: Immediately
control unit brand: FANUC
GINDUMAC ID: IT-MIL-DOO-2008-00001

Technical Information

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 1 - 30000 1/MIN

Movement

X-AXIS Movement: 800 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Rapid traverse: 60 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The axis motion system consists of a series of motors, ball screws, linear guides, etc. The axis guides are equipped with roller lm guides for high speed and high productivity
- - L axis: 750 mm
- - Work progress: 1/30000 mm/min
- - Ball screw diameter and pitch: ø40 x p20
- - Positioning precision: ±0. 005 / entire stroke
- - Repeatability: ±0. 002 mm
- - Measuring system: x, y, z axes; incremental encoder - b axis: absolute encoder mm/min
- - Distance spindle nose - pallet center: 150 - 900 mm
- - Distance between spindle axis and pallet surface: 50 - 750 mm
- - X axis: a30/3000i, y axis: a30b/3000i, z axis: a30/3000i, b axis (1st indexing): a12/3000is, b axis (rotation 0. 0019): a12/3000is, x axis: 7 kw, y axis: 7 kw, z axis: 7 kw, b axis (1st indexing): 2. 7 kw, b axis (0. 001° rotation): 2. 7 kw

Extra information

- You can change the engine type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
