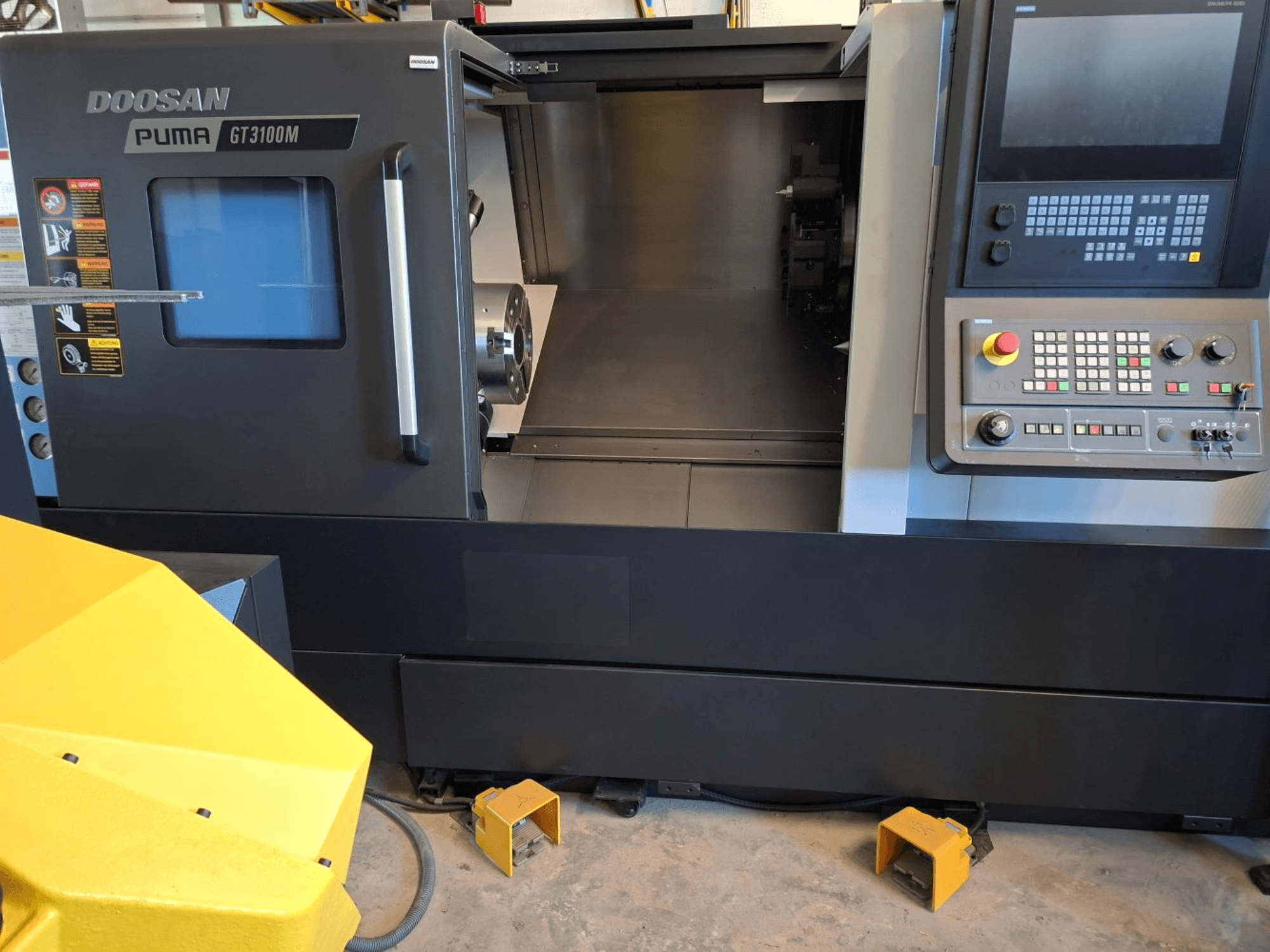

DOOSAN - Puma GT 3100 M DE-TUR-DOO-2022-00003

• Siemens S828D control touchscreen with ShopTurn 15-inch display

• 3-axis CNC horizontal turning machine with driven tools and tailstock

• C-axis main spindle: 360° resolution 0.001°

• C-axis speed: 200 rpm

• C-axis torque: approx. 1162 Nm

• Swing diameter over bed: 720 mm

• Swing diameter over cross slide: 590 mm

• Max turning diameter: 376 mm

• Max turning length: 725 mm

• Main spindle bore: 115 mm

• Bar capacity: 103 mm

• Spindle nose: ASA A2-11

• Max torque: approx. 1112 Nm

• Rapid traverse X-axis: 24 m/min

• Rapid traverse Z-axis: 30 m/min

• Feed force X-axis: 9465 N

• Feed force Z-axis: 17379 N

• Three-jaw power chuck diameter: 305 mm with soft jaws

• 12-station tool turret with BMT65P tool holders

• Max driven tool speed: 5000 rpm

• Driven tool power: approx. 7.7 kW

• Driven tool torque: approx. 75 Nm

• Tailstock with quill diameter: 100 mm

• Quill stroke: 100 mm

• Hydraulic clamping system with hollow cylinder

• Monoblock cast iron machine bed, Meehanite construction

• 30° slant bed design

• Hardened and ground guideways with low-friction coating

• Automatic central lubrication

• Coolant system: 7 bar pressure

• Coolant tank capacity: approx. 235 liters

• Hydraulic tank: approx. 20 liters

• Full enclosure with working area lighting

• Bar feeder interface

• Oil skimmer

• Electronic safety clutch for X and Z axes

• Electrical connection: 400 V, 3-phase, 50 Hz

• Total power: approx. 47 kVA

Additional equipment

• OPTIONAL: HALTER LoadAssistant Universal Big 70 (robot)

  • Gripper for Doosan Universal Big 70

  • Turning station

  • Workpiece support

  • Base plate 23 mm / 175 mm Big 70

  • Machine interface box
