DOOSAN - PUMA GT2600LMIT-TUR-DOO-2017-00004
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- DOOSAN PUMA GT2600LM (2017) Lathe
Show in original language

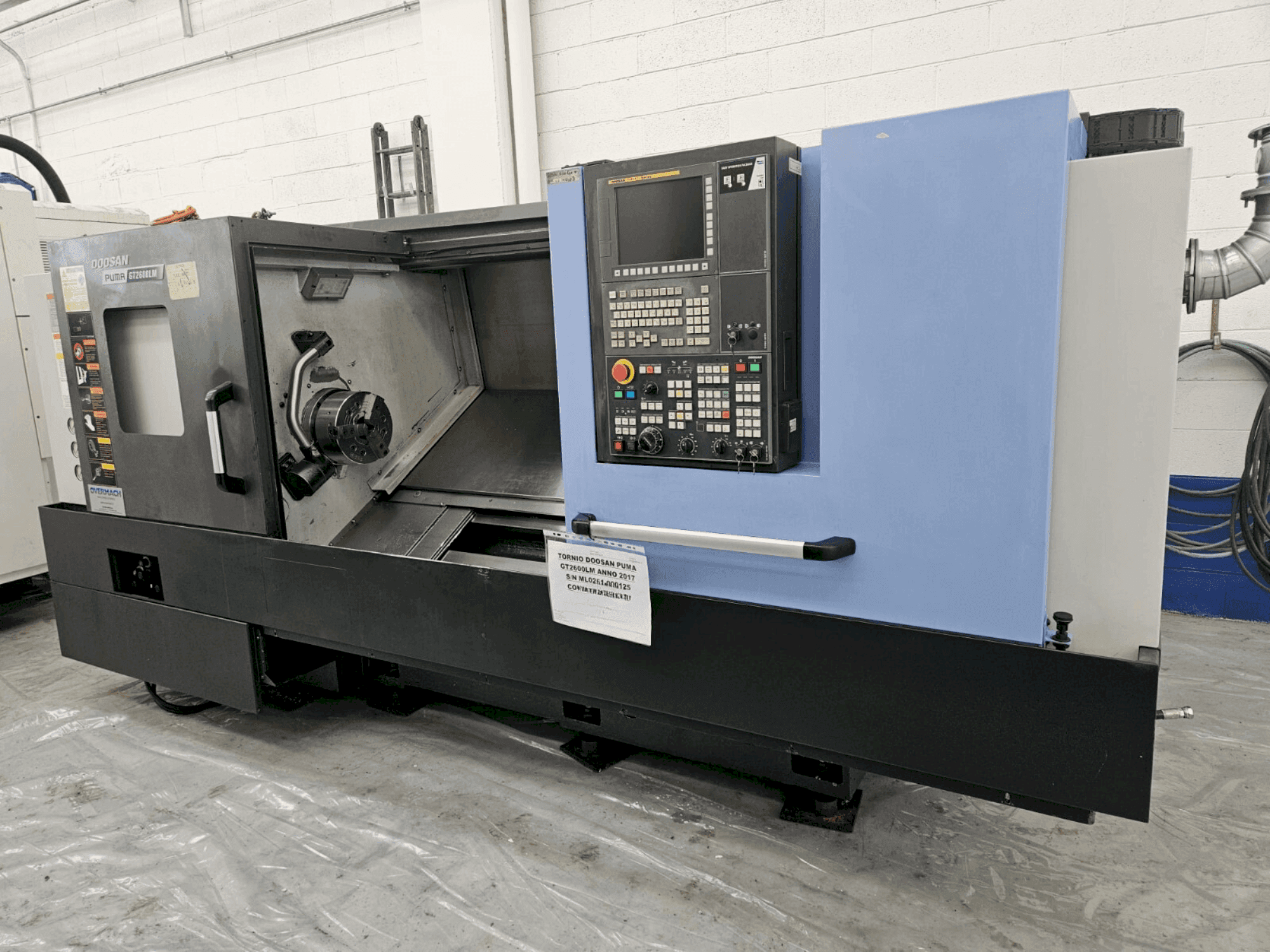

This DOOSAN PUMA GT2600LM Lathe was manufactured in 2017. It is equipped with a belt Spindle which has 3500 r/min. The machine has a turret with 12 stations.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: PUMA GT2600LM
- production hours: 2965
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN PUMA GT2600LM
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 3735 mm
- Machine Height: 1720 mm
- Machine Weight: 5900 kg
Movement
- Number of Axes: 3
- X-axis Travel: 265 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Spindle Speed: 3500 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Rotating diameter on the bench 630 mm // rotating diameter on the carriage 460 mm recommended turning diameter 255 mm
- Max turning diameter 410 mm // max turning length 1030 mm
- Bar diameter 81 mm
- Asa a2#8 spindle nose
- Spindle bearing diameter (front) 140 mm // spindle through hole diameter 91 mm // min. Spindle indexing angle (c axis) deg 0. 001deg
- Turret: tool external diameter size 25 mm // boring diameter 50 mm // indexing time (rotation time) s 0. 15 // motorized tool spindle speed r/min 5,000
- Rapid feed (x axis) m/min 24 // rapid feed (z axis) m/min 30
- Sleeve diameter 100 mm
- Mt#5 quill bore taper (motorized).
- Stub travel 100 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
