- ➤ Used DOOSAN T 3600 D For Sale | gindumac.com

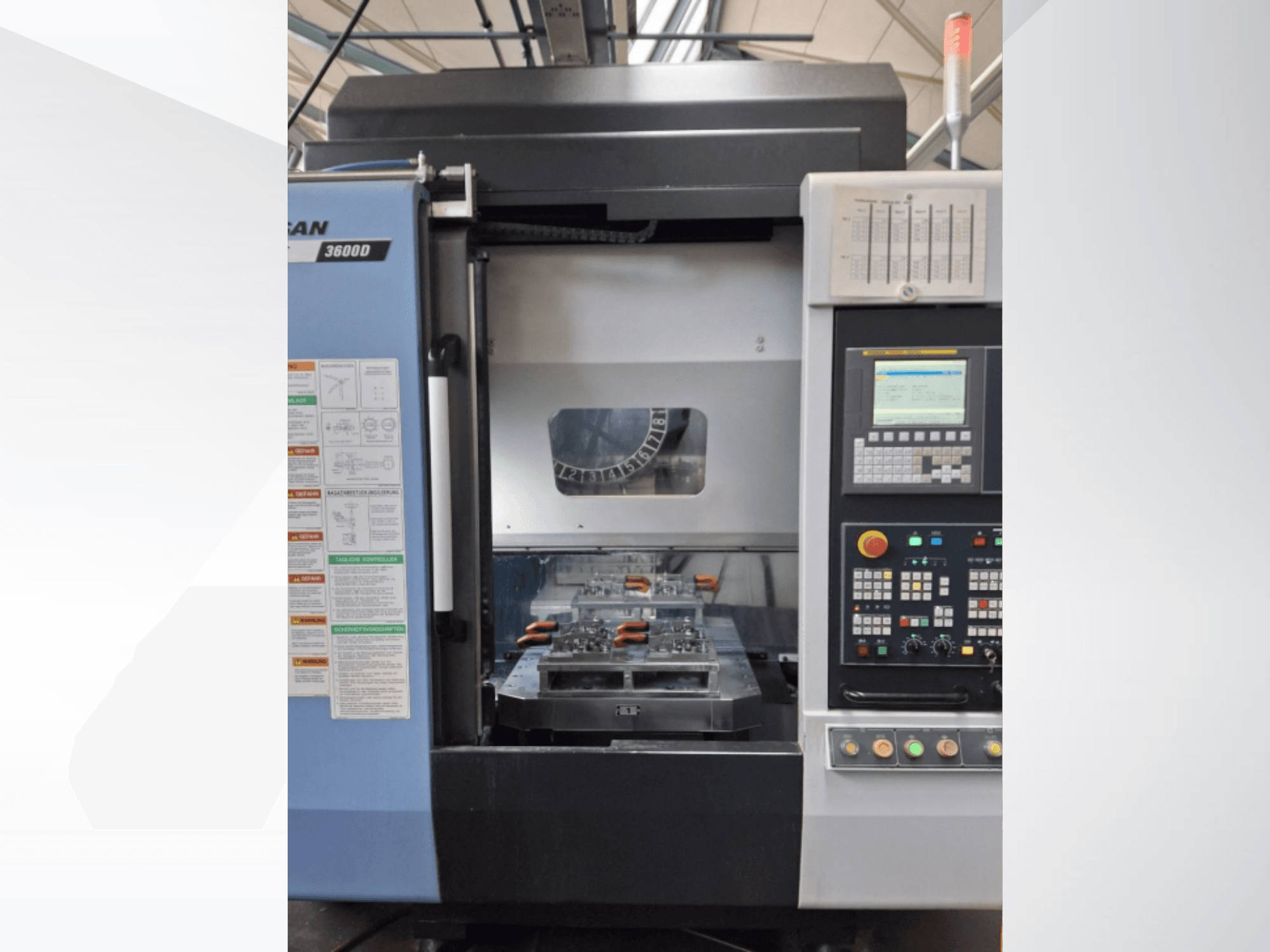

This 3-axis DOOSAN T 3600 D was manufactured in 2018. It features an X-axis travel of 520 mm, Y-axis travel of 360 mm, and Z-axis travel of 350 mm. The machine includes a table size of 2x 650 x 375 mm with a loading capacity of 2x 200 kg. If you are looking to get high-quality vertical turning capabilities, consider the DOOSAN T 3600 D machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: T 3600 D
- production hours: 4493
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN T 3600 D
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Height: 2507 mm
- Machine Length: 3230 mm
- Machine Weight: 5200 kg
- Machine Width: 1620 mm
- Table Load: 200 kg
Movement
- Number of Axes: 3
- X-axis Travel: 520 mm
- Y-axis Travel: 360 mm
- Z-axis Travel: 350 mm
Technical Specification
- Driven Tools: No
- Max. Tool Weight: 2.8 kg
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
Additional Information
- Controlled Axes: 3 (X, Y, Z)
- Distance from Spindle Nose to Table Top: 150-500 mm
- Table Size: 2x 650 x 375 mm (Pallet changer system)
- Table Loading Capacity: 2x 200 kg
- Table Surface Type: T-Slot
- Spindle Taper: ISO #30 (BT30)
- Spindle Power: 13 kW (15 min) / 3.7 kW (Continuous)
- Max. Spindle Torque: 82.7 N-m
- Rapid Traverse Rate (X / Y / Z): 48 / 48 / 56 m/min
- Tool Storage Capacity: 21 stations (Upgraded from standard 14)
- Max. Tool Diameter (With / Without Adjacent Tools): 80 mm / 150 mm
- Max. Tool Length: 200 mm
- Tool Change Time (Tool-to-Tool / Chip-to-Chip): 1.45 sec / 2.22 sec
- Main Power Supply: AC 380V, 3-Phase, 50/60Hz
- Rated Power Capacity: 19.01 kVA
- Full Load Current: 32.05 A
- Compressed Air Supply: 0.54 MPa
- Coolant Tank Capacity: 200 L (Base) / 270 L
- Control System Power-On Time: 15,979 Hours
- Machine Operating Time: 14,317 Hours
- Actual Machining Time: 4,493 Hours
- Total Completed Workpieces: 2,460,030 ea
- Internal High-Pressure Cooling: 20 bar
- Coolant Pump Delivery Pressure: 4.5 bar (1.1 kW, 30 l/min KSS Pump)
- Additional Equipment: Enclosed top machine cover (Top-cover), Oil skimmer, Pneumatic clamping preparation (1 pair per pallet), Automatic workspace door with safety edge, 3-color status signal tower, Workspace lighting, Rigid tapping function, Workpiece coordinate system addition (G54.1 P1-48)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
